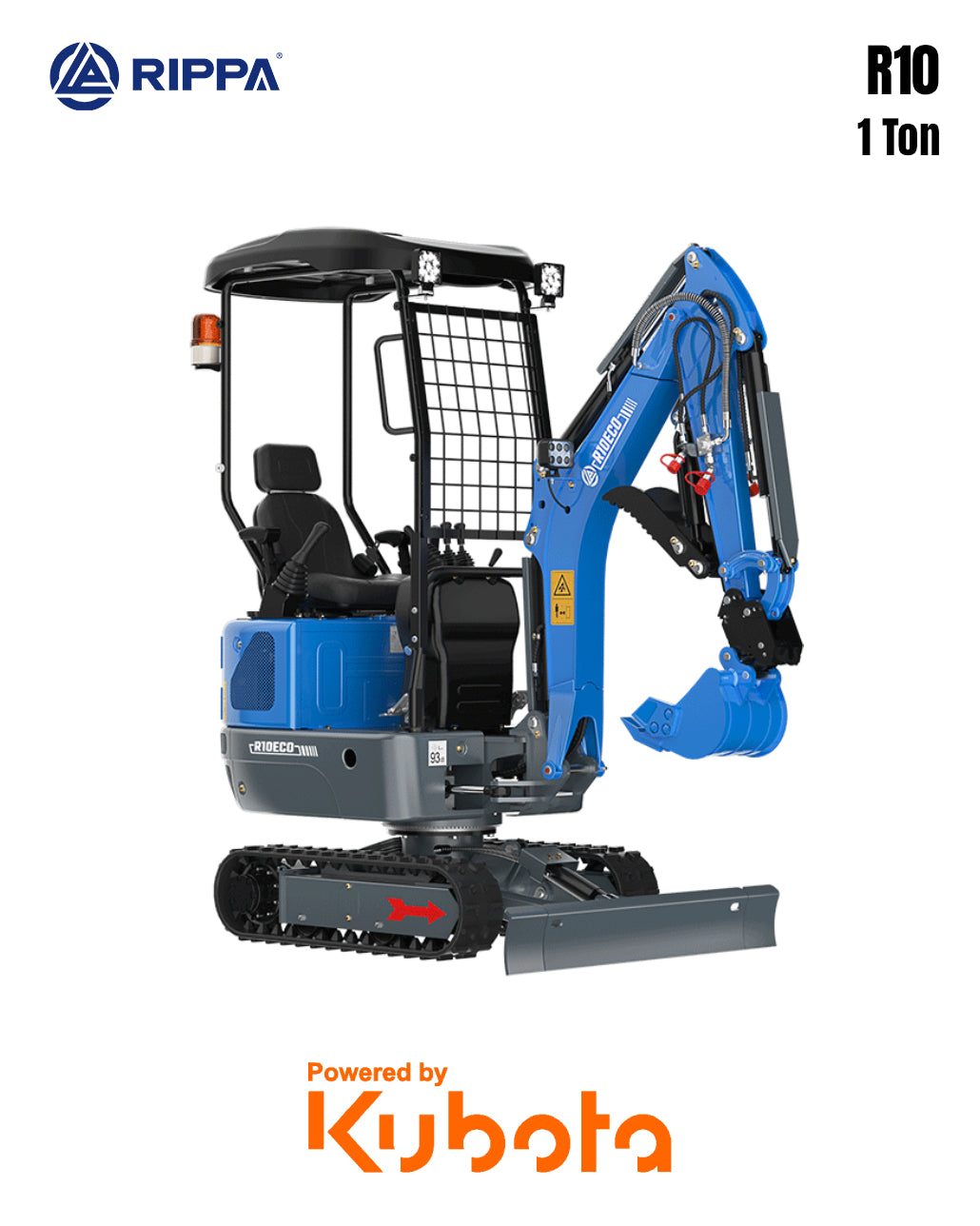

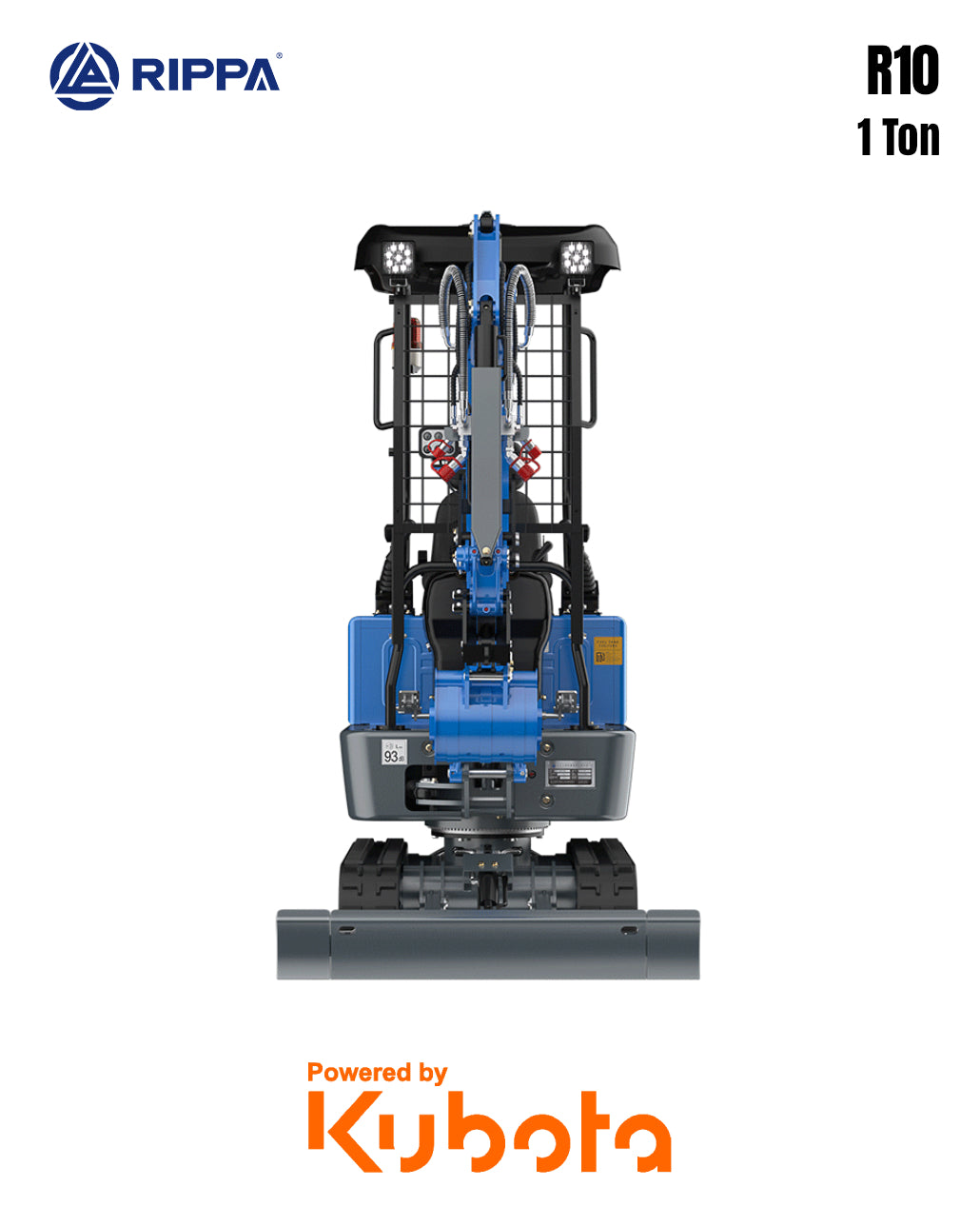

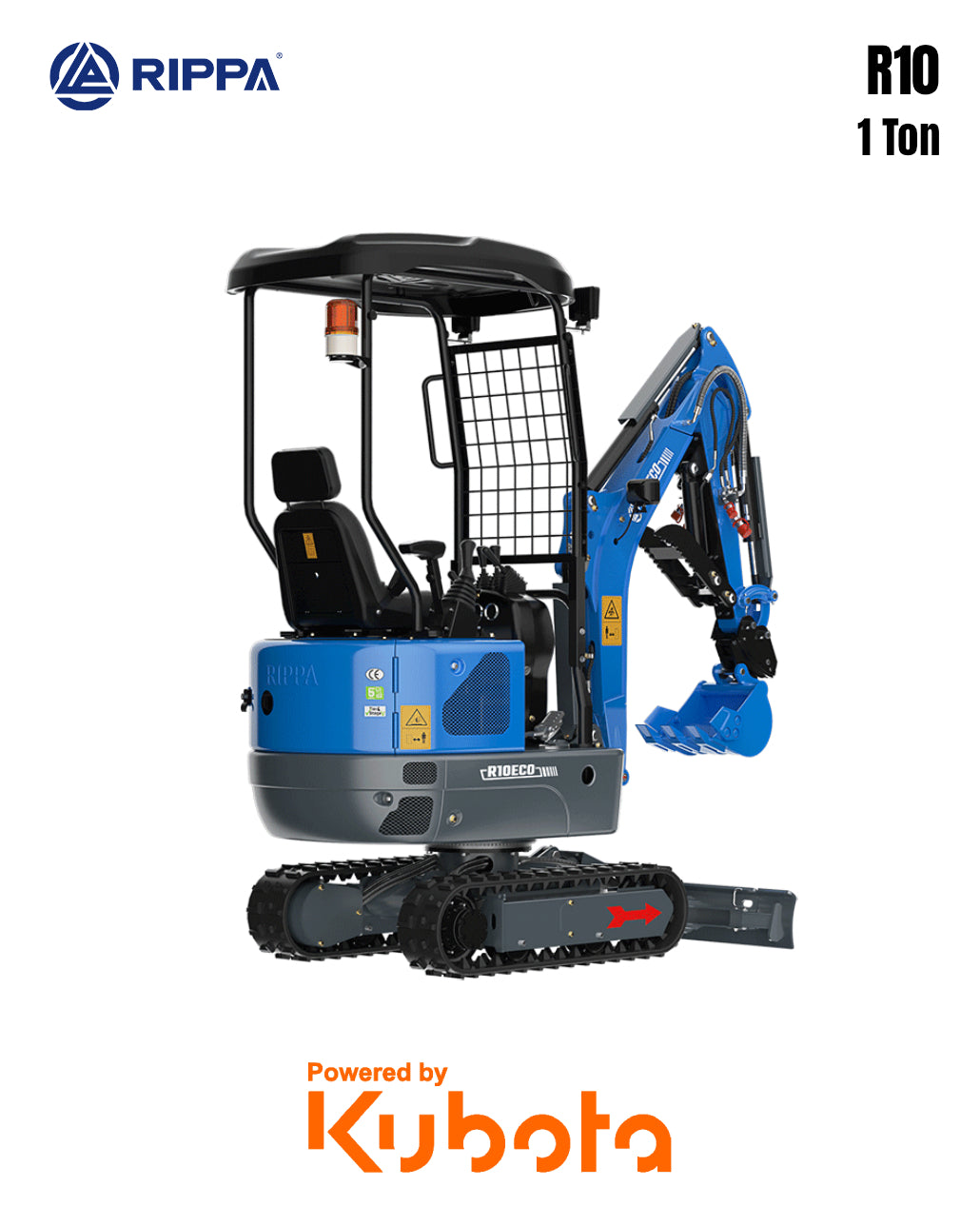

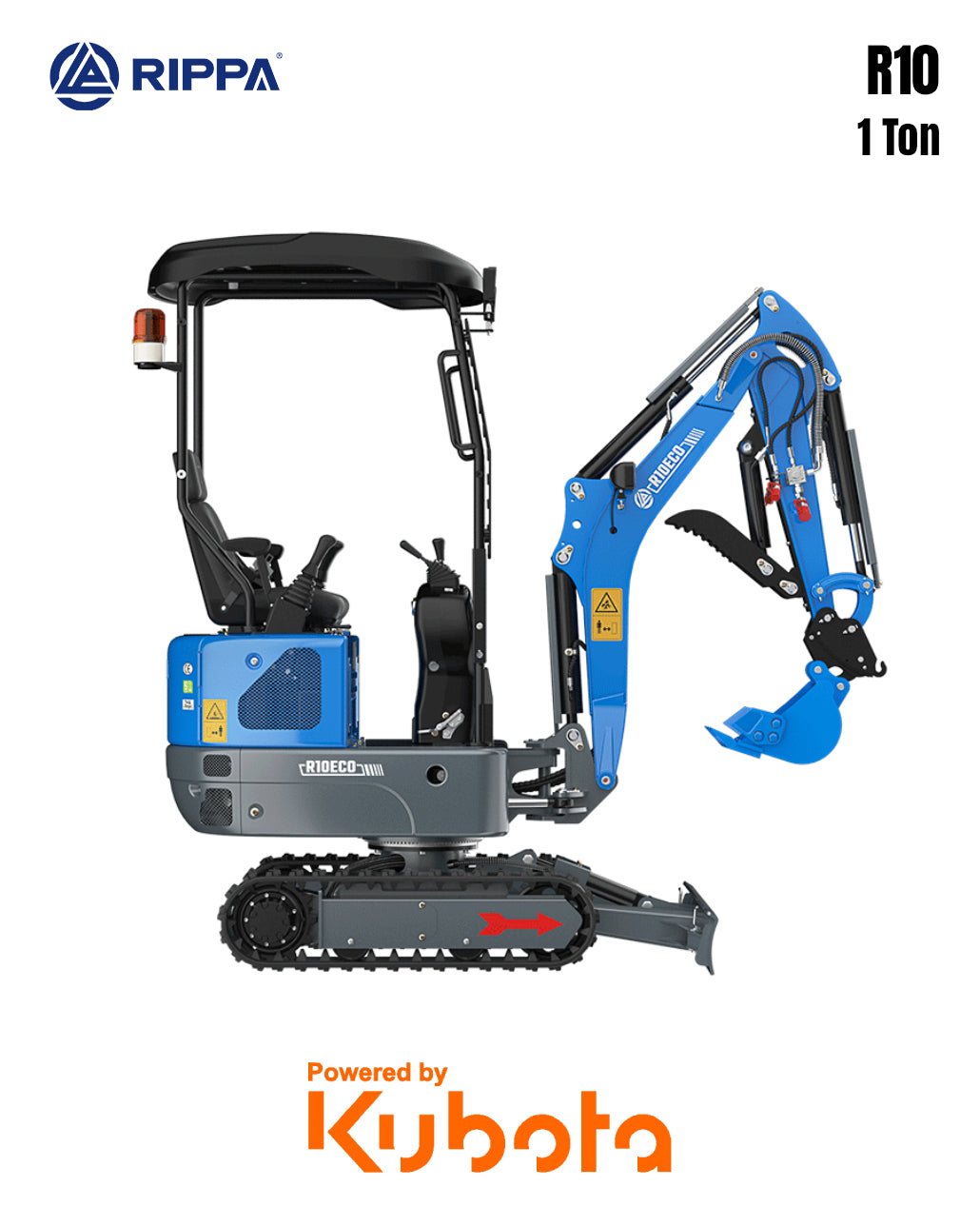

R10 1 Ton Mini Excavator
For a commercial-grade Kubota-powered machine, you can't look past Rippa.
Digger World is proudly now supplying the latest Rippa models throughout Aus & NZ.
All Rippa models come with a commercial build quality and features that other brands simply do not offer in their mini excavator ranges.

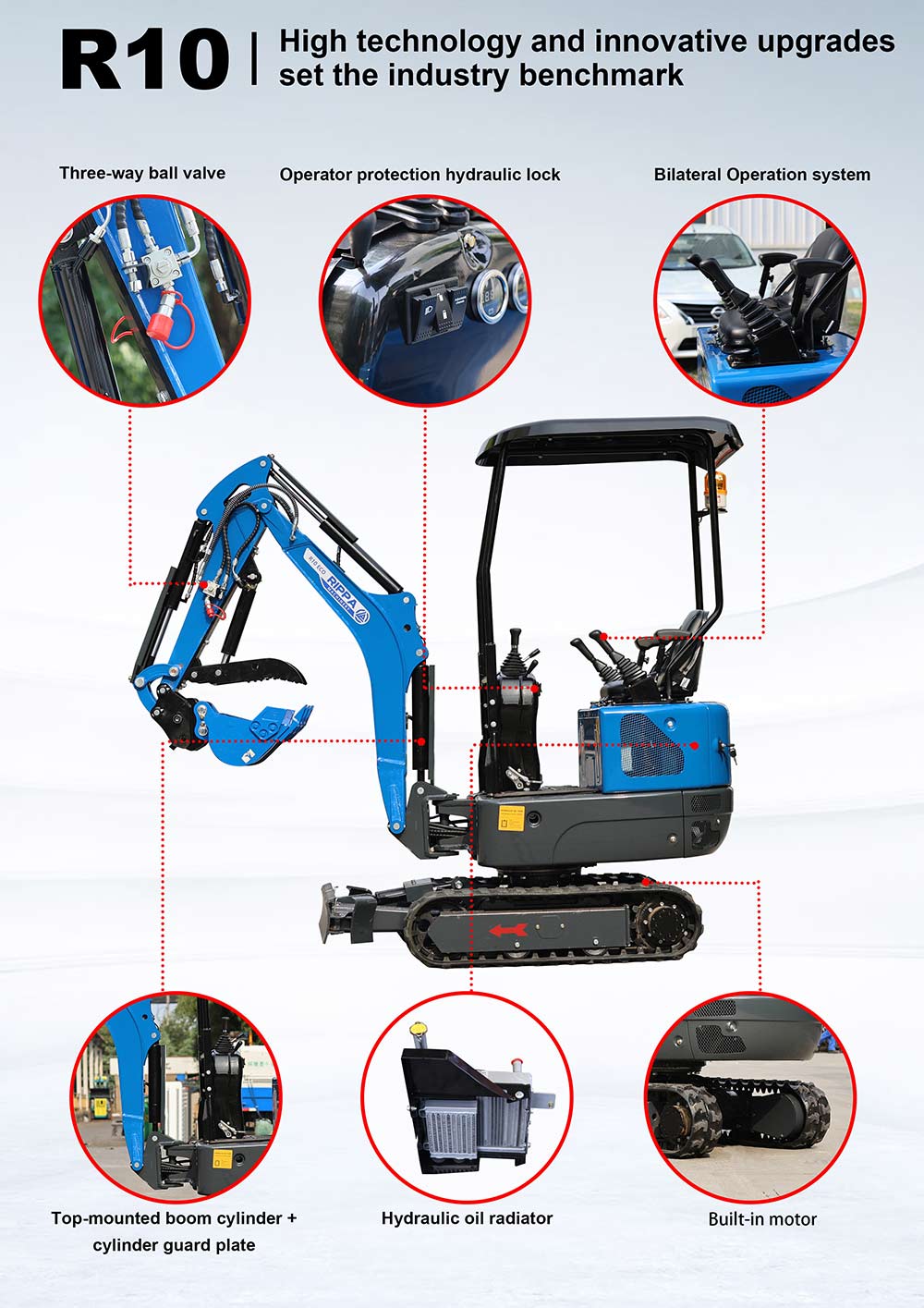

R10 Latest Model Features:
- Kubota Engine
- Independent Boom Swing
- Telescopic Tracks
- Hydraulic Side Piloting
- Headlights
- Safety Cage
- Safety Warning Light
Comes With:

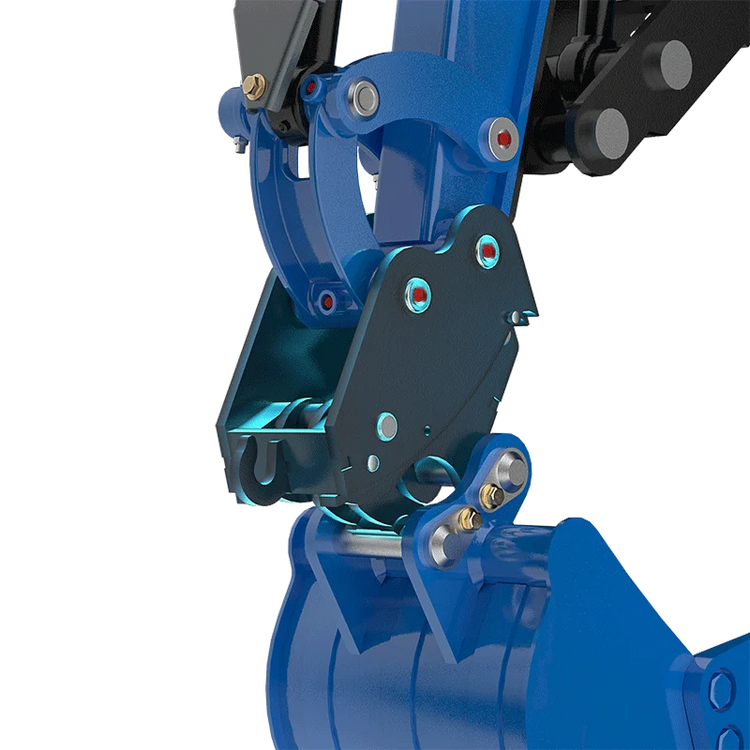

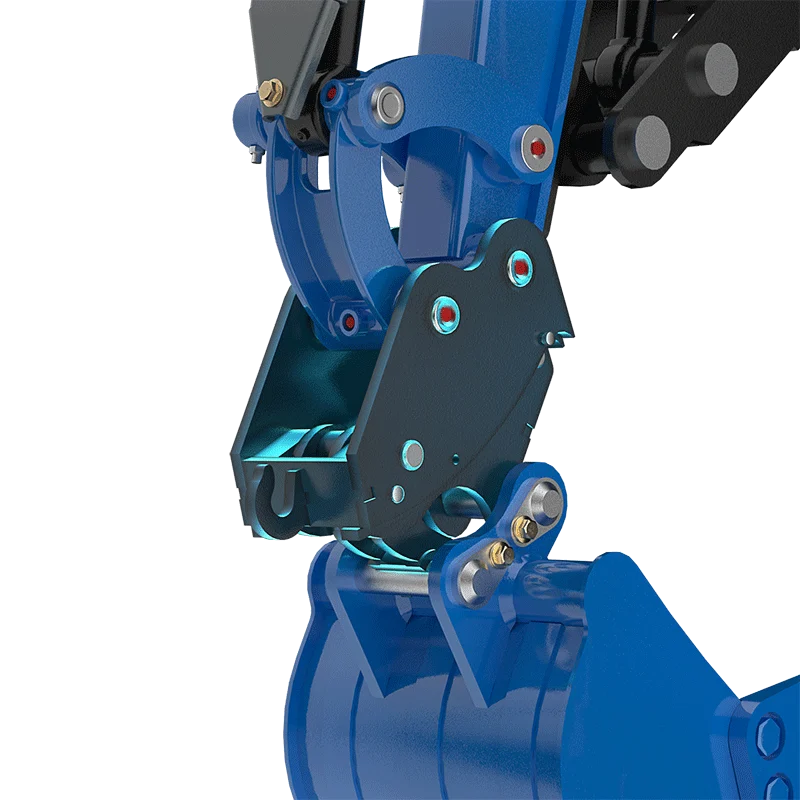

- Hydraulic Quick Hitch

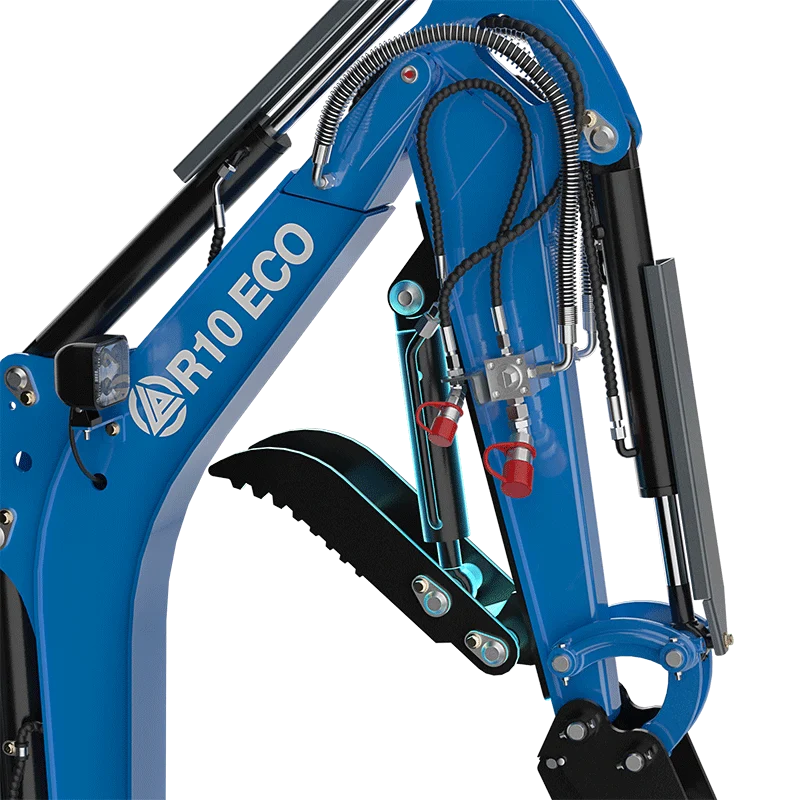

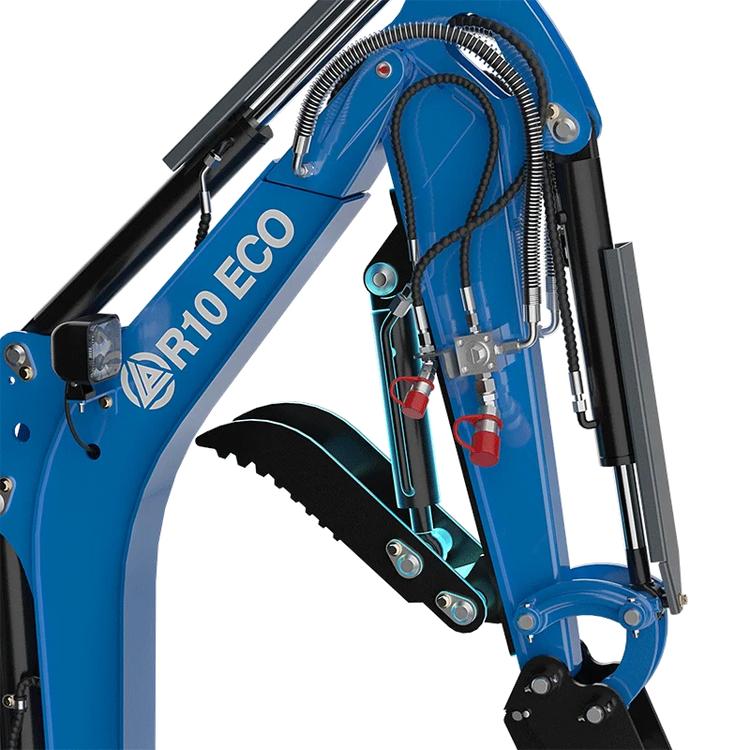

- Hydraulic Thumb
- Toothed Bucket: 300mm
- Toolbox - Basic Tools, Air Filters, Grease Gun
- Operation and Service Manual
Delivery Included
Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery section for more details.

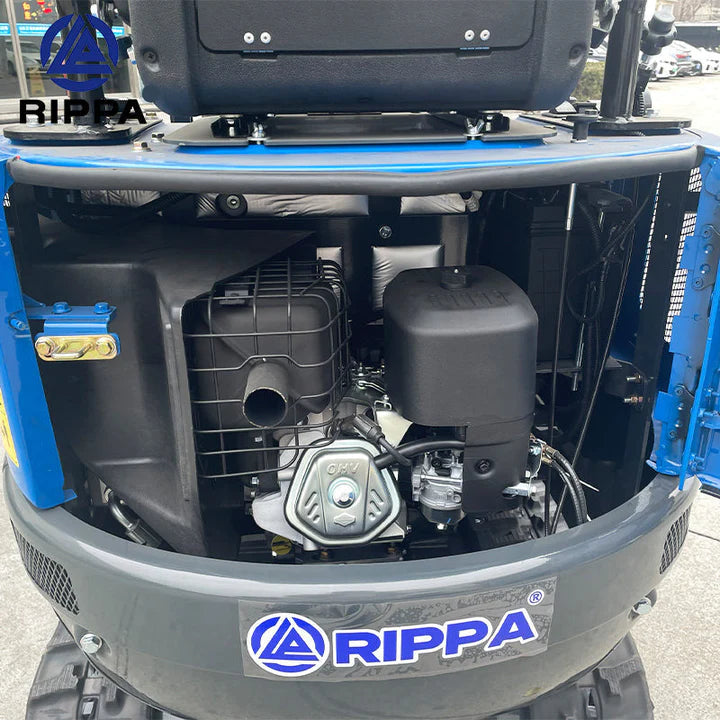

1. Engine
The R10 is equipped with a Kubota Japanese engine with Australia wide warranty, delivering 8.2 kW (11.23 HP) at 3000 RPM.
- Kubota Z482 – 2-cylinder, water-cooled diesel engine
- Displacement: 0.479 L
- Oil Capacity: 1.2 L
- Aus & NZ nationwide parts access
2. Fuel
- Fuel Type: Diesel
- Fuel Grade: 0# or -10#
- Fuel Tank Capacity: 5.5 L
- Hydraulic Oil Tank: 12.5 L
3. Performance
- Operating Weight: 1000 kg
- Bucket Capacity: 0.014 m³
- Travel Speed: 0–1.5 km/h
- Ground Pressure: 25.53 KPa
- Climbing Ability: 30%
- Digging Force: 9.2 kN
- Max Digging Distance: 3233 mm
- Max Digging Depth: 1833 mm
- Max Dump Height: 2247 mm
- Max Digging Height: 3021 mm
- Track Width Adjustment: 912–1212 mm
4. Other Specs
- Hydraulic Pump: Gear pump – Tianjin Walking / Shengjie (Model 306)
- Max Flow: 18 L/min
- Rated Pressure: 18 MPa | Max: 20 MPa
- Multi-Way Valve: 2+2+5 joints – Tengfei
- Travel Motor: BM6-315
- Swing Motor: BM2-315
- Chassis: Rubber Tracks
- Track Tensioning: Mechanical
- Dimensions:
Length: 2430 mm
Width: 912 mm
Height: 2201 mm
Ground Clearance: 361 mm
Blade Width: 912–1212 mm
5. Shipping Time
Approximately 4-5 weeks from payment to delivery for most metro locations in Aus & NZ.
Please contact us if you wish to check your specific location.
6. Warranty
All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.
