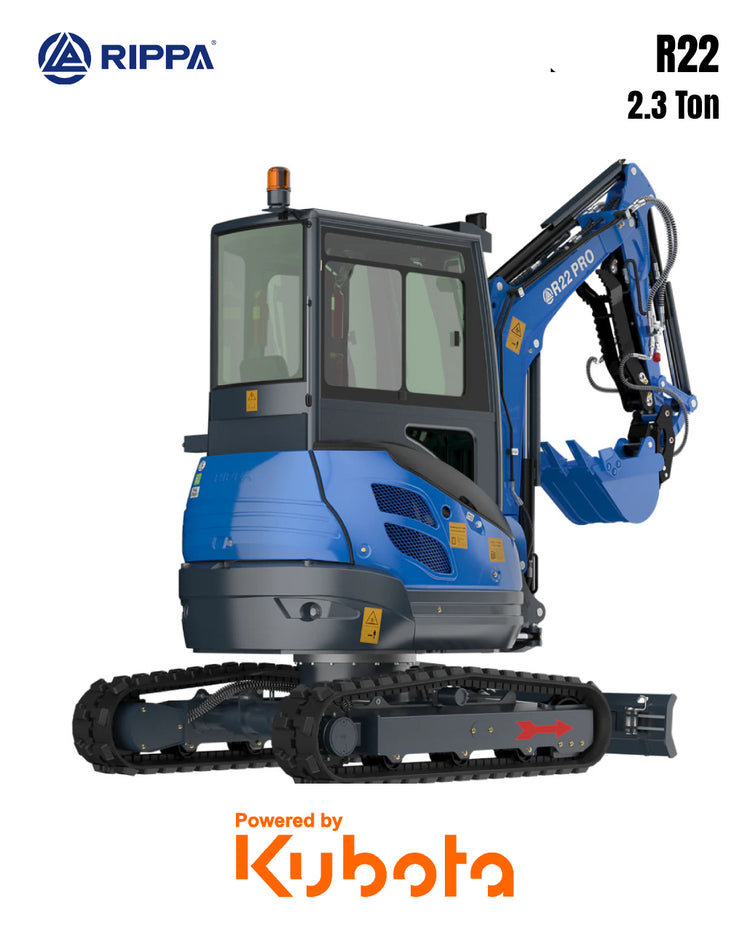

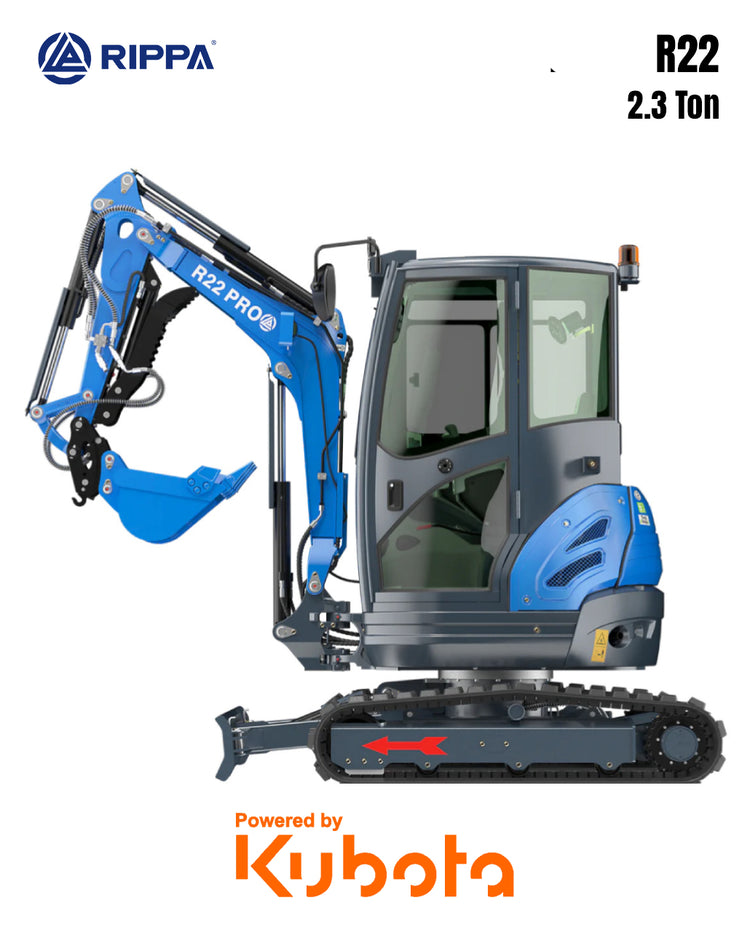

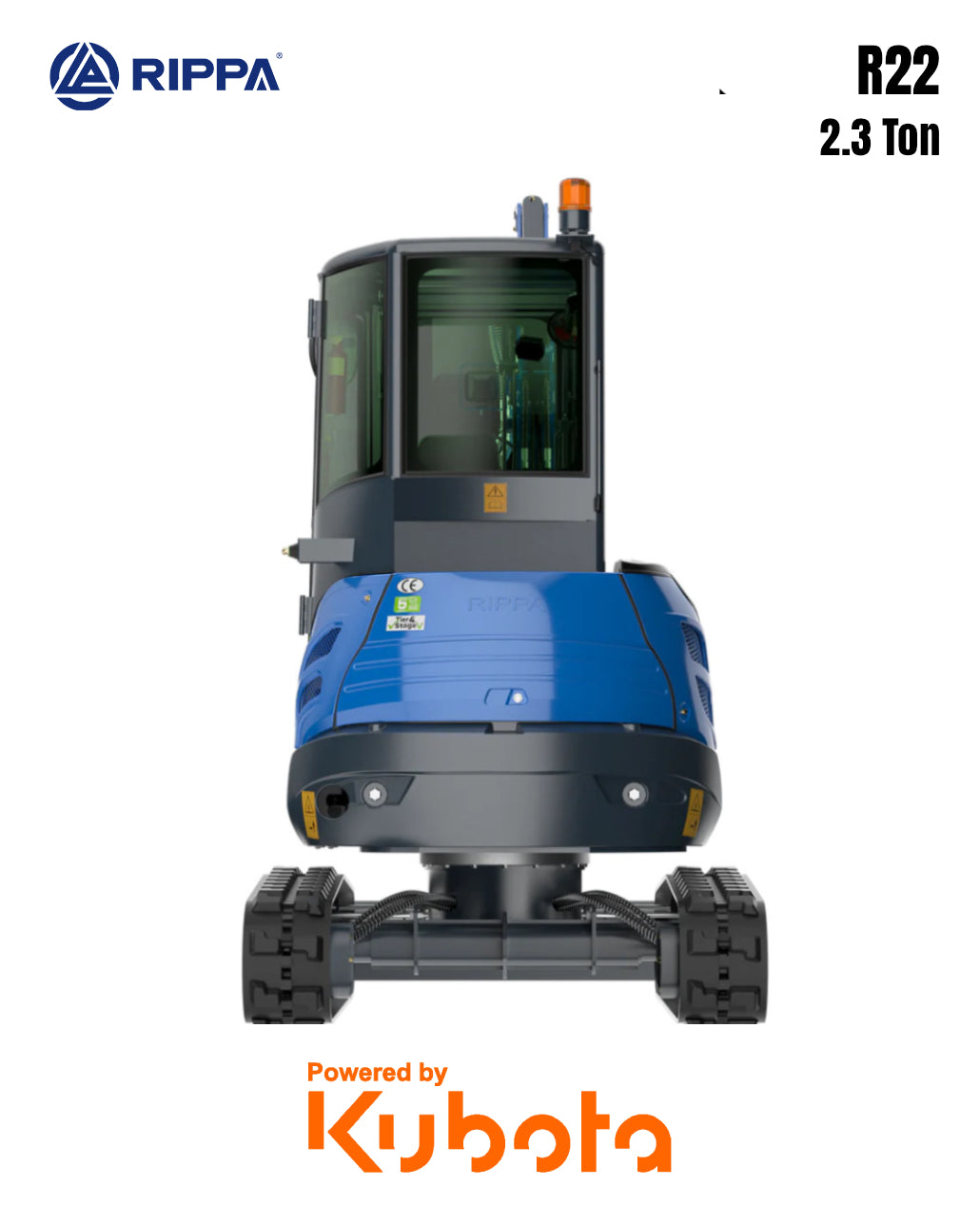

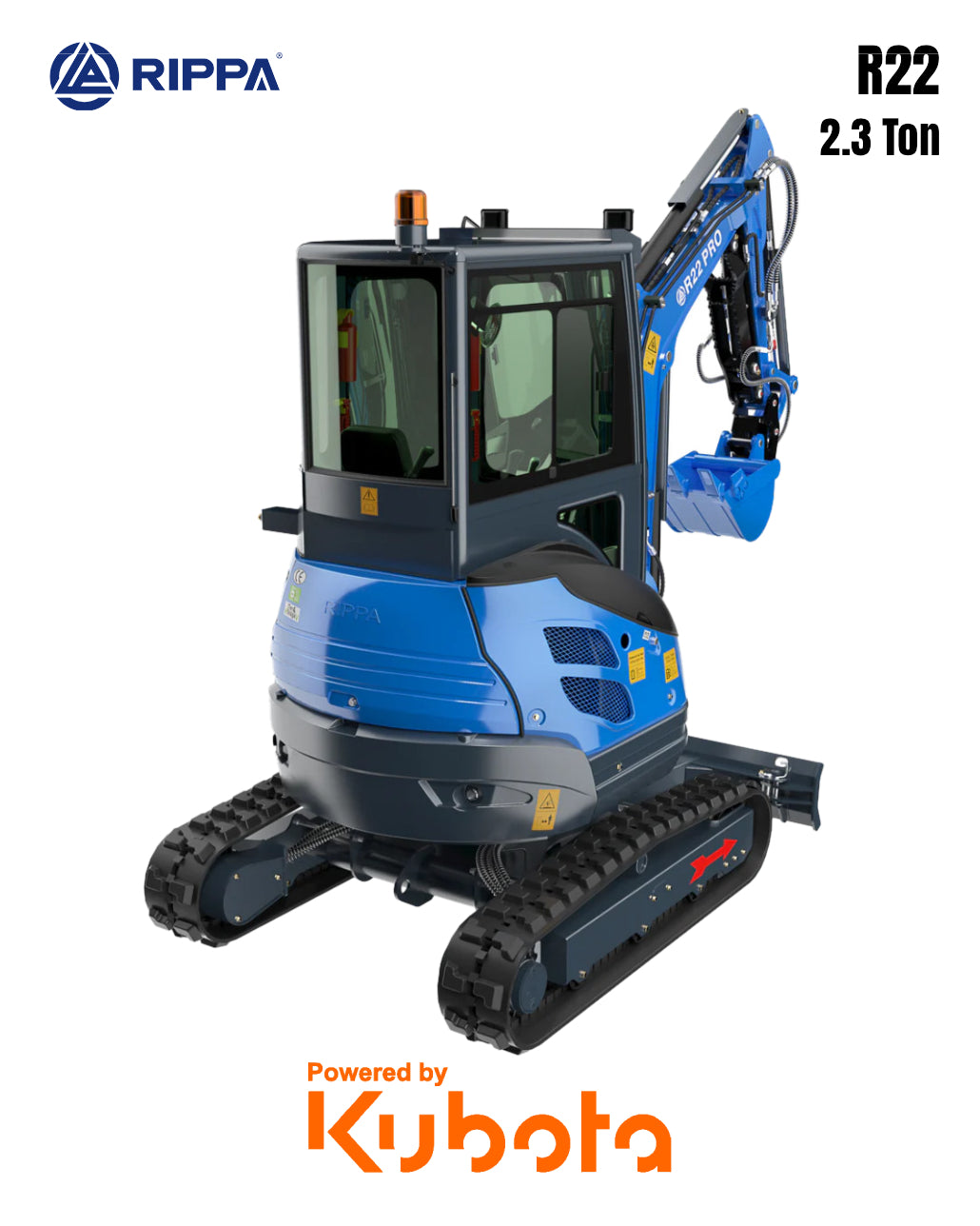

R22 Mini Excavator

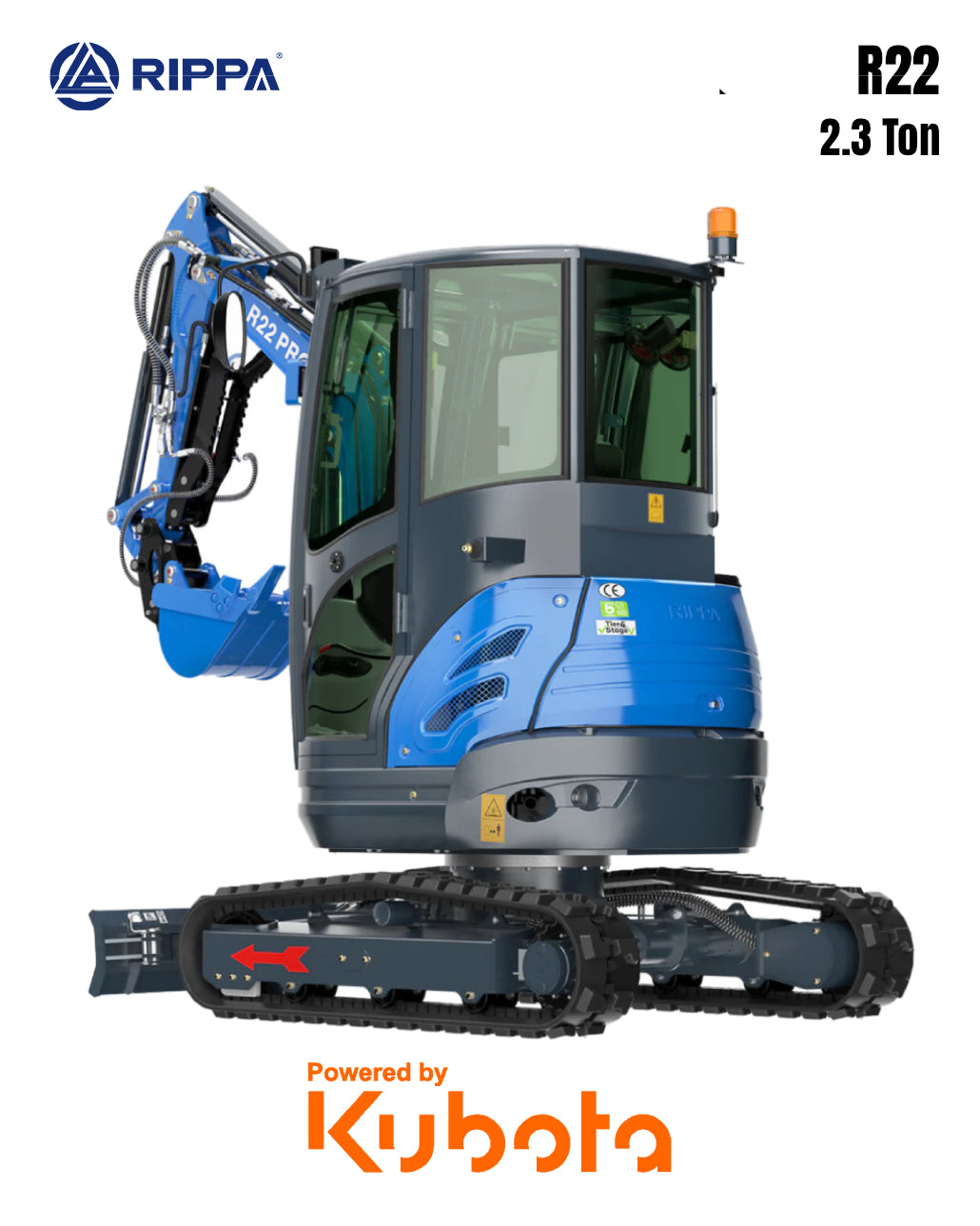

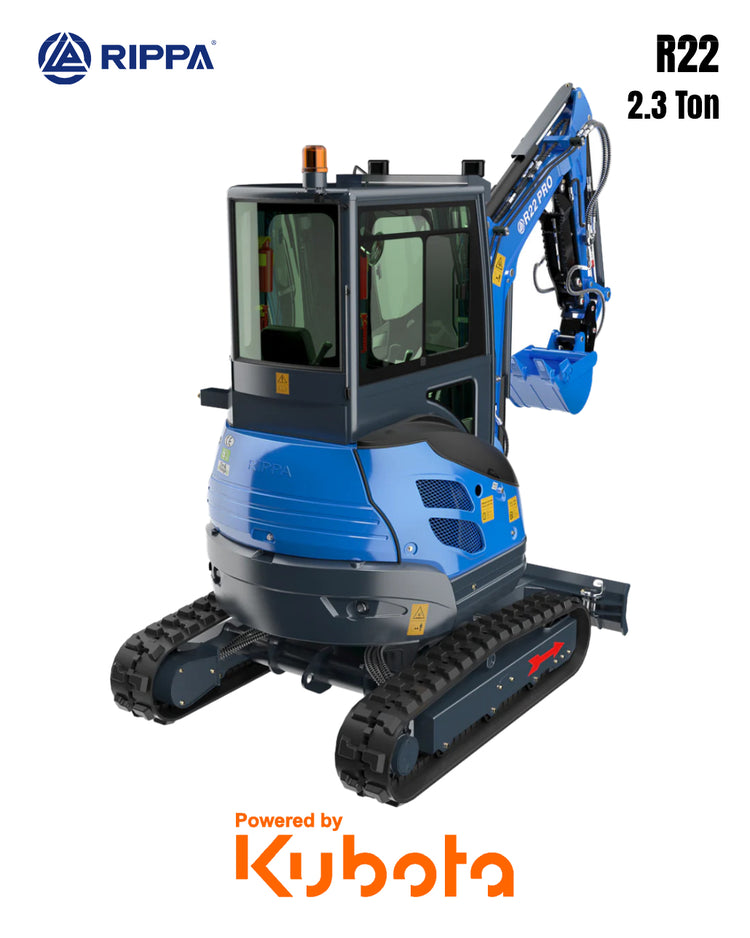

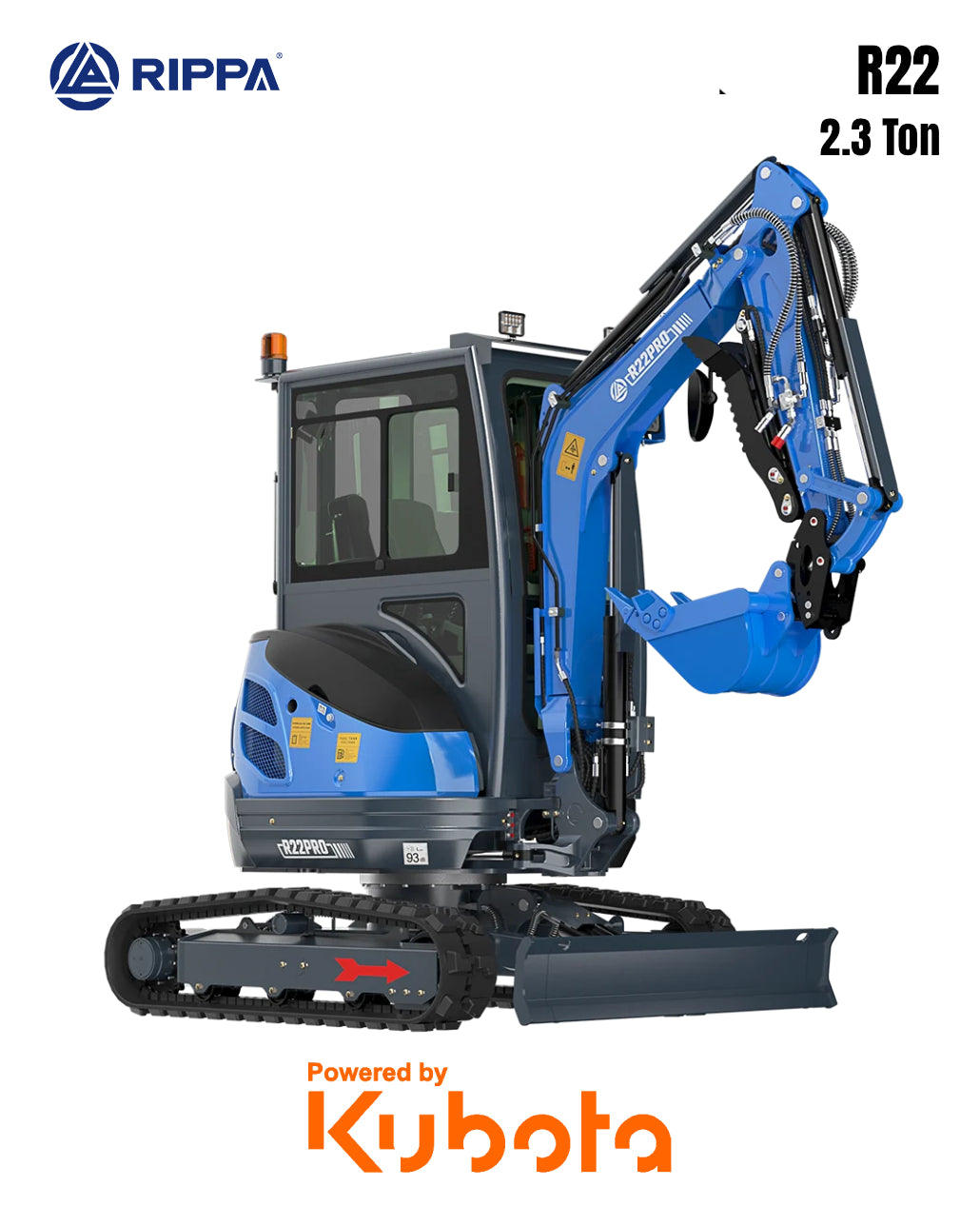

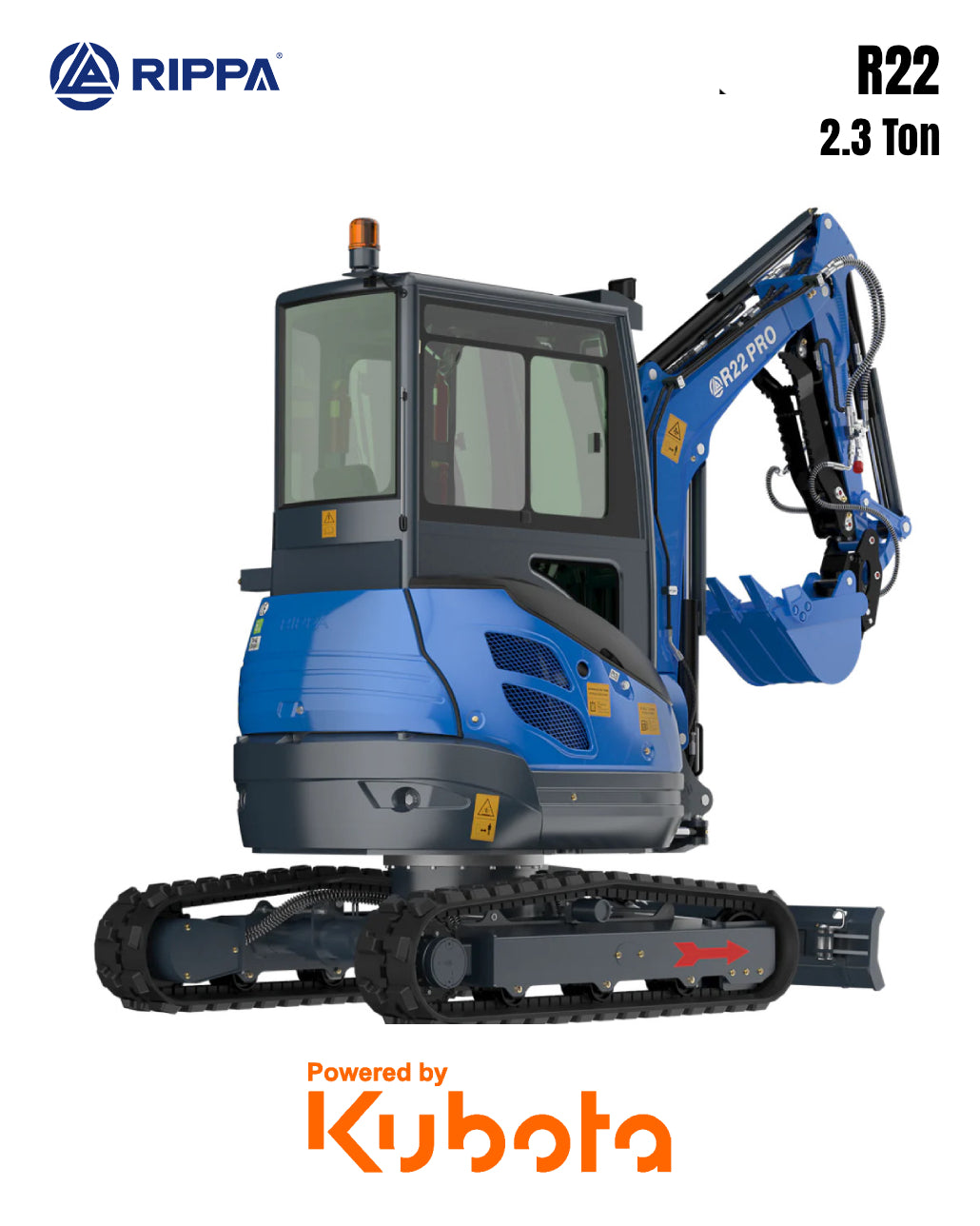

R22 2.3 Ton Mini Excavator

For a commercial-grade Kubota-powered machine, you can't look past Rippa.
Digger World is proudly now supplying the latest Rippa models throughout Aus & NZ.
All Rippa models come with a commercial build quality and features that other brands simply do not offer in their mini excavator ranges.

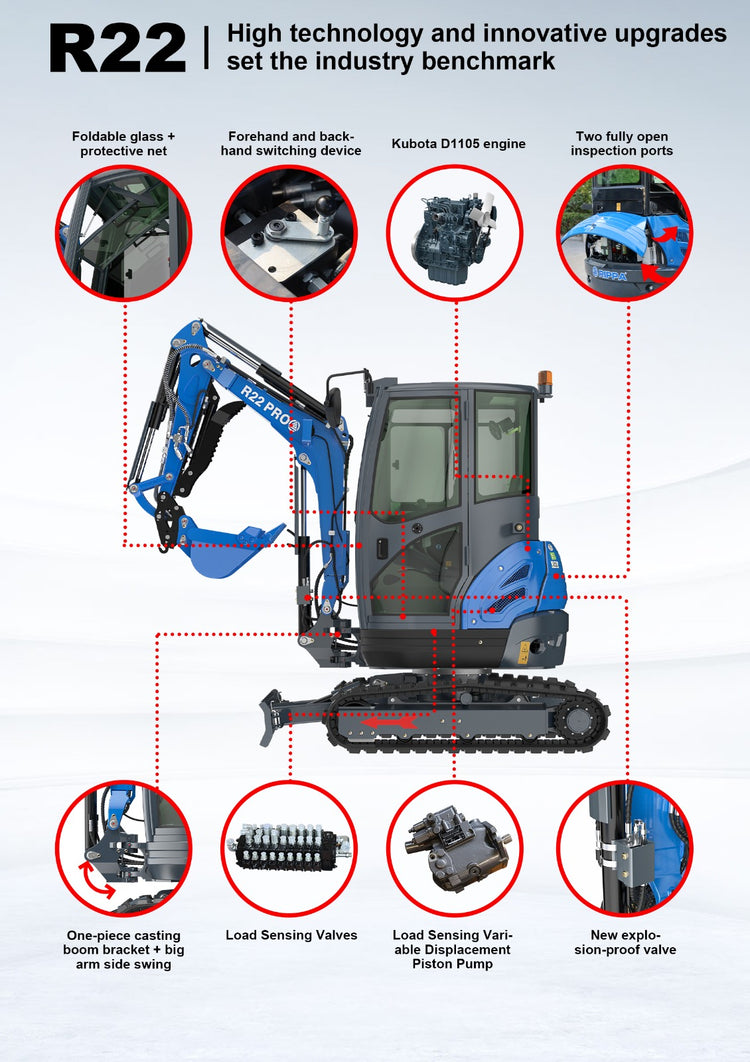

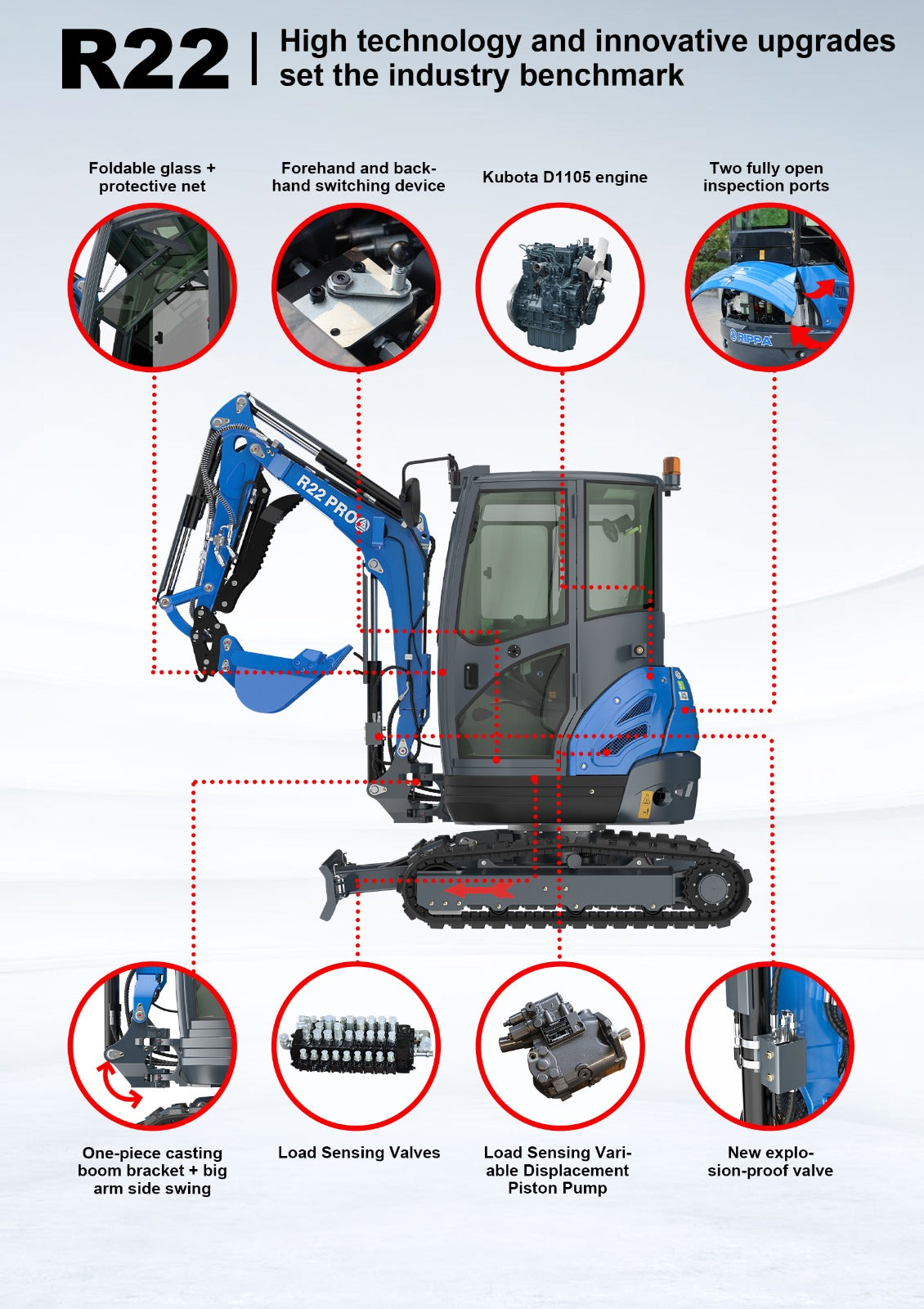

Latest Model R22 Features:

- Kubota Engine
- Independent Boom Swing
- Telescopic Tracks
- Hydraulic Side Piloting
- High & Low Travel Speeds

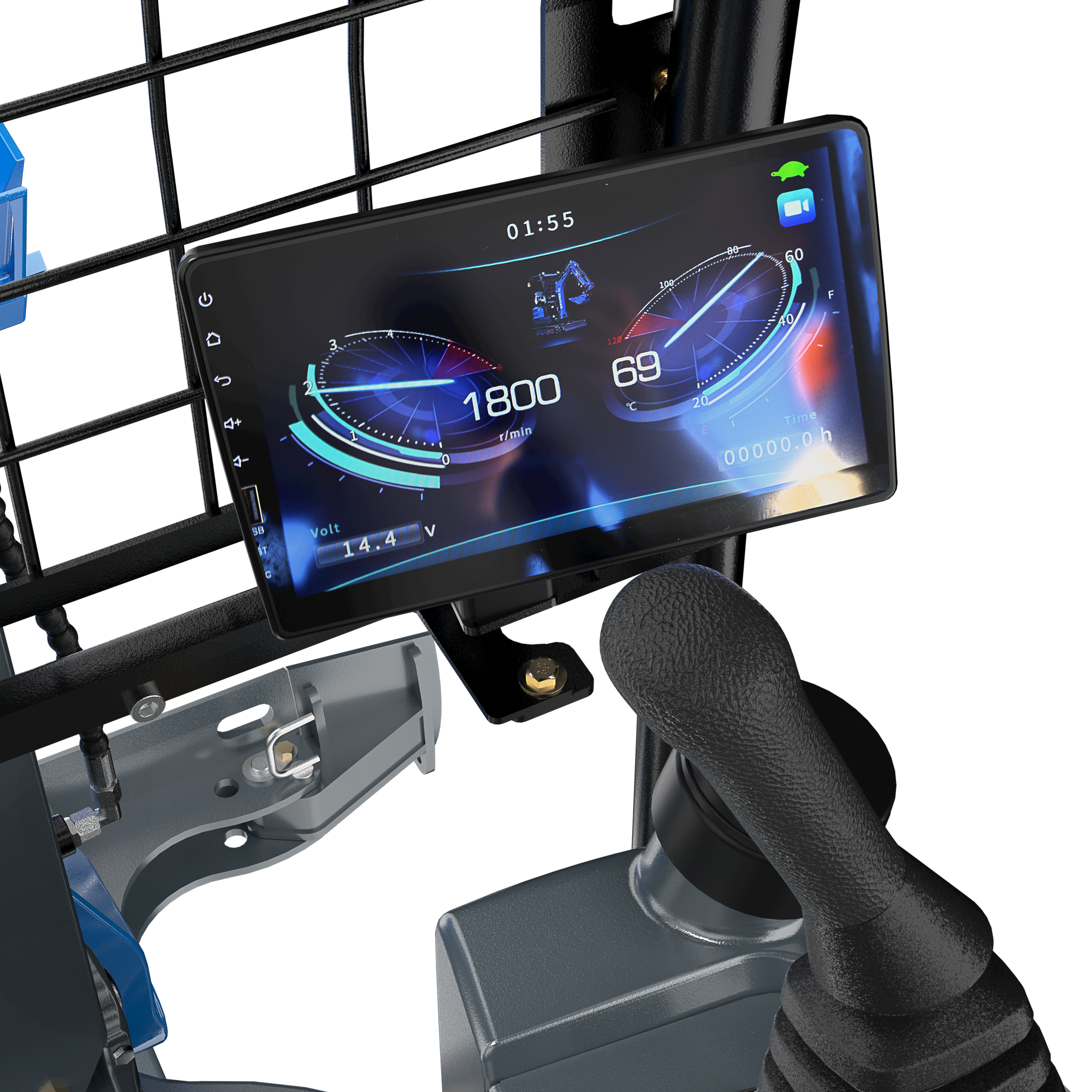

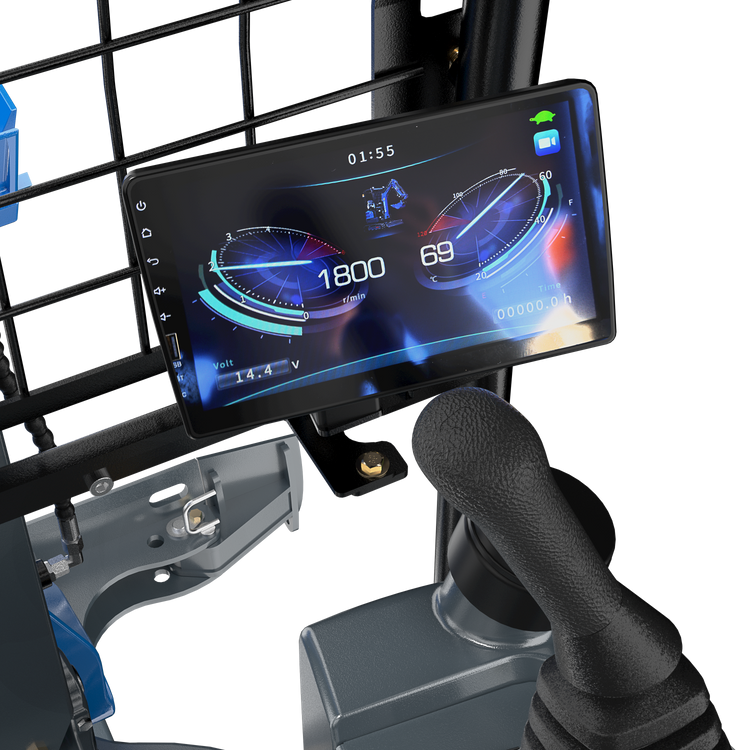

- Digital Screen Display
- Headlights

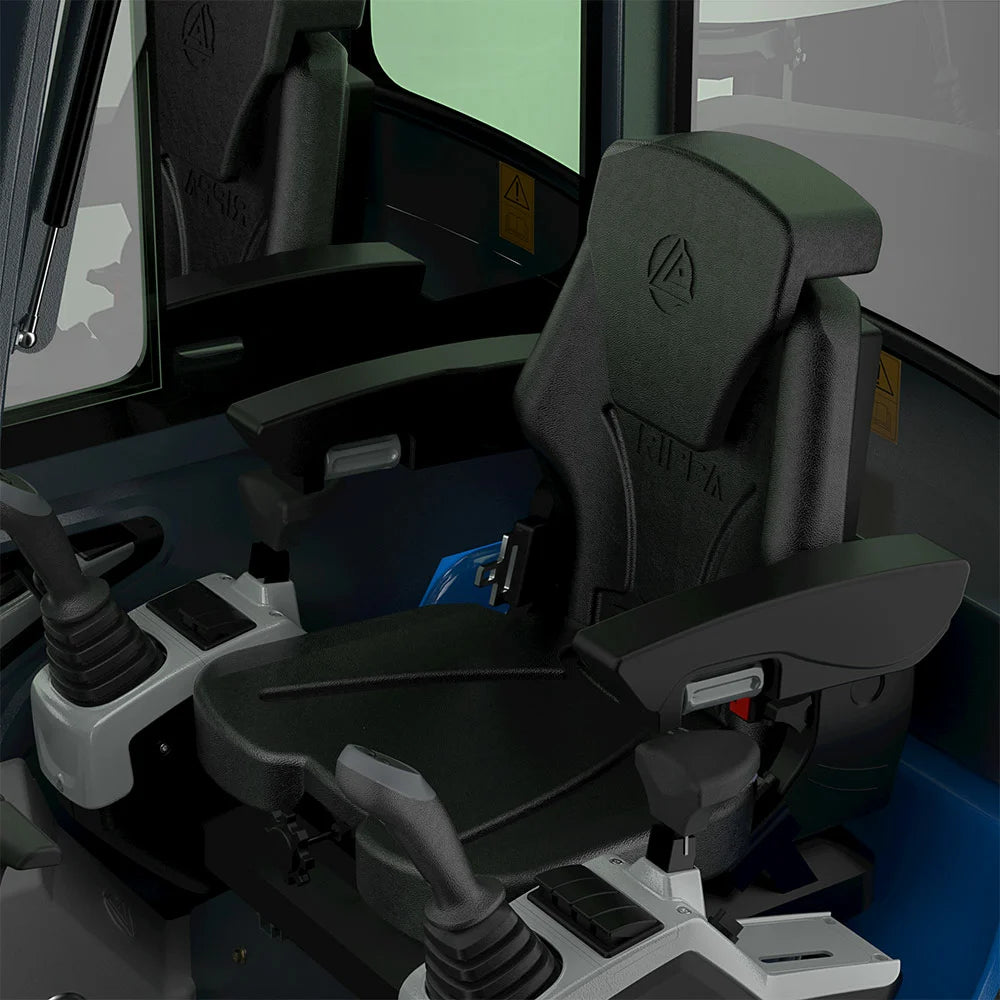

- Air-Conditioned Cab
- Opening Windshield
- Safety Warning Light
- Rubber Tracks

Comes With:

- Hydraulic Quick Hitch
- Hydraulic Thumb
- Toothed Bucket: 400mm
- Toolbox - Basic Tools, Air Filters, Grease Gun
- Operation & Service Manual
- Aus & NZ nation-wide parts access

Delivery Included

Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery tab for more details.

The R22 is equipped with a Kubota Japanese engine with Australia wide warranty, delivering 18.2 kW (24.75 HP) at 3000 RPM.

- Kubota D1105 – 3-cylinder, water-cooled diesel engine
- Displacement: 1.123 L
- Oil Capacity: 4.2 L
- Long service life, national parts access, and reliable support

2. Fuel

- Fuel Type: Diesel
- Fuel Grade: 0# or -10#
- Fuel Tank Capacity: 28 L
- Hydraulic Oil Tank: 24 L

3. Performance

- Operating Weight: 2400 kg
- Bucket Capacity: 0.054 m³
- Travel Speed: 0–1.5 / 0–2.8 km/h
- Ground Pressure: 33.4 KPa
- Climbing Ability: 30%
- Digging Force: 18.4 kN
- Max Digging Distance: 4143 mm
- Max Digging Depth: 2496 mm
- Max Dump Height: 2496 mm
- Max Digging Height: 3761 mm
- Track Width Adjustment: 1300–1500 mm

4. Other Specs

- Hydraulic Pump: Load-sensitive piston pump – Taifeng
- Max Flow: 67.2 L/min
- Rated Pressure: 18-20 MPa
- Multi-Way Valve: 9-way pilot – Taifeng
- Travel Motor: LTM03CDK – Likechuan
- Swing Motor: Likechuan
- Chassis: Rubber Tracks
- Track Tensioning: Grease/Butter tensioner
- Dimensions:

Length: 2824 mm
Width: 1300 mm
Height: 2361 mm
Ground Clearance: 510 mm
Blade Width: 1300 mm

5. Shipping Time

Approximately 4 weeks from payment to delivery for most metro locations in Aus & NZ.
Please contact us if you wish to check your specific location.

6. Warranty

All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructiions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.
