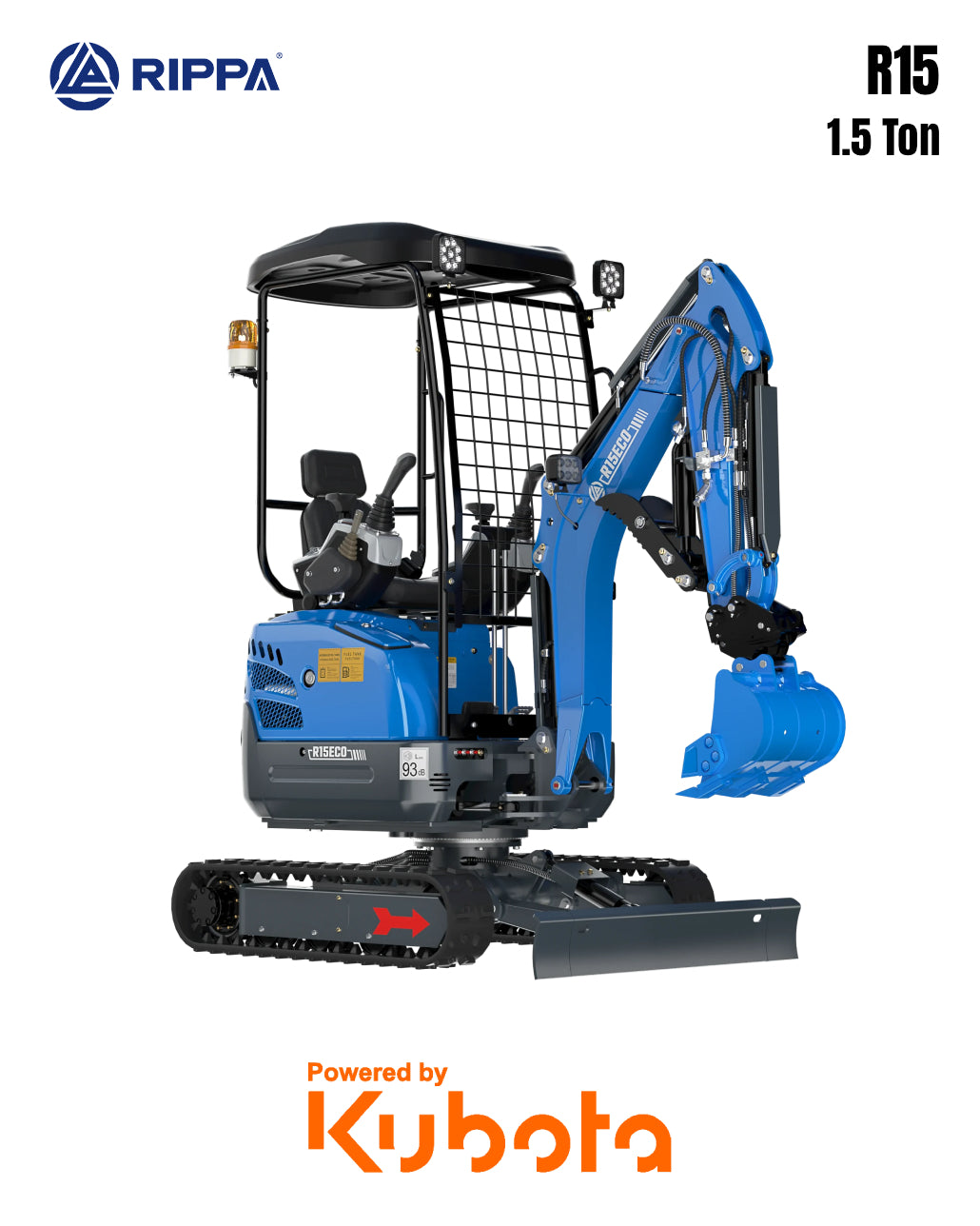

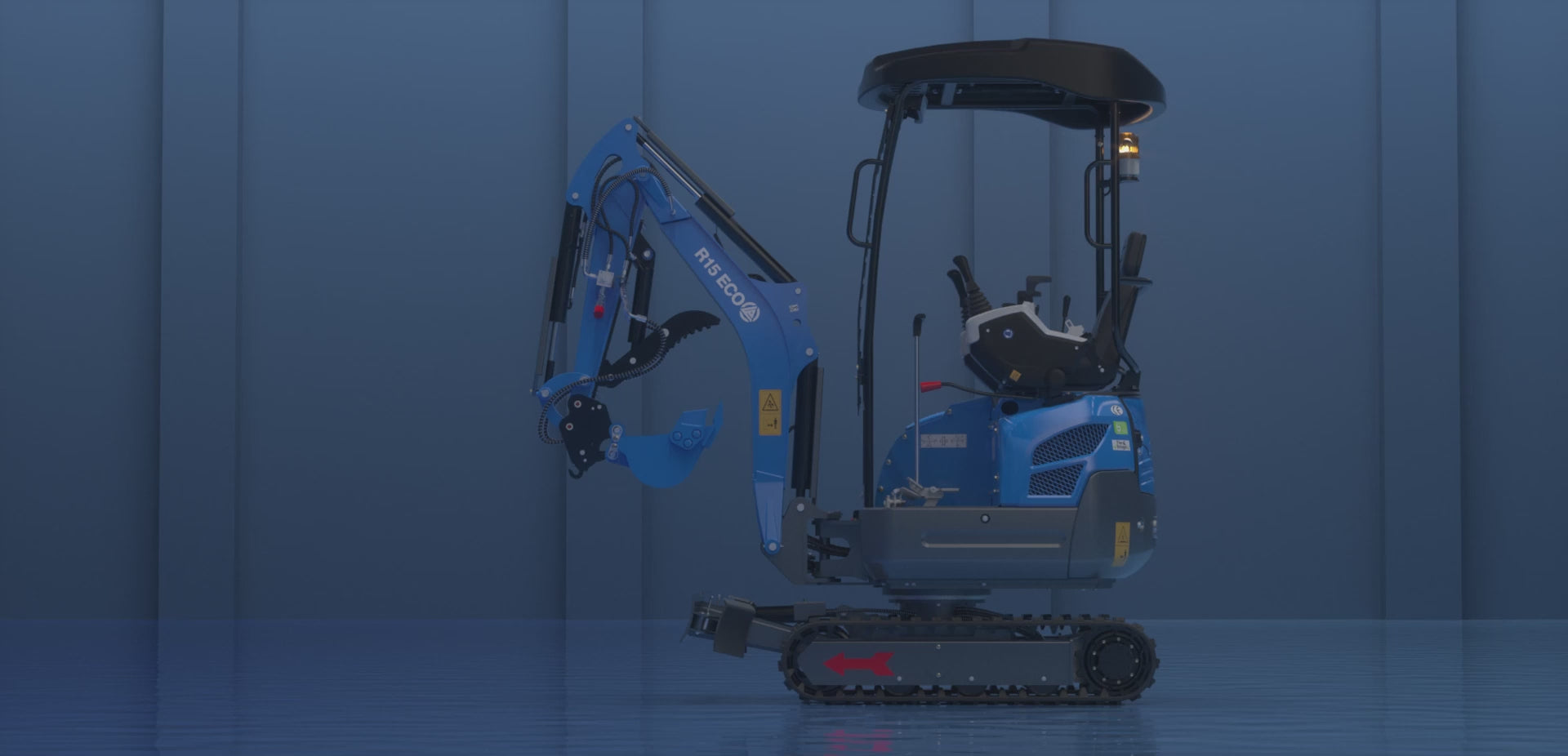

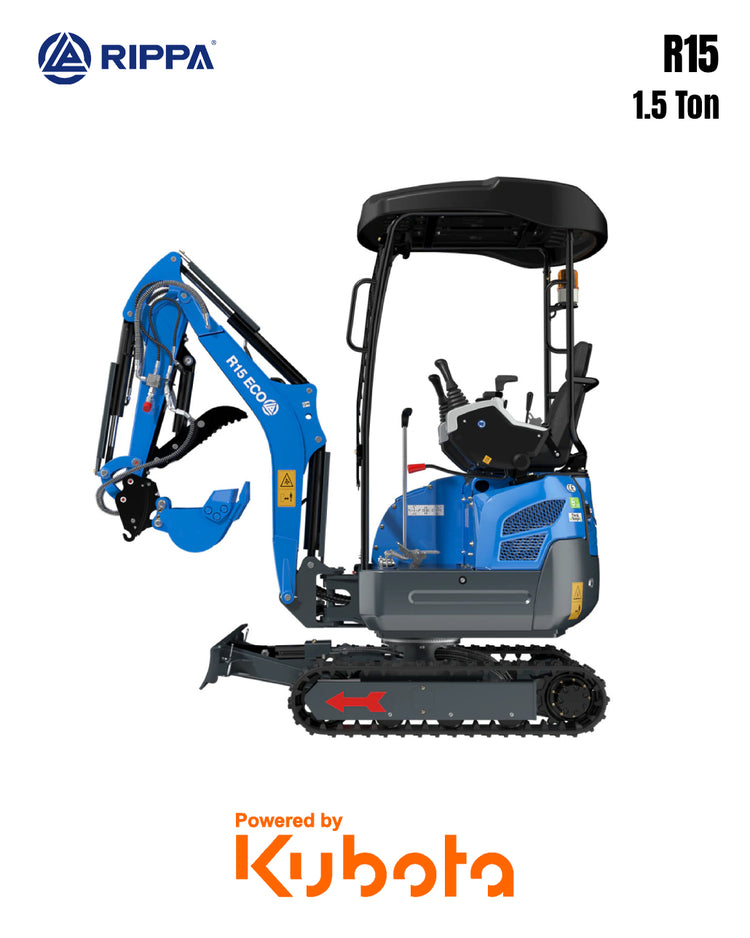

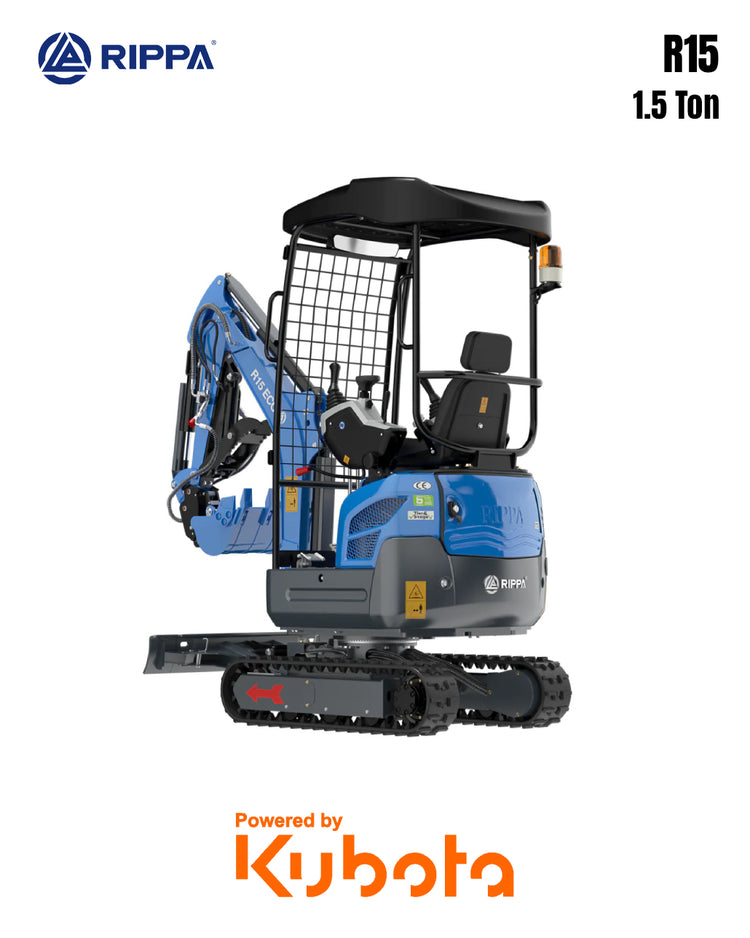

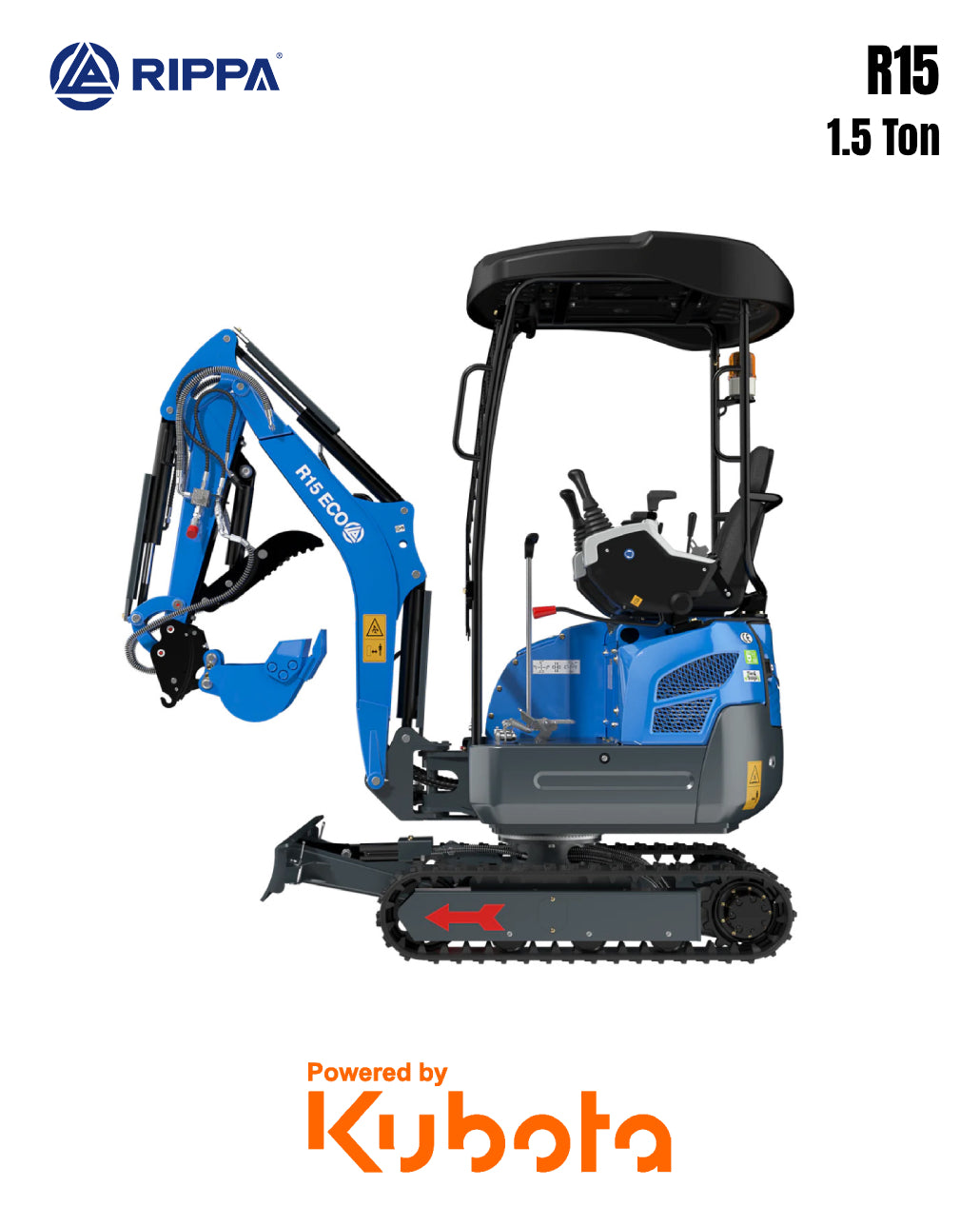

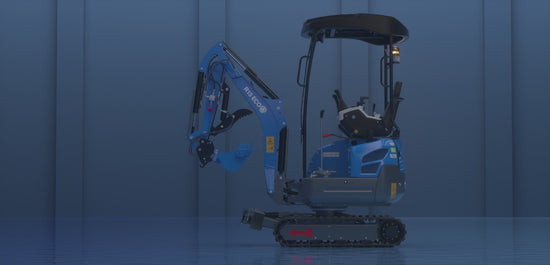

R15 Mini Excavator

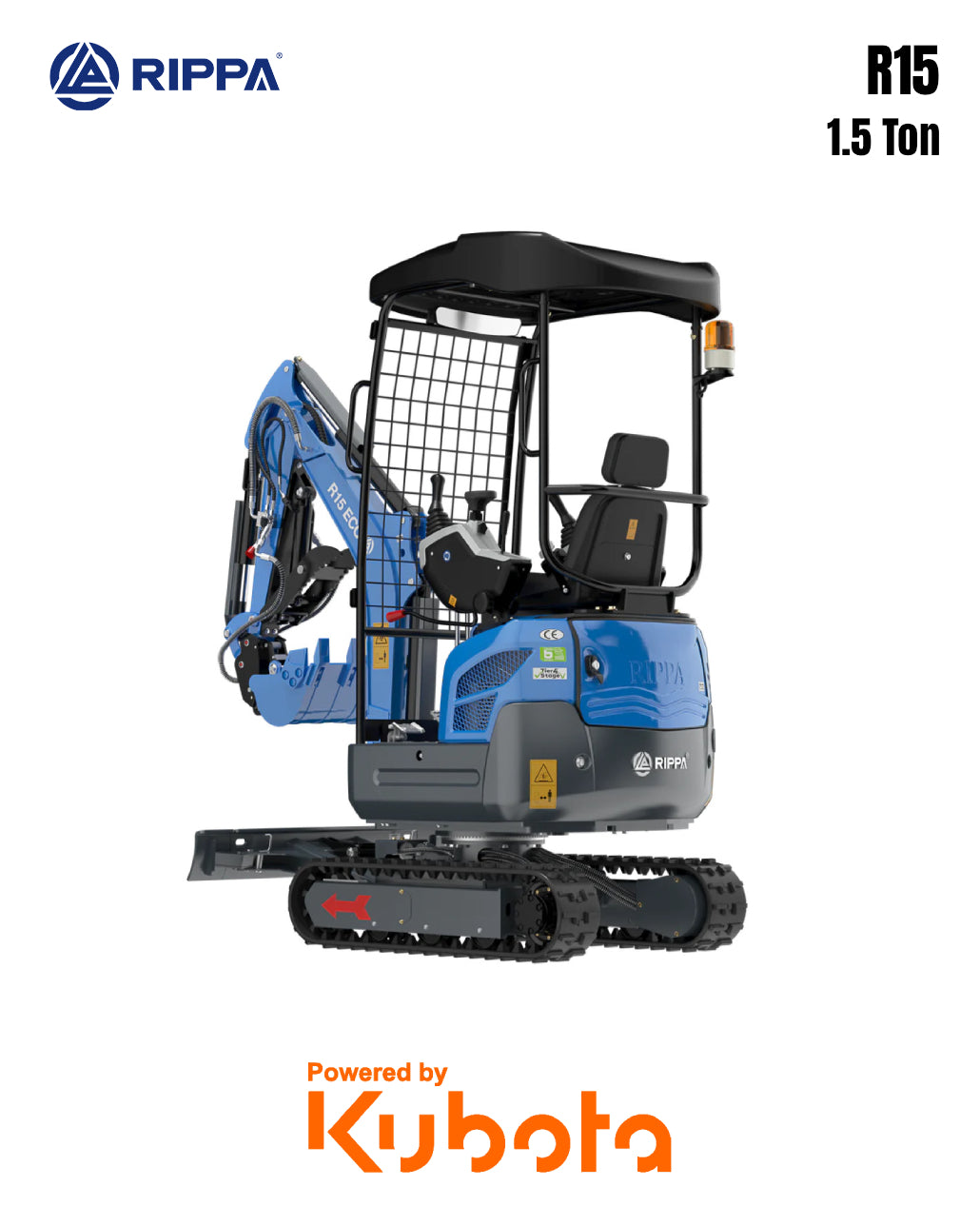

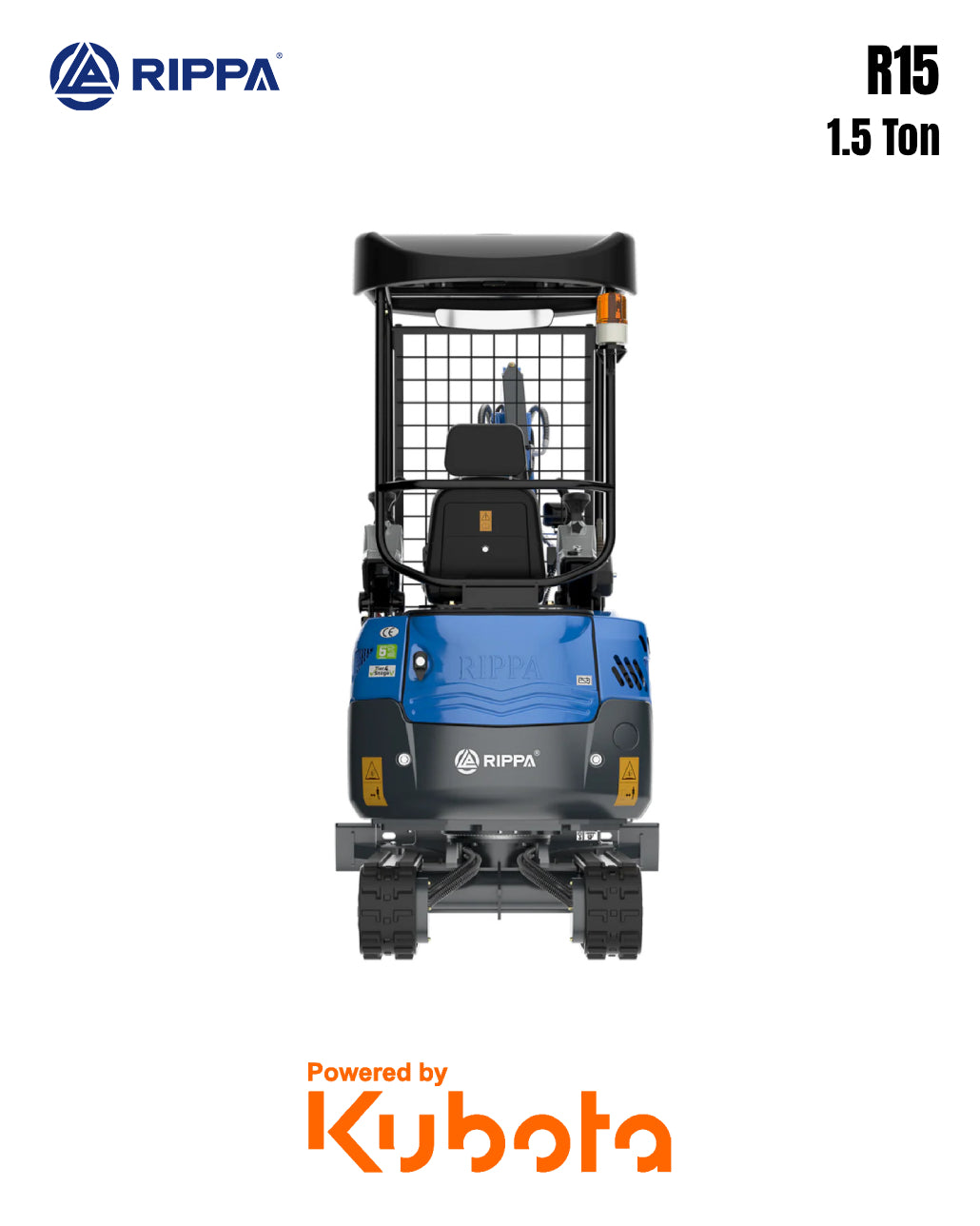

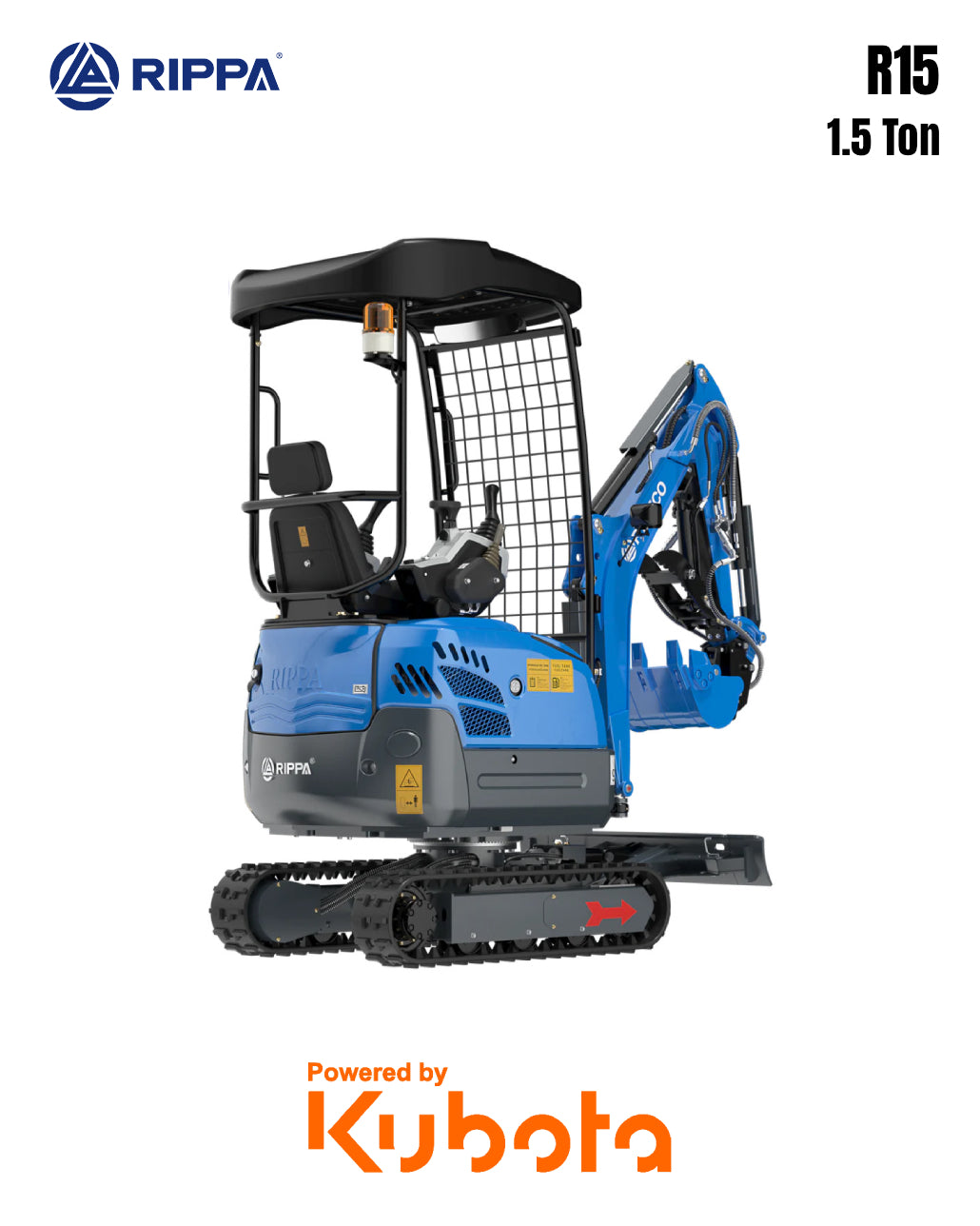

R15 1.5 Ton Mini Excavator

For a commercial-grade Kubota-powered machine, you can't look past Rippa.
Digger World is proudly now supplying the latest Rippa models throughout Aus & NZ.
All Rippa models come with a commercial build quality and features that other brands simply do not offer in their mini excavator ranges.

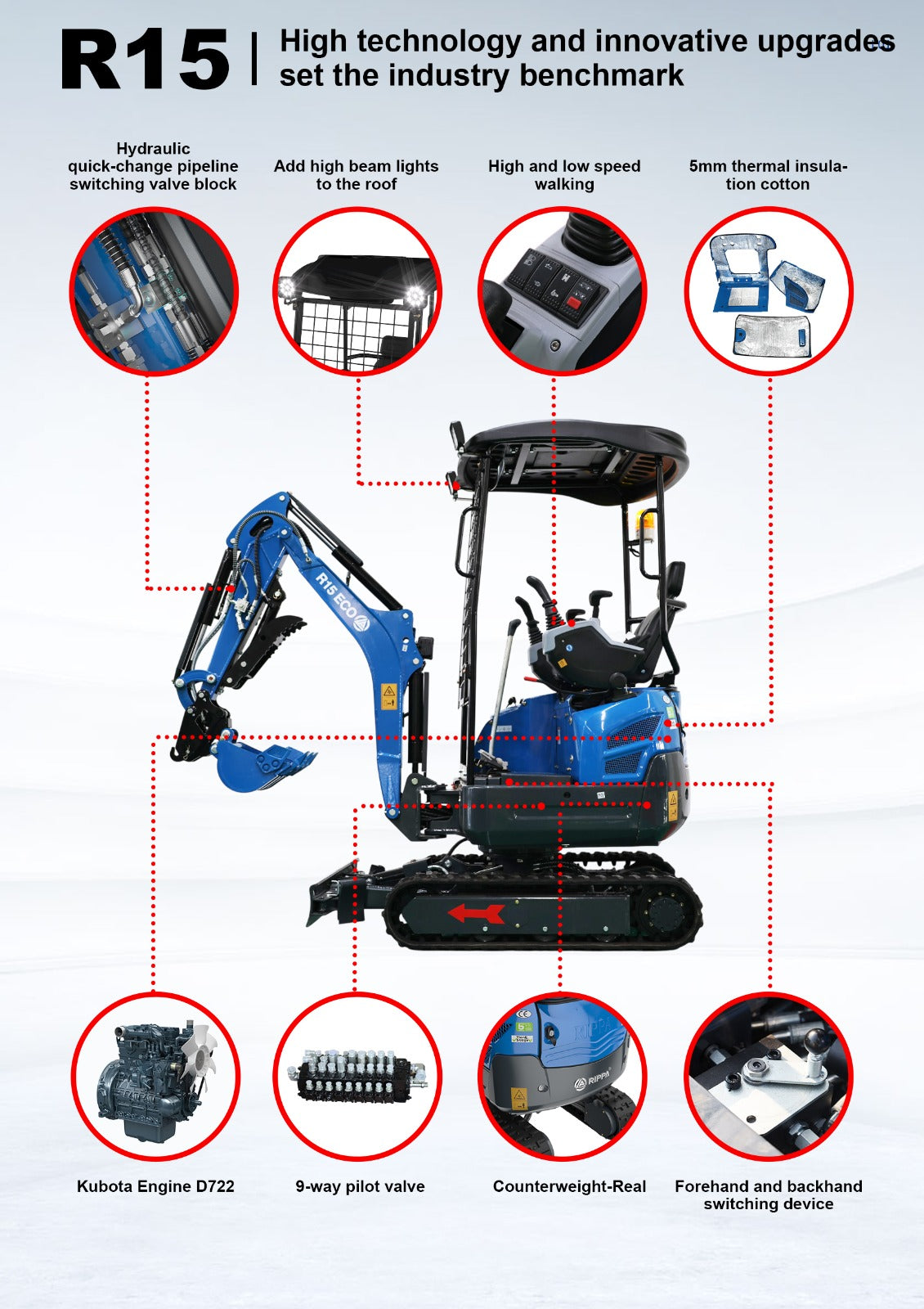

Latest Model R15 Features:

- Kubota Engine
- Independent Boom Swing
- Telescopic Tracks

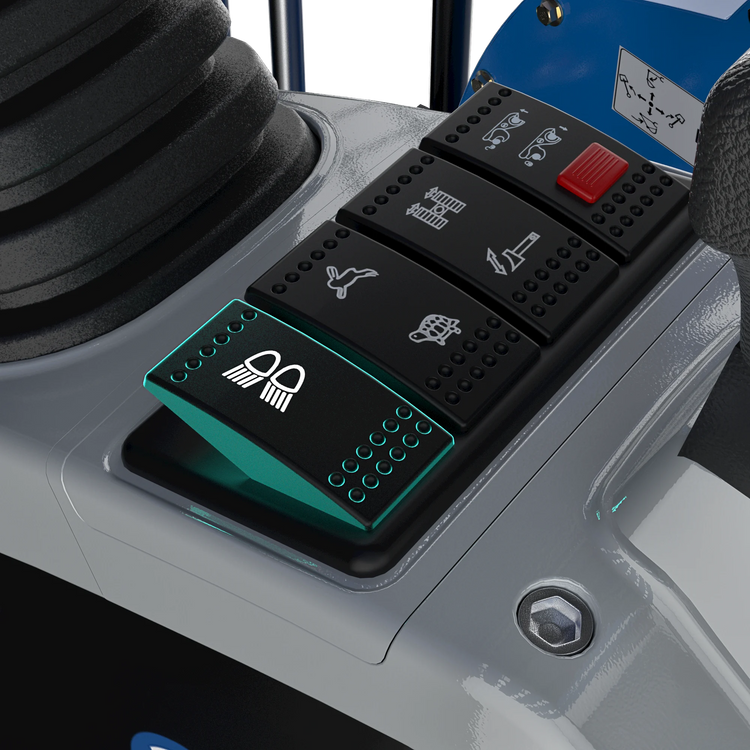

- Hydraulic Side Piloting

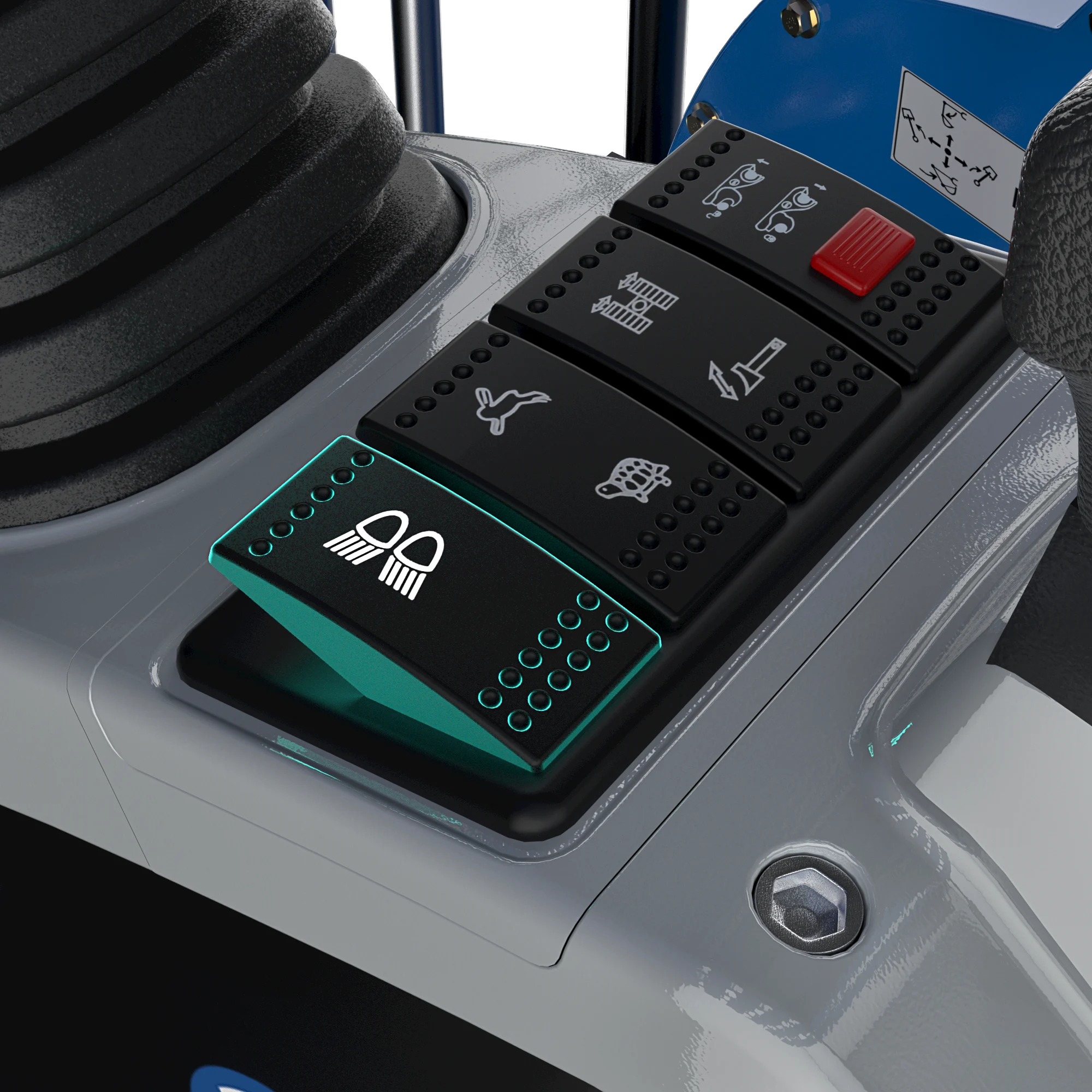

- High & Low Travel Speeds
- Headlights
- Safety Cage
- Safety Warning Light
- Rubber Tracks

Comes With:

• Hydraulic Quick Hitch
  - Hydraulic Thumb
  - Toothed Bucket: 400mm
  - Toolbox - Basic Tools, Air Filters, Grease Gun
  - Operation & Service Manual
  - Aus & NZ nation-wide parts access

Delivery Included

Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery tab for more details.

The R15 is equipped with a Kubota Japanese engine with Australia wide warranty, delivering 10.2 kW (13.97 HP) at 2500 RPM.

- Kubota D722 – 3-cylinder, water-cooled diesel engine
- Displacement: 0.719 L
- Oil Capacity: 1.5 L
- Long service life, national parts access, and reliable support

2. Fuel

- Fuel Type: Diesel
- Fuel Grade: 0# or -10#
- Fuel Tank Capacity: 20 L
- Hydraulic Oil Tank: 22 L

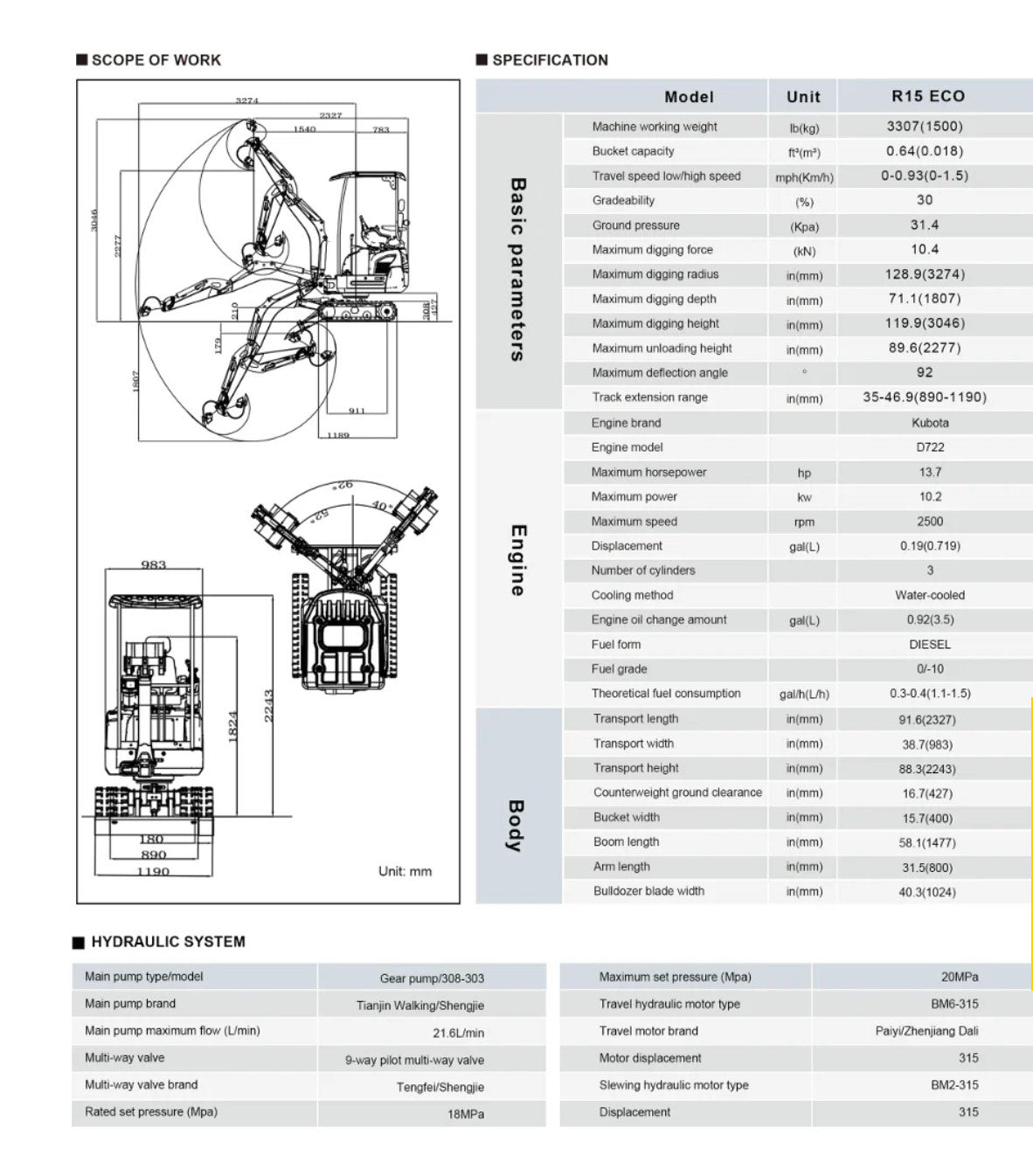

3. Performance

- Operating Weight: 1500 kg
- Bucket Capacity: 0.018 m³
- Travel Speed: 0–1.5 km/h
- Ground Pressure: 31.4 KPa
- Climbing Ability: 30%
- Digging Force: 10.2 kN
- Max Digging Distance: 3274 mm
- Max Digging Depth: 1806 mm
- Max Dump Height: 2277 mm
- Max Digging Height: 3046 mm
- Track Width Adjustment: 890–1190 mm

4. Other Specs

- Hydraulic Pump: Gear pump (Model 308–303) – Tianjin Travel / Shengjie
- Max Flow: 21.6 L/min
- Rated Pressure: 18 MPa | Max: 20 MPa
- Multi-Way Valve: 9-way pilot – Tengfei / Shengjie
- Travel Motor: BM6-315 – Paiyi / Zhejiang Dali
- Swing Motor: BM2-315
- Chassis: Rubber Tracks
- Track Tensioning: Mechanical
- Dimensions:

Length: 2327 mm
Width: 983 mm
Height: 2243 mm
Ground Clearance: 427 mm
Blade Width: 1024 mm

5. Shipping Time

Approximately 4 weeks from payment to delivery for most metro locations in Aus & NZ.
Please contact us if you wish to check your specific location.

6. Warranty

All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructiions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.
