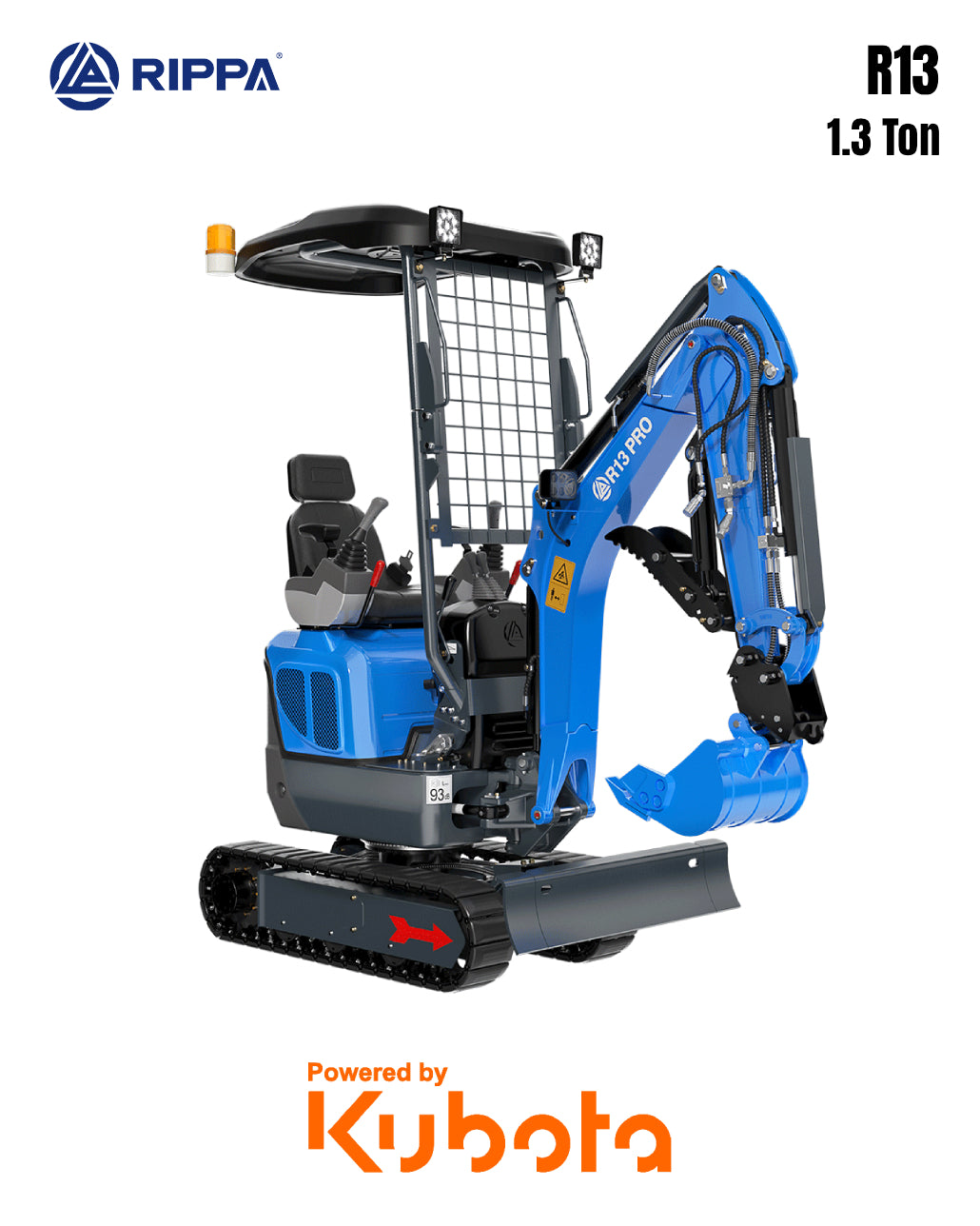

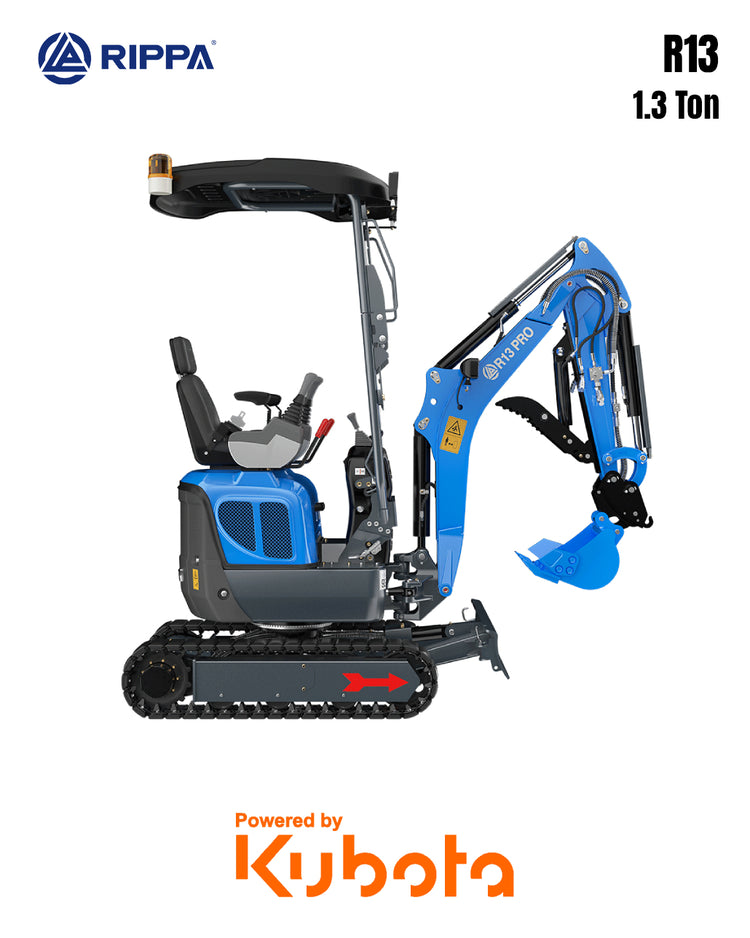

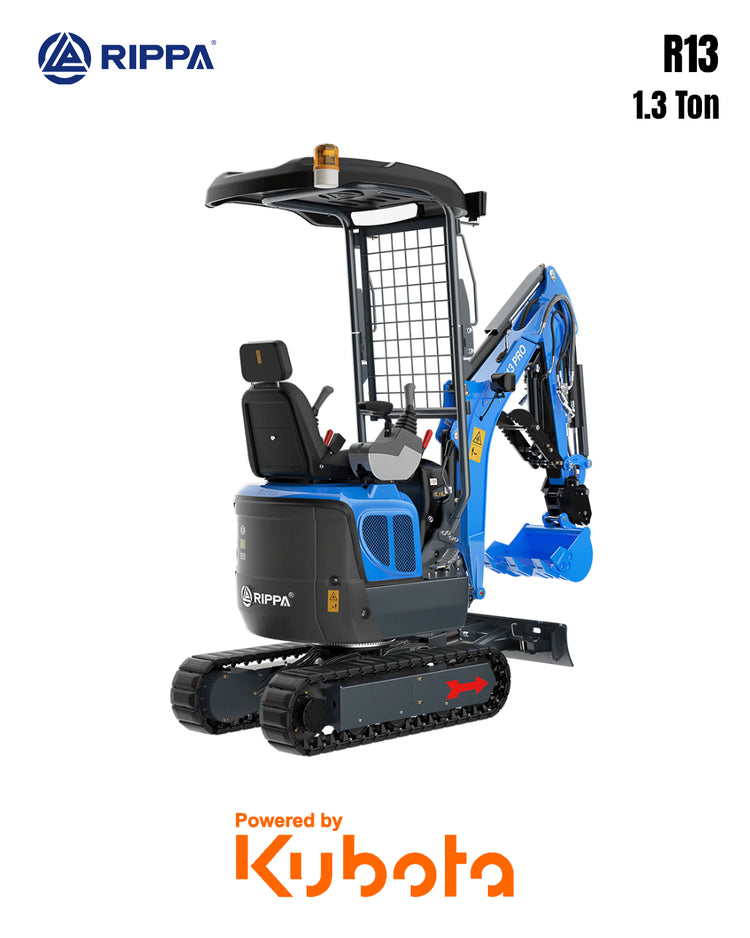

R13 1.3 Ton Mini Excavator
For a commercial-grade Kubota-powered machine, you can't look past Rippa.
Digger World is proudly now supplying the latest Rippa models throughout Aus & NZ.
All Rippa models come with a commercial build quality and features that other brands simply do not offer in their mini excavator ranges.

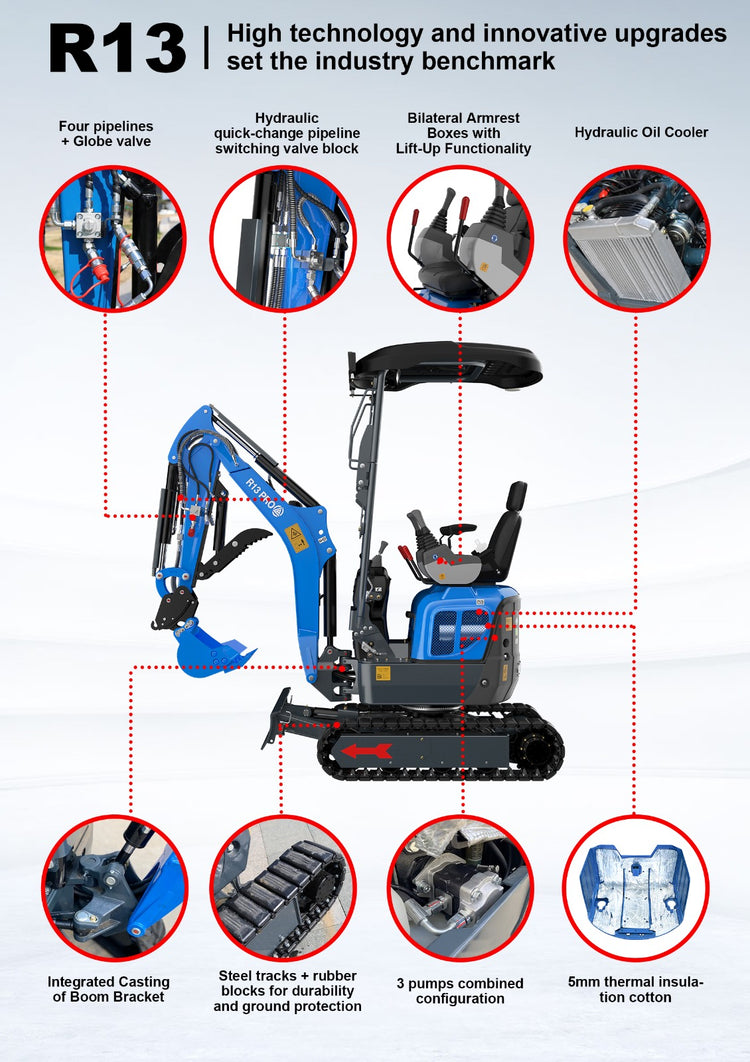

Latest Model R13 Features:
- Kubota Engine
- Independent Boom Swing
- Telescopic Tracks
- Hydraulic Side Piloting
- High & Low Travel Speeds
- Headlights
- Safety Cage
- Safety Warning Light
- Heavy Duty Steel Tracks

Comes With:

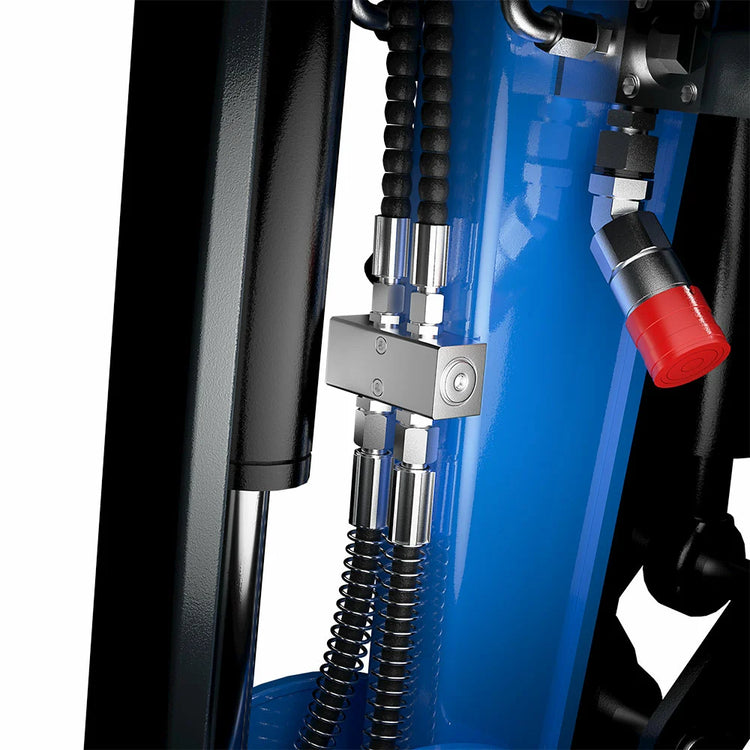

- Hydraulic Quick Hitch
- Hydraulic Thumb
- Toothed Bucket: 400mm
- Toolbox - Basic Tools, Air Filters, Grease Gun
- Operation & Service Manual
- Aus & NZ nation-wide parts access
Delivery Included
Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery tab for more details.

1. Engine
The R10 is equipped with a Kubota Japanese engine with Australia wide warranty, delivering 10.2 kW (13.97 HP) at 2500 RPM.
- Kubota D722 – 3-cylinder, water-cooled diesel engine
- Displacement: 0.719 L
- Oil Capacity: 1.5 L
- Long service life, national parts access, and reliable support
2. Fuel
- Fuel Type: Diesel
- Fuel Grade: 0# or -10#
- Fuel Tank Capacity: 10 L
- Hydraulic Oil Tank: 12 L
3. Performance
- Operating Weight: 1300 kg
- Bucket Capacity: 0.03 m³
- Travel Speed: 0–1.5 / 2.8 km/h
- Ground Pressure: 26.79 KPa
- Climbing Ability: 30%
- Digging Force: 9.8 kN
- Max Digging Distance: 3346 mm
- Max Digging Depth: 1843 mm
- Max Dump Height: 2289 mm
- Max Digging Height: 3015 mm
- Track Width Adjustment: 750–990 mm
4. Other Specs
- Hydraulic Pump: Gear pump – Tianjin Travel (Model 305)
- Max Flow: 25 L/min
- Rated Pressure: 18 MPa | Max: 20 MPa
- Multi-Way Valve: THD12 – Taifeng
- Travel Motor: WDM-390 dual-speed – Paiyi
- Swing Motor: BM2-315
- Chassis: Steel Tracks
- Track Tensioning: Mechanical

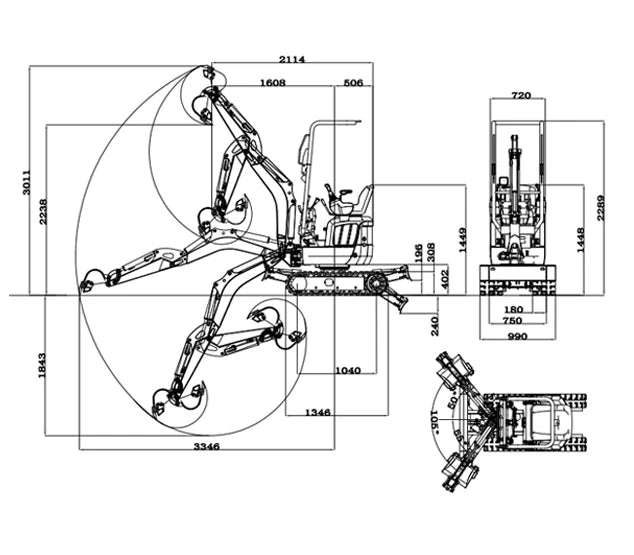

- Dimensions:
Length: 2114 mm
Width: 990 mm
Height: 2289 mm
Ground Clearance: 361 mm
Blade Width: 912–1212 mm
5. Shipping Time
Approximately 4 weeks from payment to delivery for most metro locations in Aus & NZ.
Please contact us if you wish to check your specific location.
6. Warranty
All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructiions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.
Any questions?
Send them our way with the contact form, or send us an email at sales@digger-world.com if you have any questions


We deal factory direct and provide:
  - - FREE DELIVERY with unloading assistance within 300km of most major cities in Australia & New Zealand

  - - Further inland delivery is only $500 for all machines

  - - Locations over 600km will require a quote from our team

 Average Delivery Times:
 - - Rippa Models:  5-6 weeks

 - - Huayee Models: 5-6 weeks

 - - Hightop Models:  8-9 weeks
