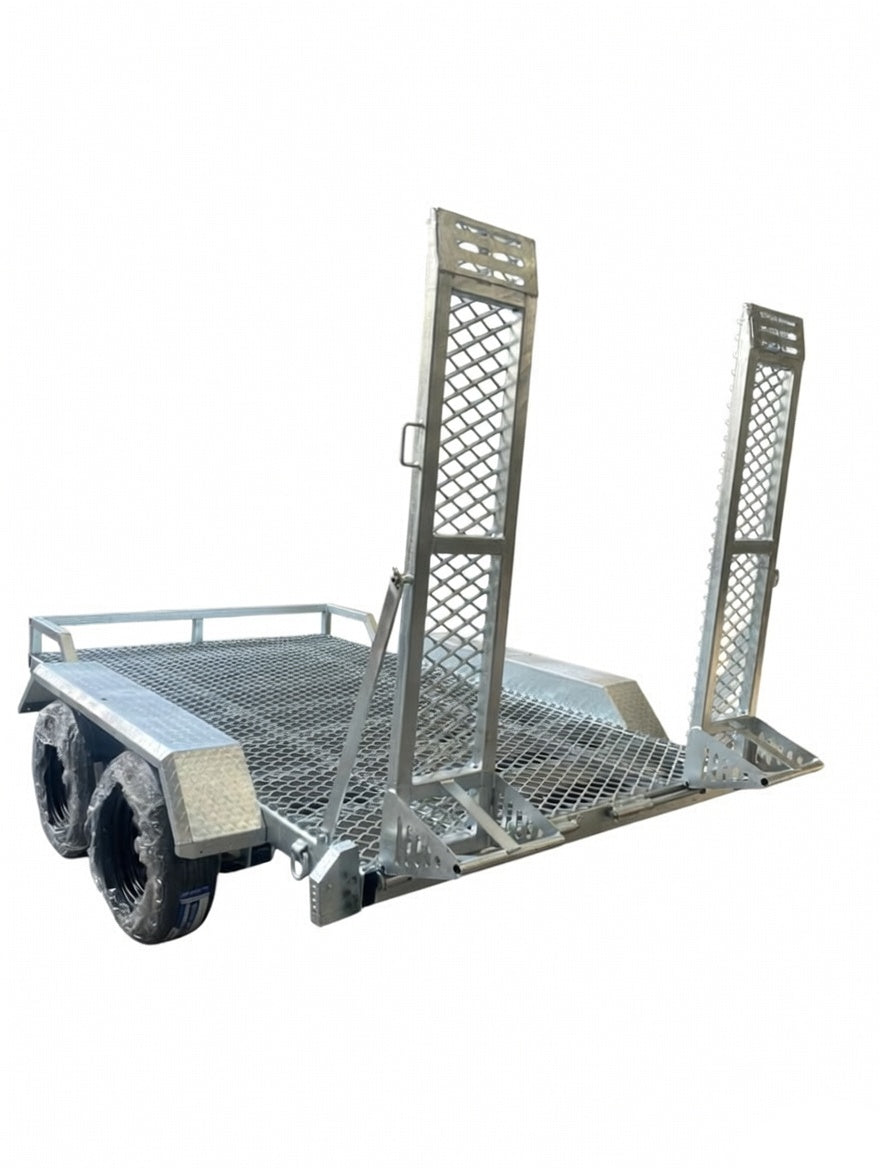

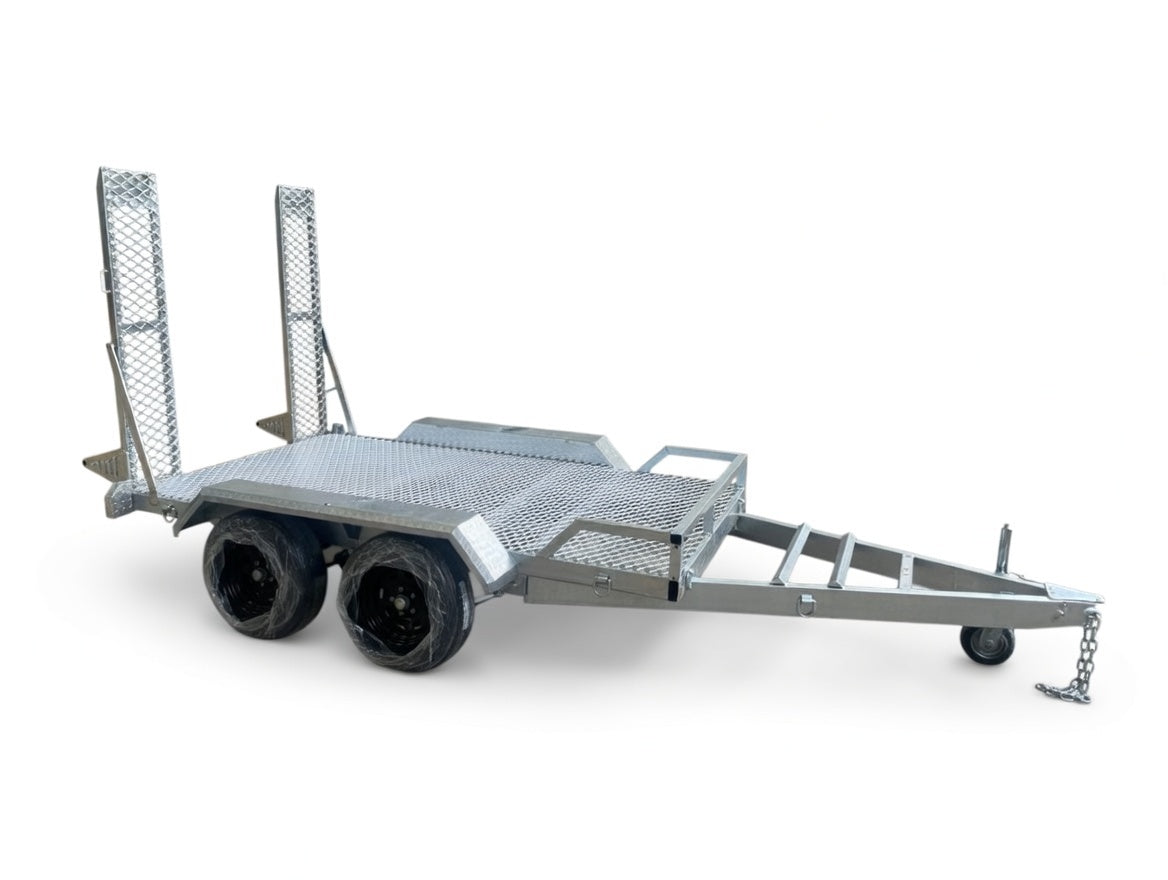

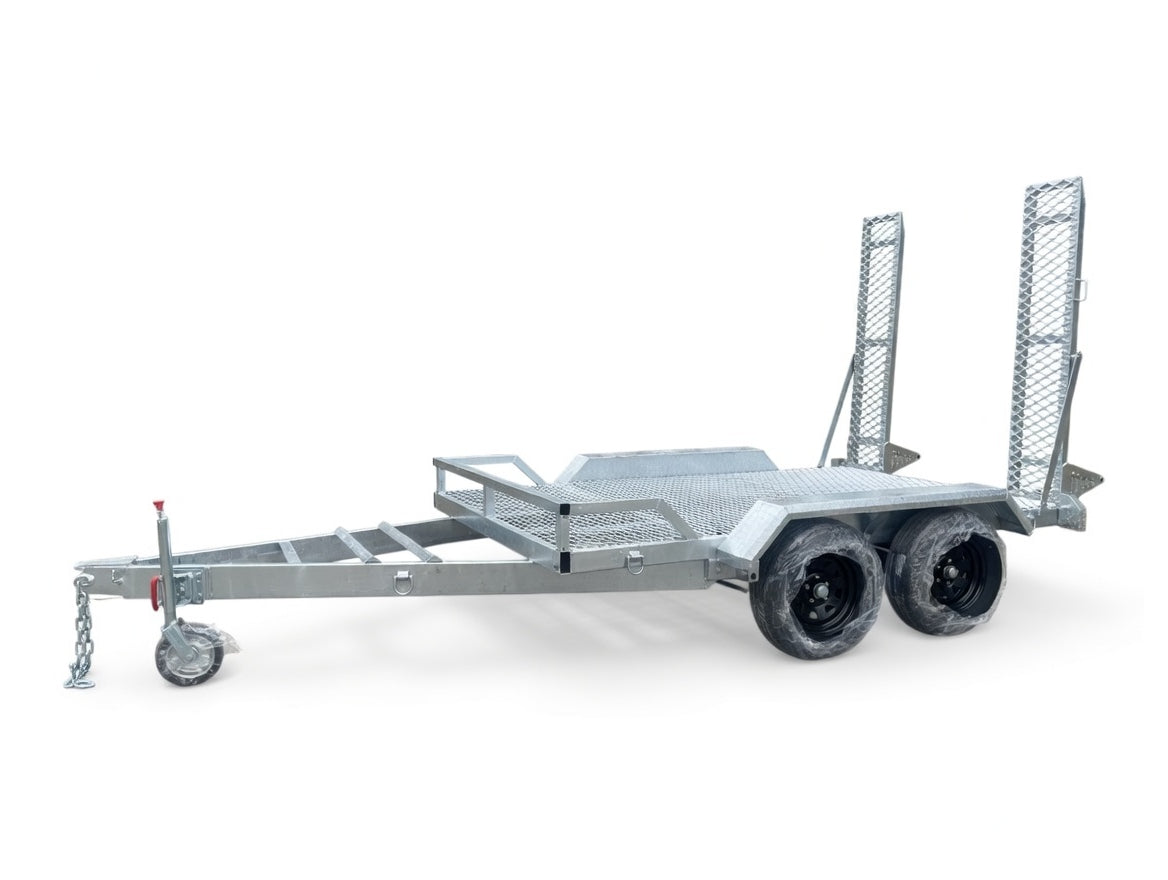

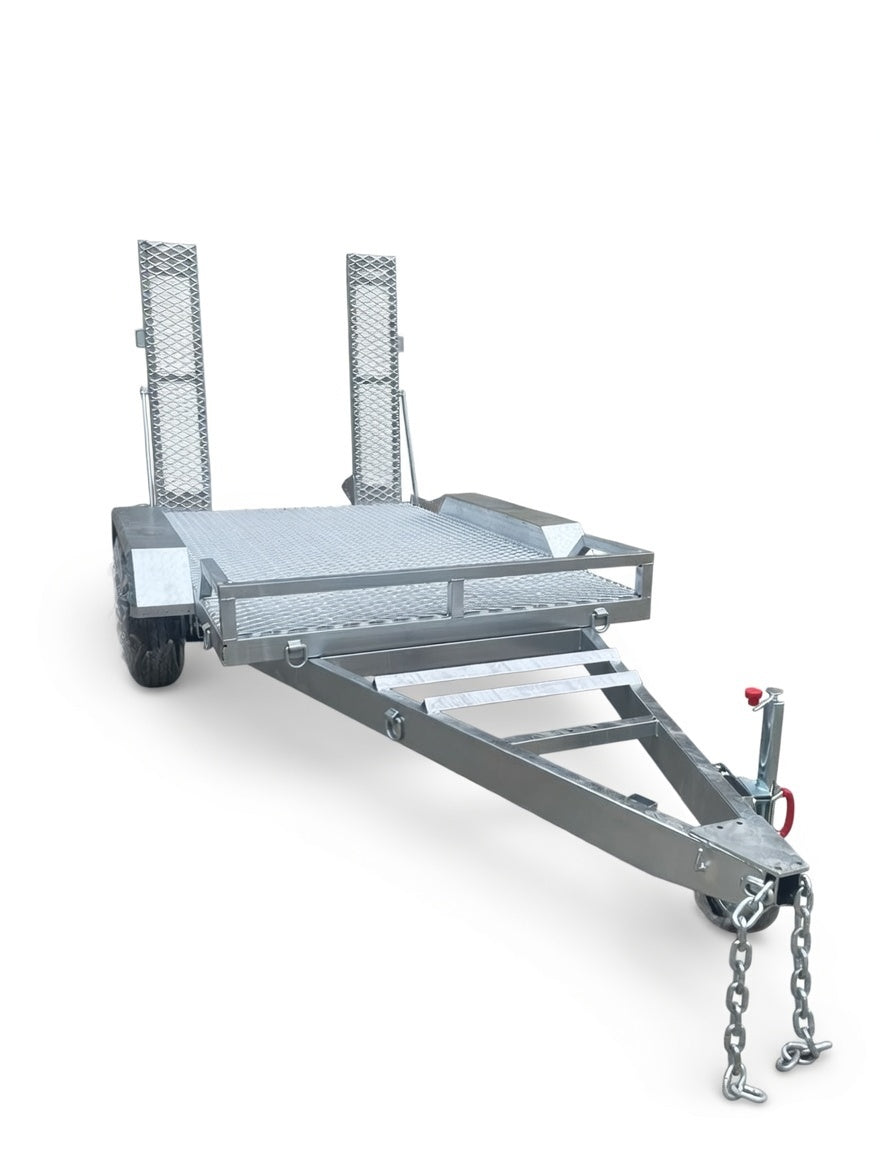

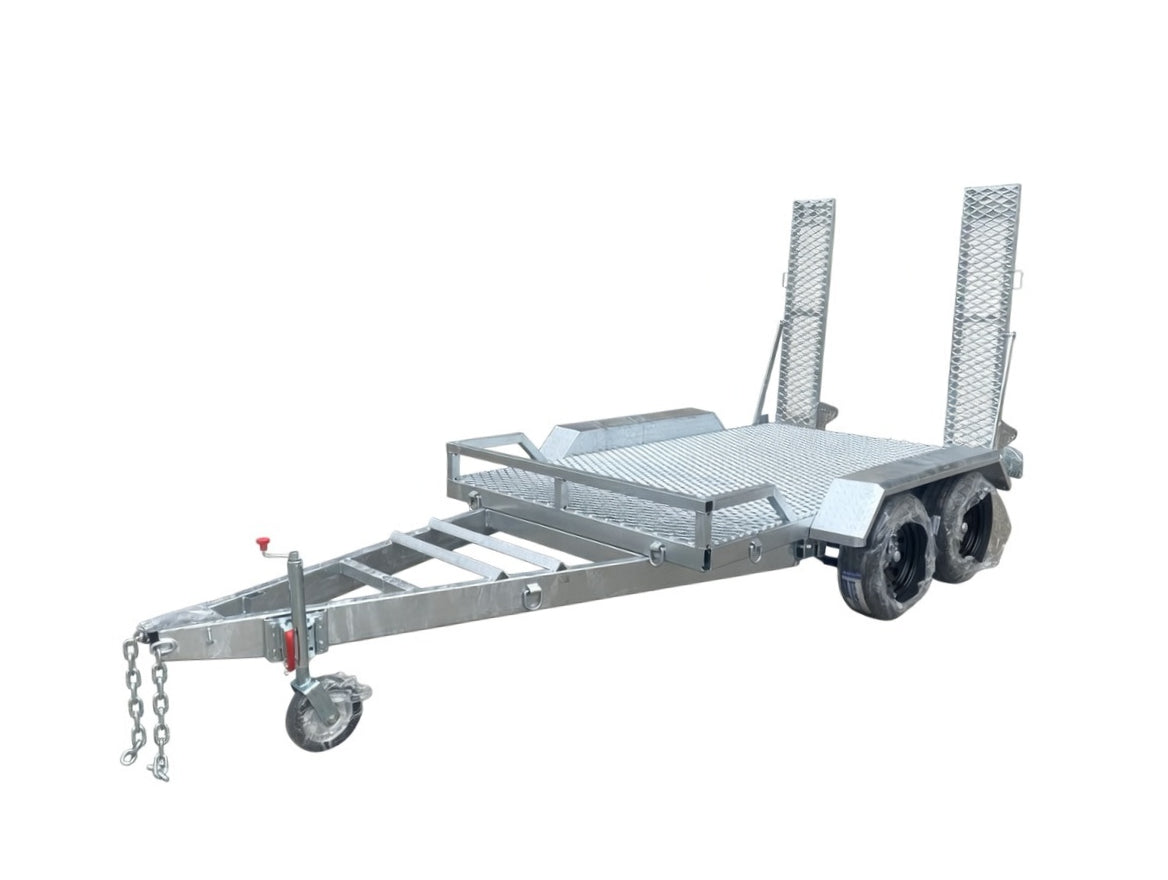

Machinery Plant Trailer
Designed for strength, stability, and ease of use, this trailer is ideal for transporting mini excavators and other compact machinery safely and efficiently.
Compliant to Aus & NZ standards
Suitable for all mini excavators 2200kg and under
Key Features:
-
Gross Vehicle Weight (ATM): 3000kg
-
Tare Weight: 650kg
-
Trailer Size: 8ft x 5ft
-
Internal Deck Dimensions: 2500 x 1500mm
- Tandem Axle
- Electric Brakes
- Breakaway System
Construction:
-
Drawbar: 100 × 50 × 5mm RHS Q355 steel, 1700mm length, fitted with dual 13mm safety chains
-
Chassis: 100 × 50 × 3mm main frame with 50 × 50 × 3mm cross members (Q355 steel)
-
Flooring: Heavy-duty 8mm mesh
Running Gear:
-
Axles: Dual 50 × 50mm solid axles with 10" electric brakes on both
-
Wheels: 185R14C commercial-grade tyres
-
Suspension: 60 × 6mm 7-leaf rocker roller springs
Components:
-
Coupling: 50mm Aus / NZ standard with electric braking system
-
Lighting: LED lights with 7-pin plug
-
Jockey Wheel: Top-wind jack & 8" jockey wheel
-
Mudguards: 2.5mm checker plate
Loading:
-
Ramps: 1600mm heavy-duty ramps, rated to 2800kg
The trailer will arrive in a wooden box and minor assembly is needed. Each trailer will come with simple instructions to connect.
Digger World trailers can be delivered in approximately 8 weeks for most locations in Australia & New Zealand. Pacific Island nations may require additional time.
Please contact us if you wish to check your specific location.
Warranty:
All Digger World trailers come with a 12 month warranty covering all parts with tyres as the only exclusion.
Specifications:
Please download the brochure by clicking the button above, to see the specs and parameters for this model.
Any questions?
Send them our way with the contact form, or send us an email at sales@digger-world.com if you have any questions
