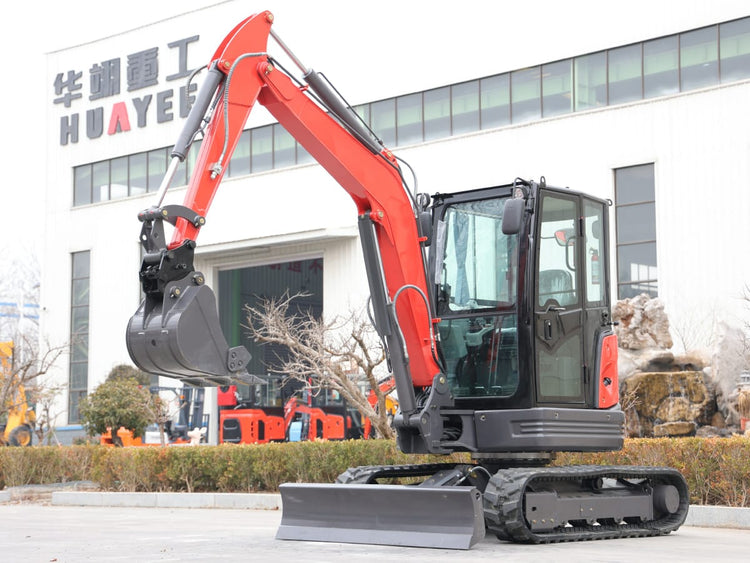

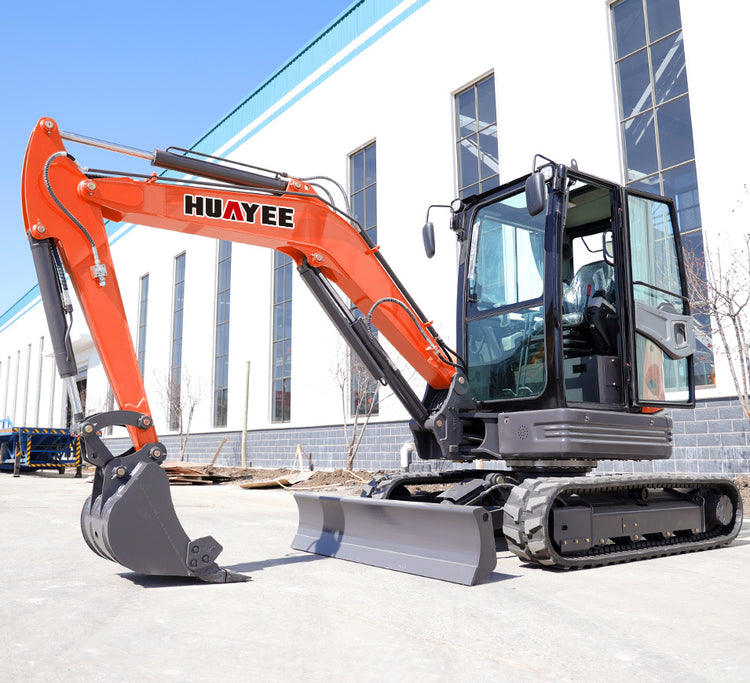

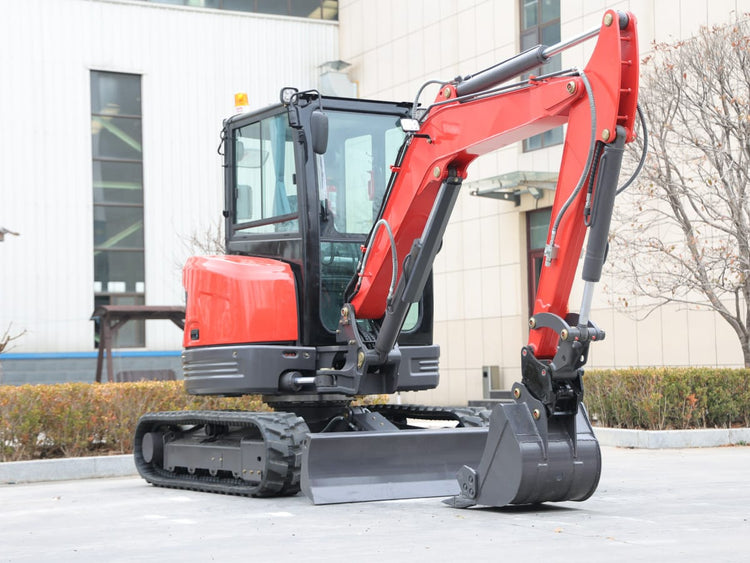

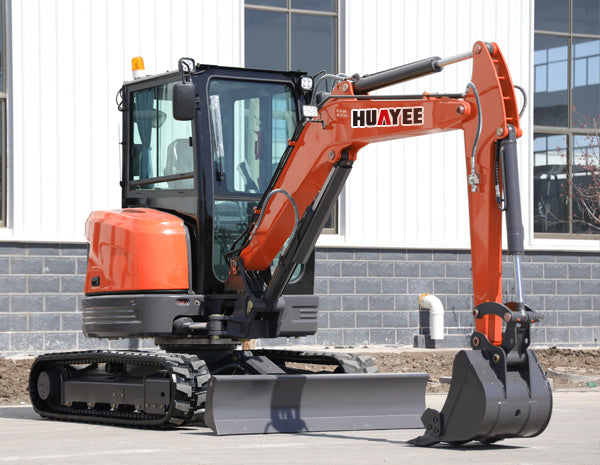

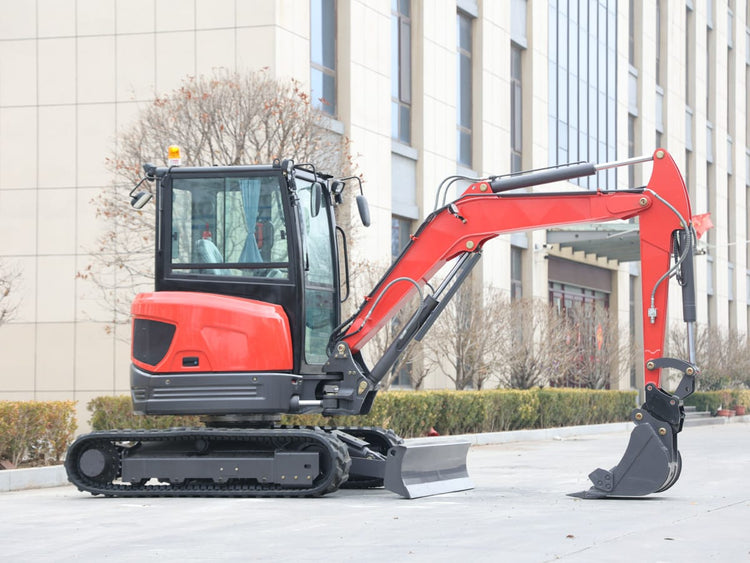

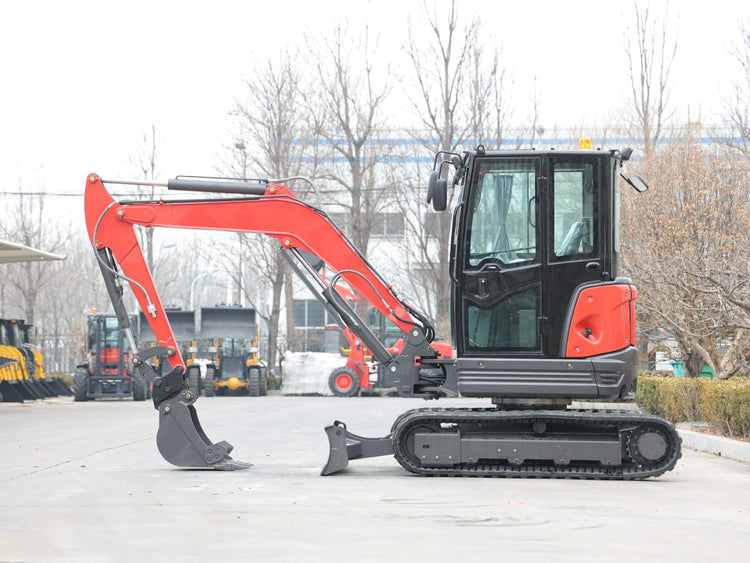

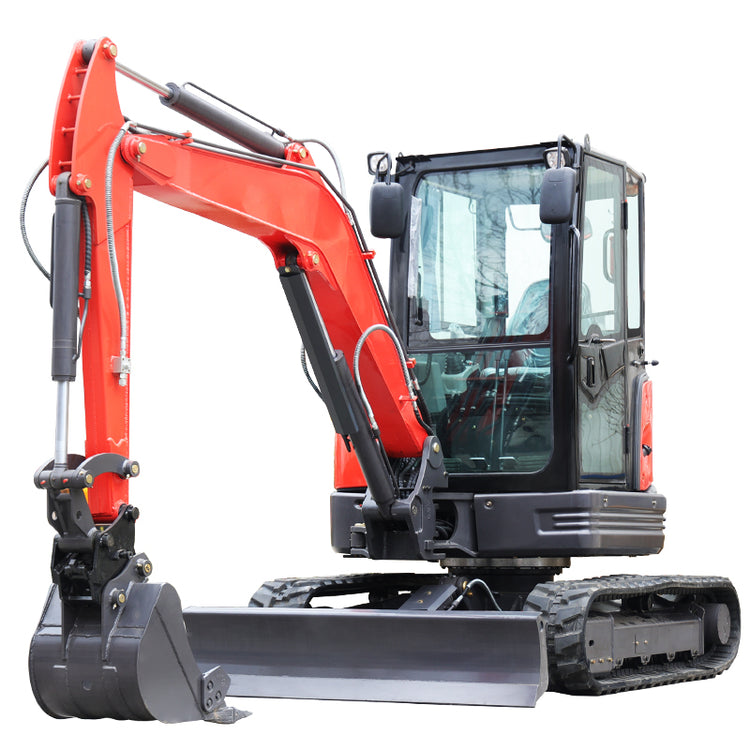

HUAYEE HY40 4 Ton Mini Excavator
At Digger World we only stock commercial-grade machines at competitive prices that don't compromise on build quality. We are proud to be stocking the latest Huayee models that we stand behind.

Latest Model HY40 Features:
- Independent Boom Swing

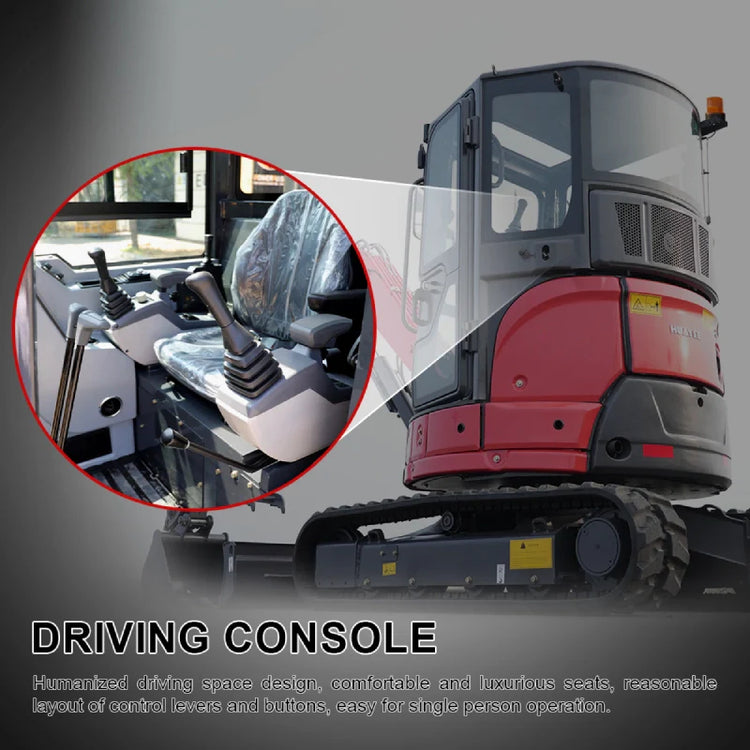

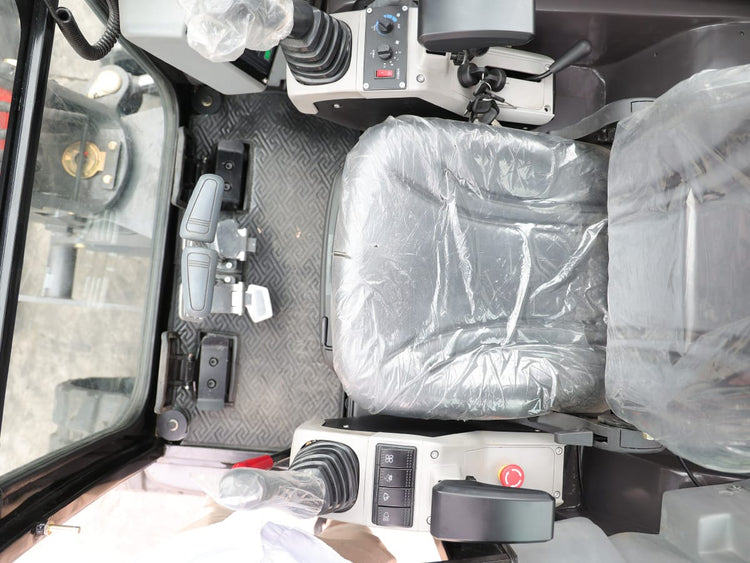

- Closed Cabin
- Reverse Cycle A/C
- High & Low Travel Speeds
- Hydraulic Side Piloting
- Steel Tracks
- Multiple Work Lights
- Side Mirrors

Comes With:
- Toothed Bucket: 450mm
- Toolbox - Basic Tools, Air Filters
- Operation & Service Manual

Optional Extras:
- Rubber Tracks

Delivery Included
Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery tab for more details.

Engine

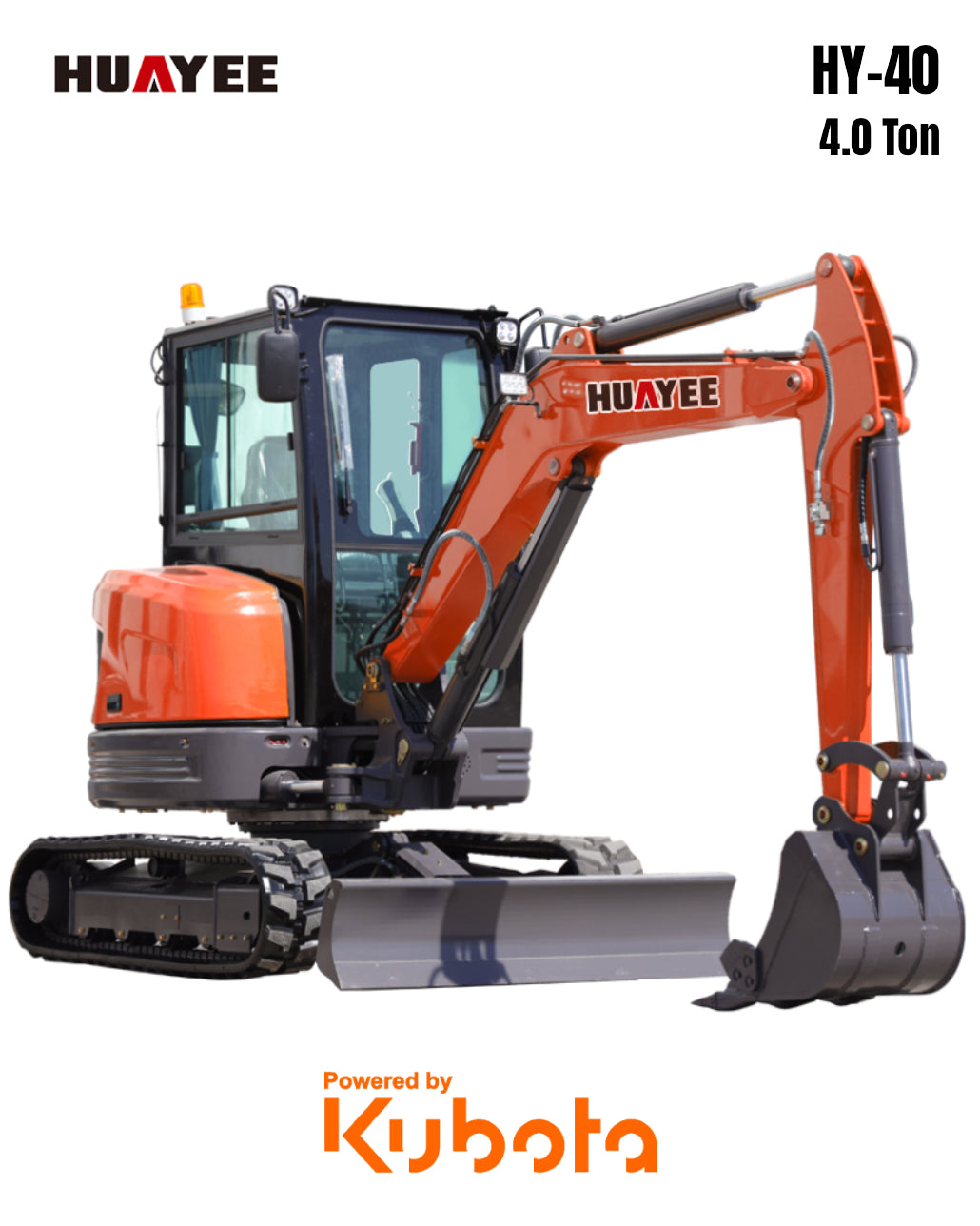

HY40 comes with the reliable Kubota D1703 engine. We recommend the Kubota for it's long term reliability and long engine life, suited for commercial operators and customers looking to put a lot of hours on a machine over it's lifetime.
Kubota engines are easily serviced and supplied with parts nationwide.
While most Huayee models are in stock and ready to be dispatched, the larger HY40 is often not, and the time from deposit to delivery is typically 8-9 weeks for most Australian & New Zealand locations.
Please contact us if you wish to check your location or check lead time before ordering.

Warranty
All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.

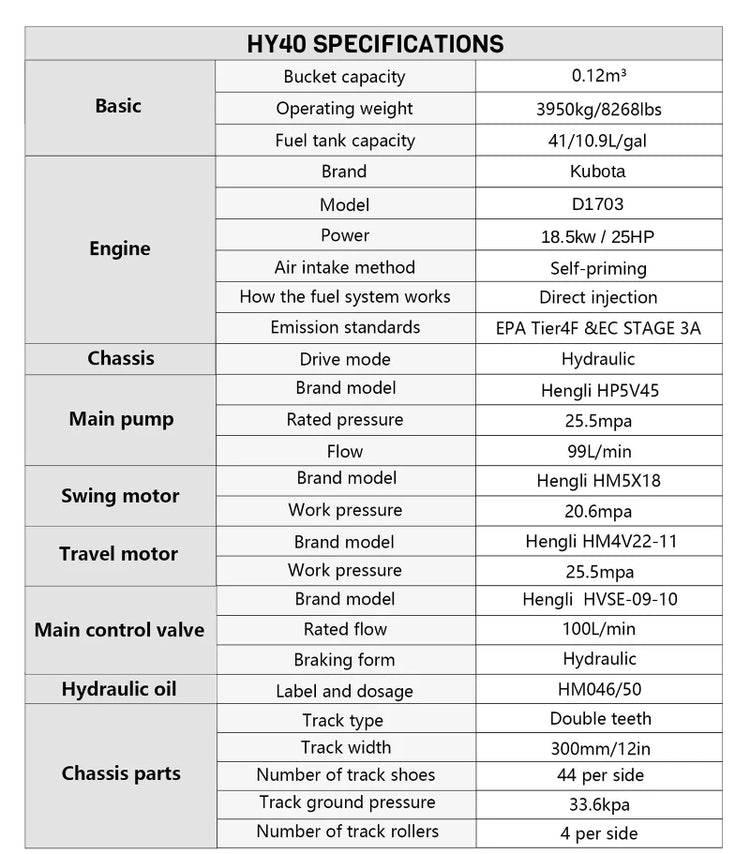

Parameter
Operating Weight: 3950 kg
Bucket Capacity: 0.12m³
Bucket Digging Force: 30KN
Gradeability: 70%
Chassis Ground Clearance: 565mm
Volume Of Fuel Tank: 41L

Engine /Dimensions
Engine Model: Kubota D1703
Power: 18.5kw / 25HP
Overall Height: 2480mm
Total Length: 4800mm
Gauge: 1440mm
Track Width: 1740mm

Performance Specifications
Minimum Slewing Radius: 2125mm
Max. Digging Height: 4290mm
Max. Dumping Height: 3490mm
Max. Digging Depth: 3165mm
Maximum Digging Distance: 5260mm
Max. Vertical Digging Depth: 2630mm
