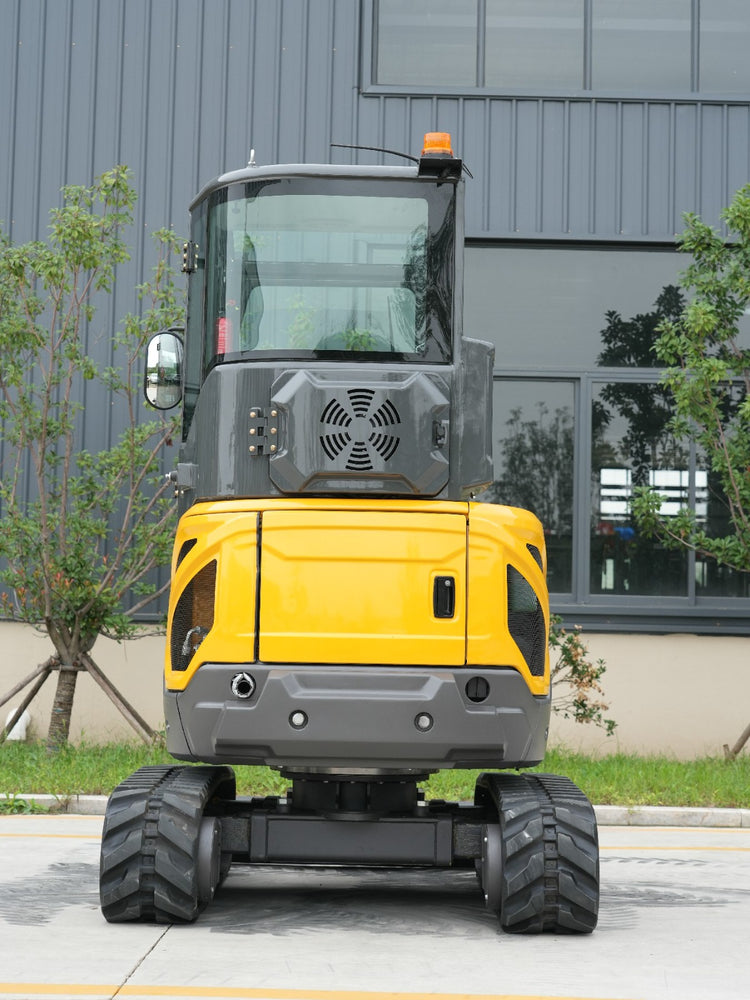

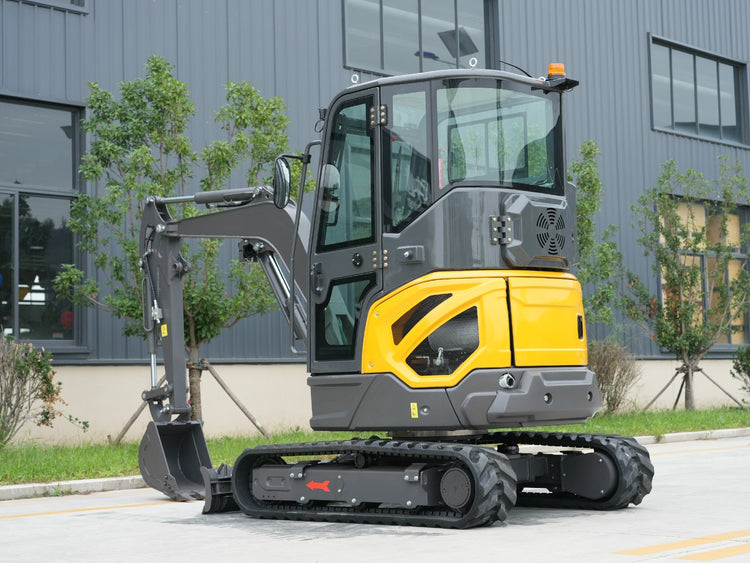

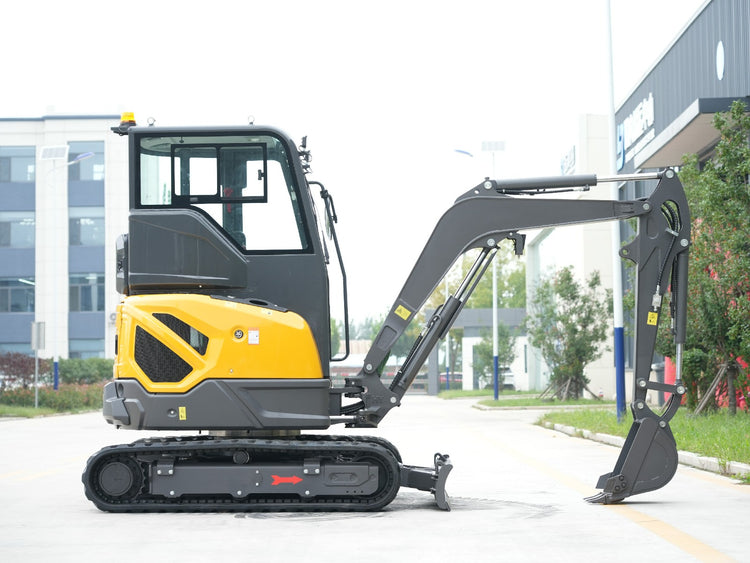

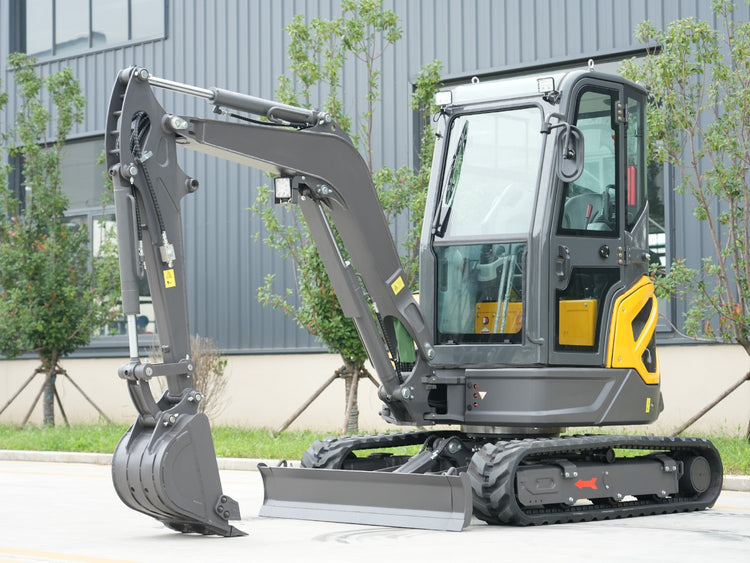

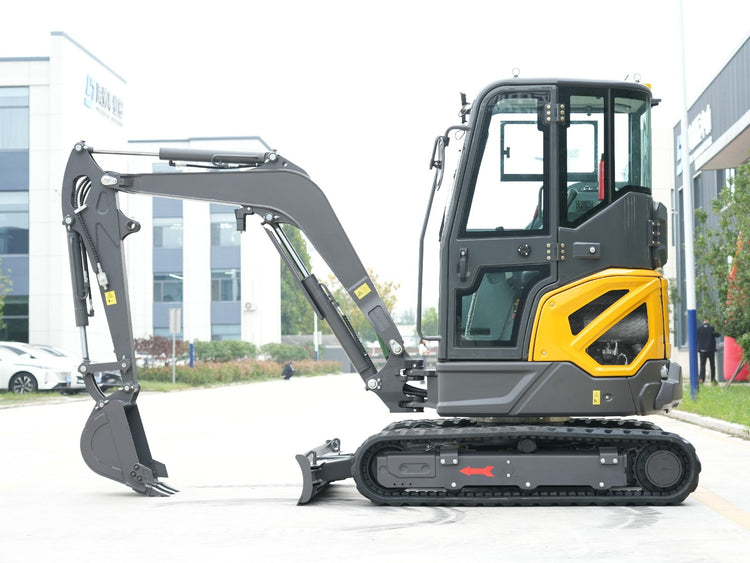

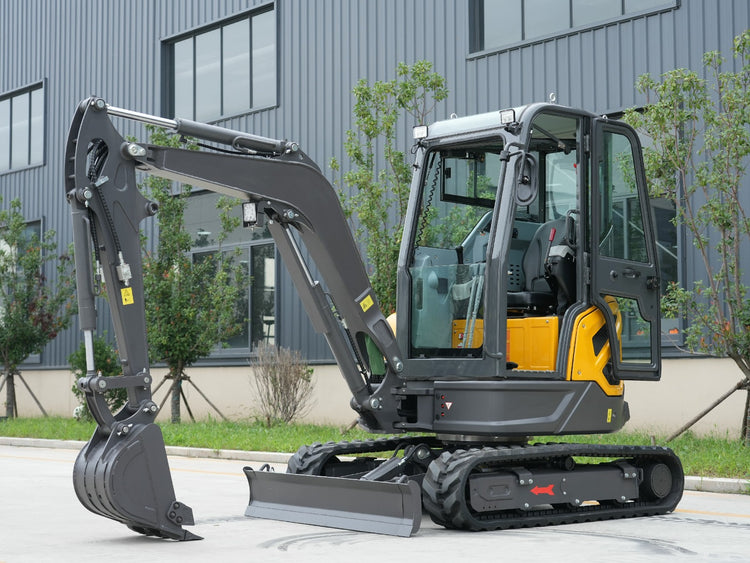

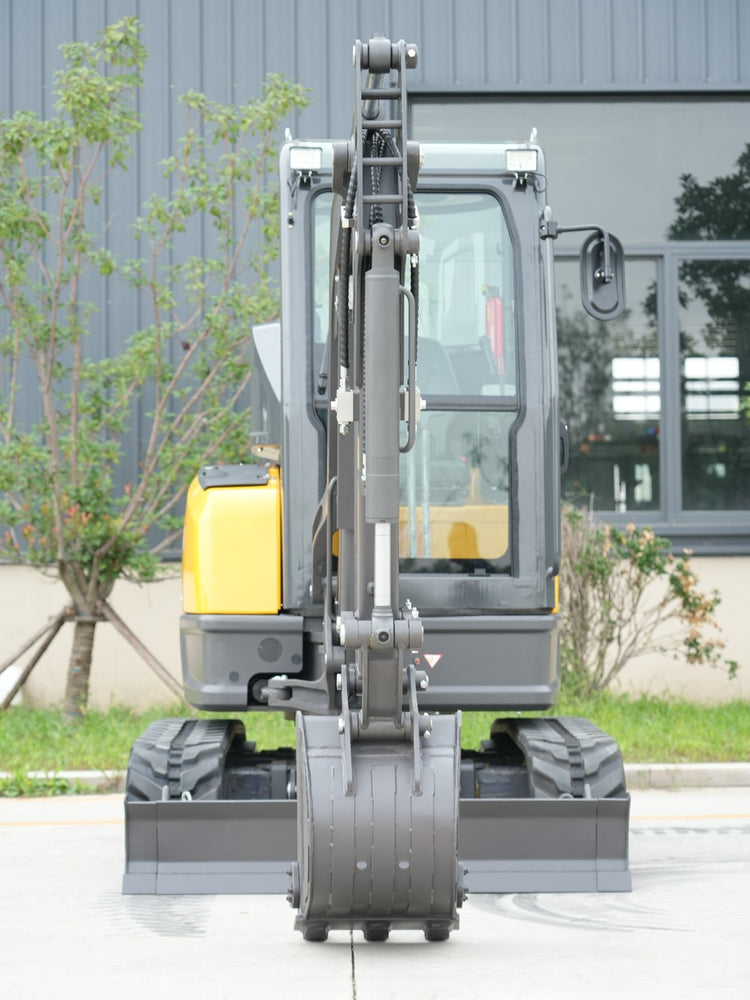

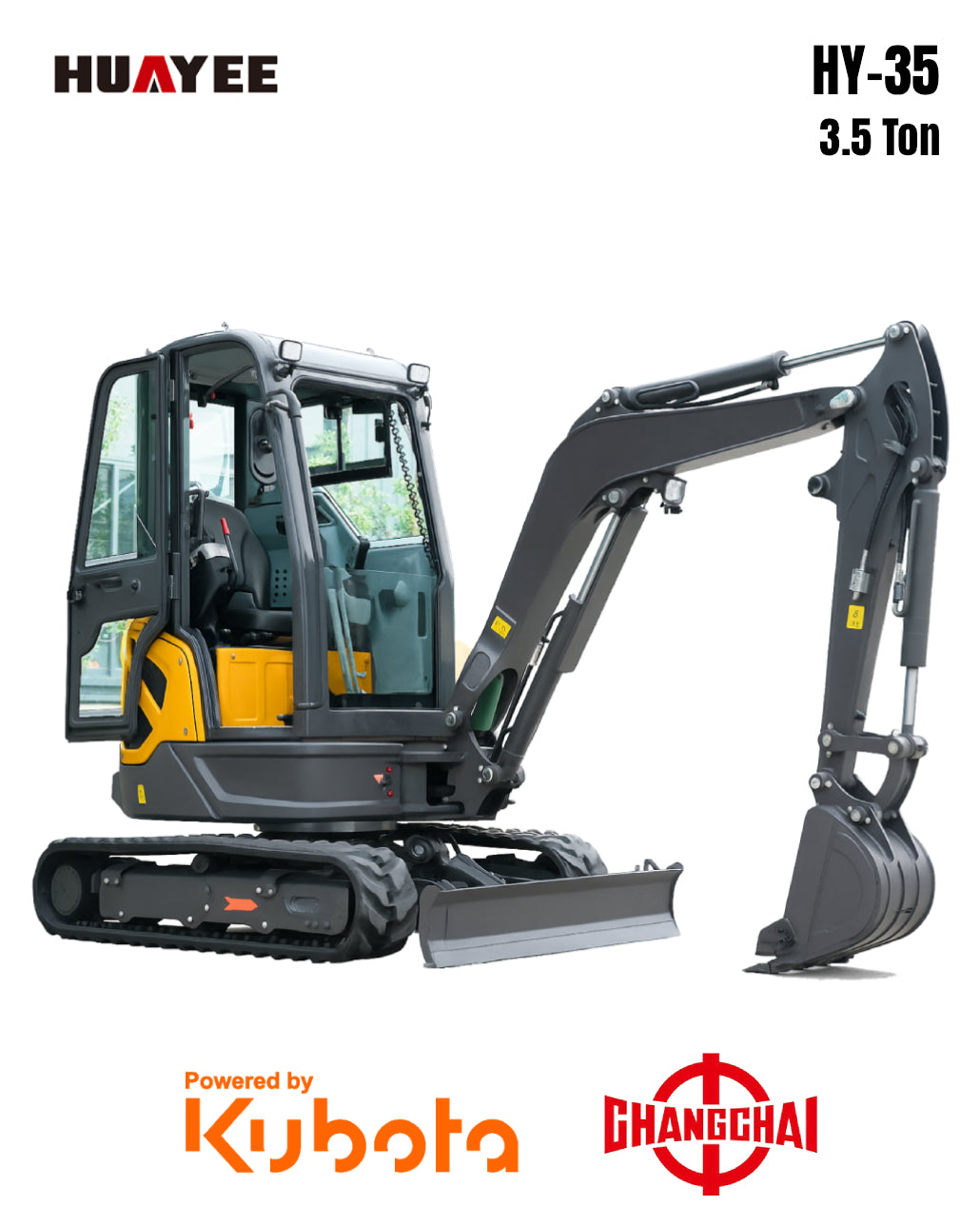

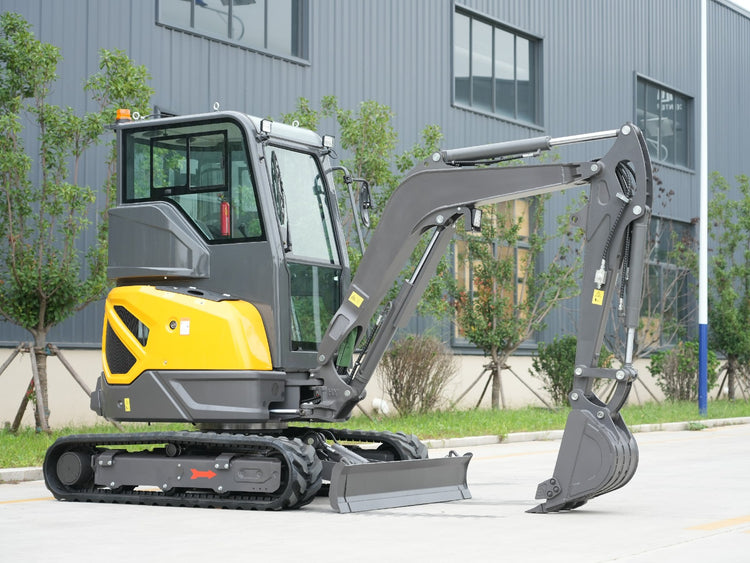

HUAYEE HY35 3.5 Ton Mini Excavator
At Digger World we only stock commercial-grade machines at competitive prices that don't compromise on build quality. We are proud to be stocking the latest Huayee models that we stand behind.

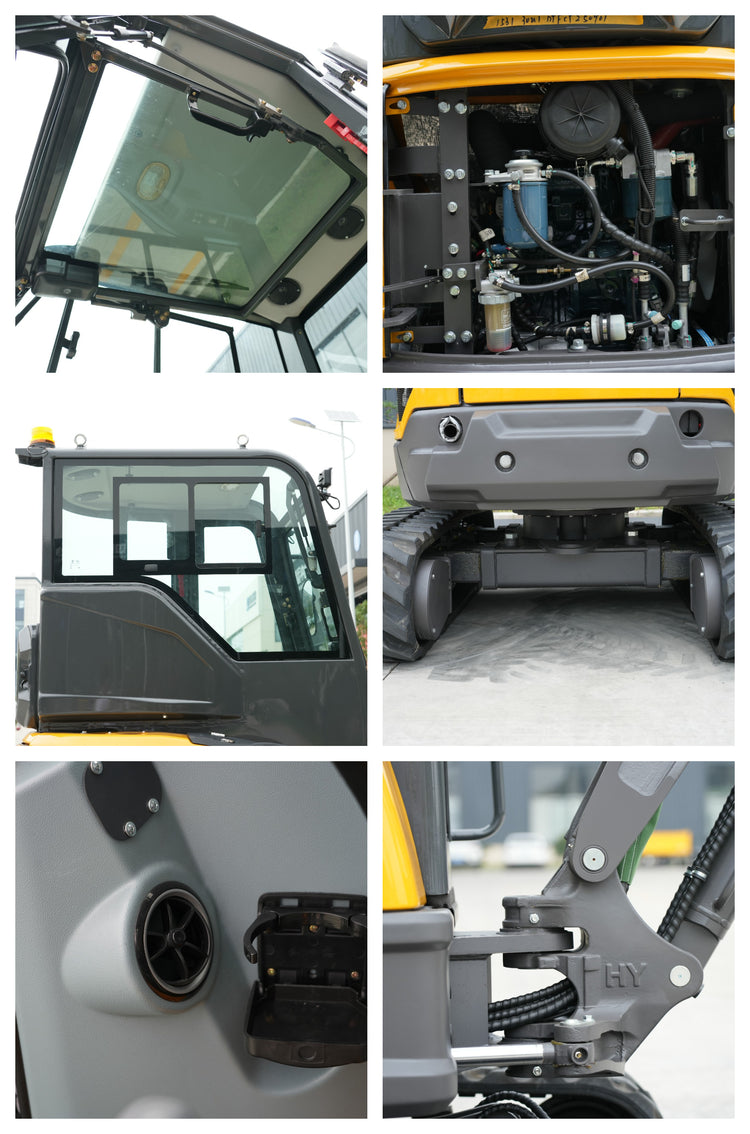

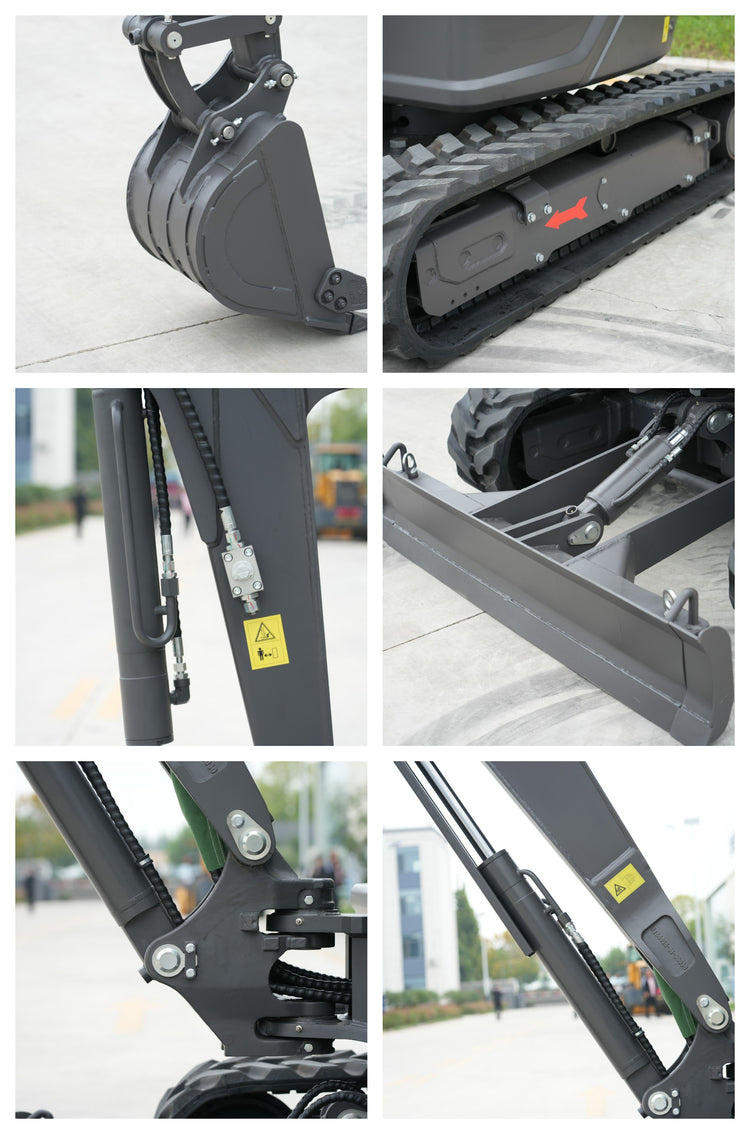

Latest Model HY-35 Features:

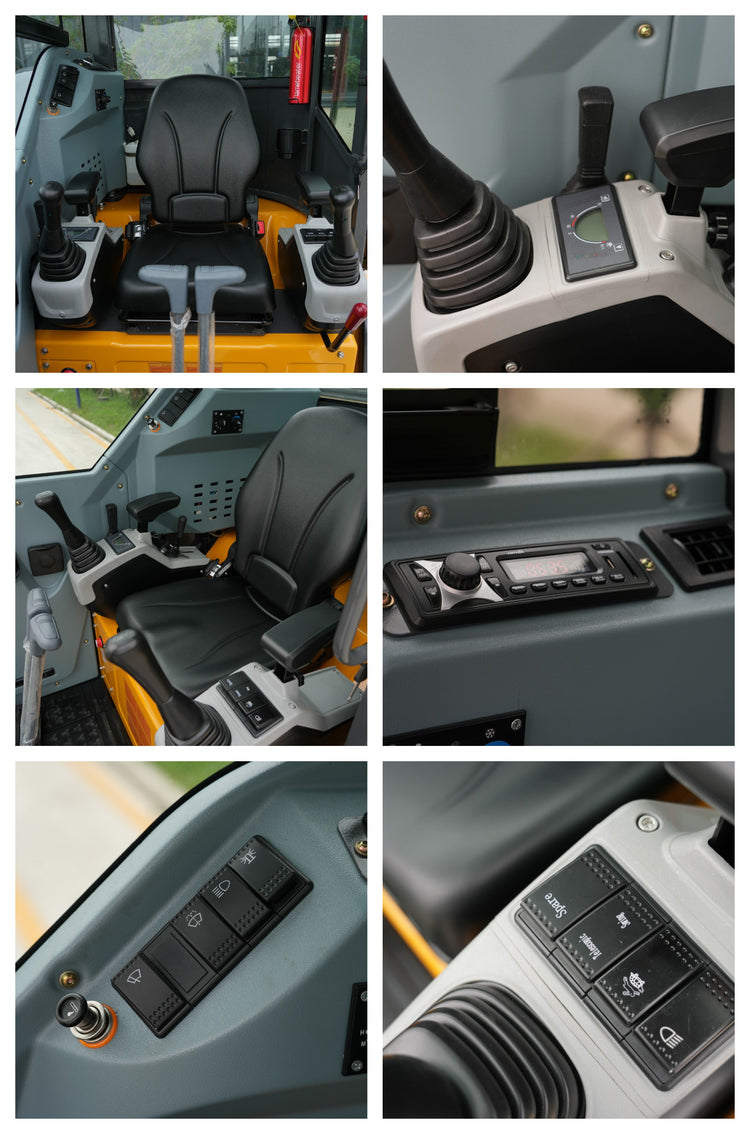

- Closed Cabin
- Independent Boom Swing
- High & Low Travel Speeds
- Hydraulic Side Piloting
- Expandable Tracks
- Boom-mounted Work Light
- Headlights
- Side Mirrors
Optional Extras:
- Kubota Engine
- Steel Tracks
- Reverse Cycle A/C
Comes With:
- Toothed Bucket: 400mm
- Toolbox - Basic Tools, Air Filters
- Operation & Service Manual
Delivery Included
Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery tab for more details.
Engine
HY35 comes with the option of either Changchai 390 or Kubota D1703 engines.
For customers looking for a powerful machine for occasional use, we recommend the C390, a powerful engine that is unmatched in value.
For customers purchasing for work and needing a machine for daily long term use, we recommend the Kubota for it's long term reliability and long engine life.
Both engines can easily be serviced and supplied with parts nationwide.
While most Huayee models are in stock and ready to be dispatched, the larger HY35 is often not, and the time from deposit to delivery is typically 8-9 weeks for most Australian & New Zealand locations.
Please contact us if you wish to check your location or check lead time before ordering.
Warranty
All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.
Parameter
Operating Weight: 3500 kg
Bucket Capacity: 0.09 m3
Bucket Width: 600 mm
Travel Motor: LIKECHUAN Double Speed
Rotary Motor: LIKECHUAN
Hydraulic Pump: Taifeng plunger pump
Multiple Directional Control Valve: Taifeng
Engine / Dimensions
Engine: CHANGCHAI 390 / KUBOTA D1703
Power: 25HP / 24HP
Cylinder Number: 3
Length*Width*Height
4485mm*1550mm*2440mm
Track Length: 2100 mm
Track Width: 300 mm
Performance Specifications
Min.Turning Radius: 2035mm
Max.Digging Depth: 2880mm
Max.Digging Height: 4600mm
Max.Dumping Height: 3175mm
Max.Vertical Digging Depth: 2305mm
Max.Digging Force: 26.5KN
