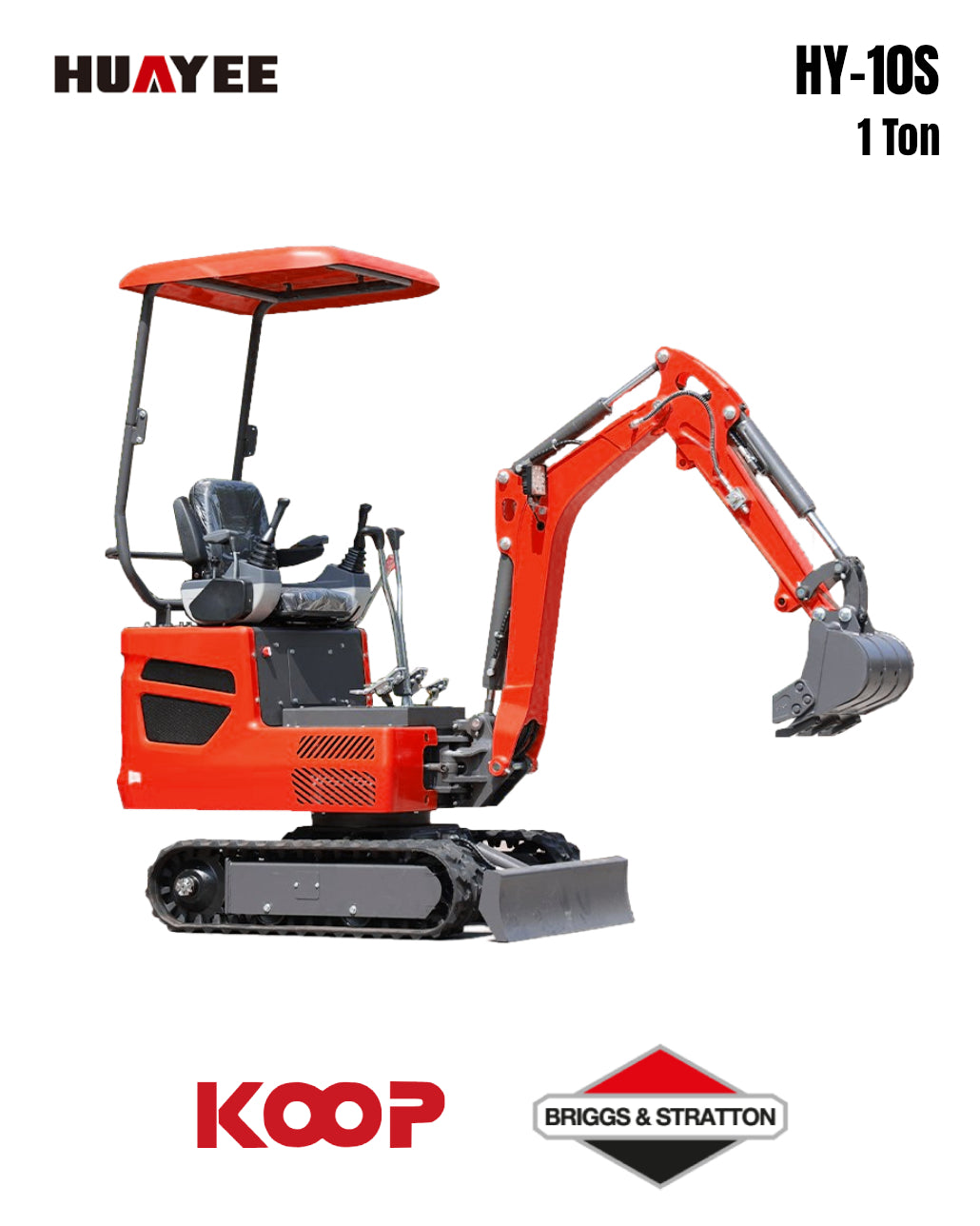

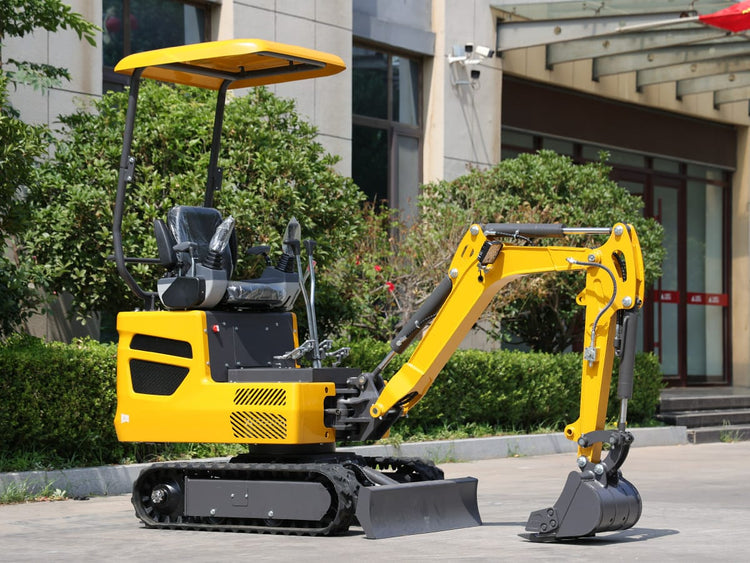

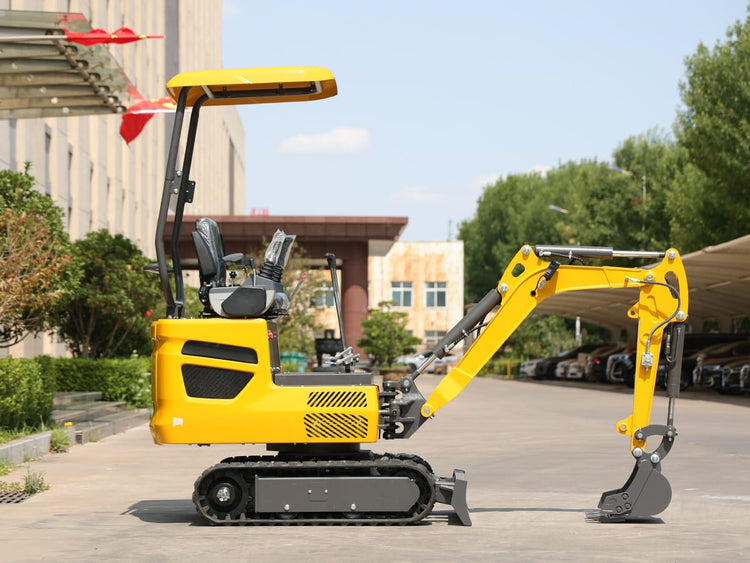

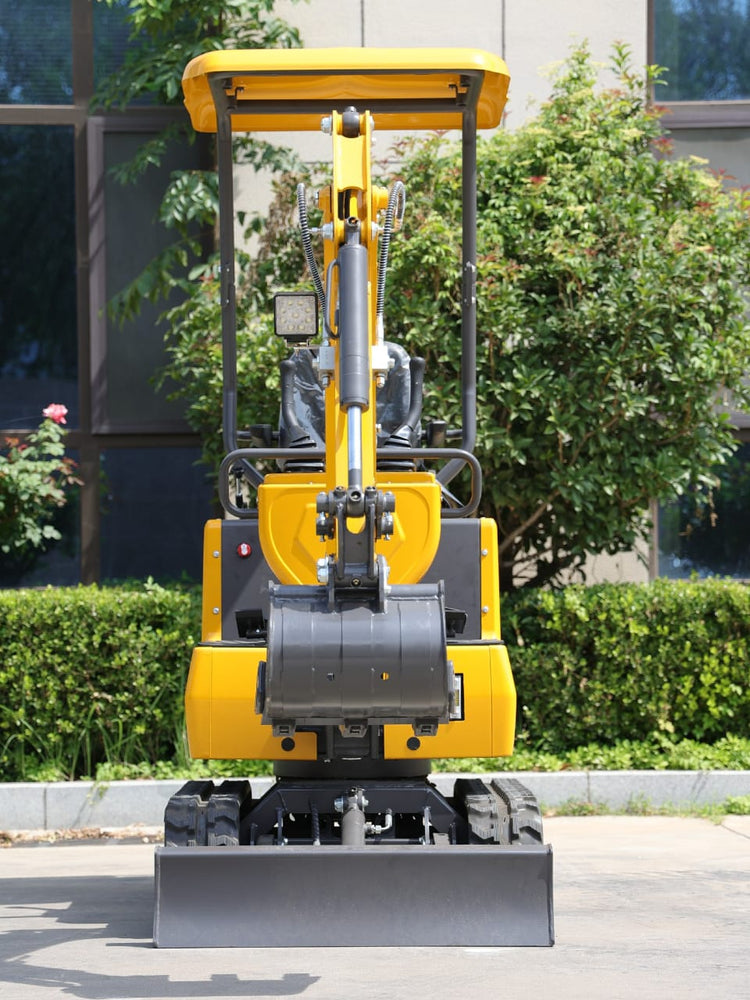

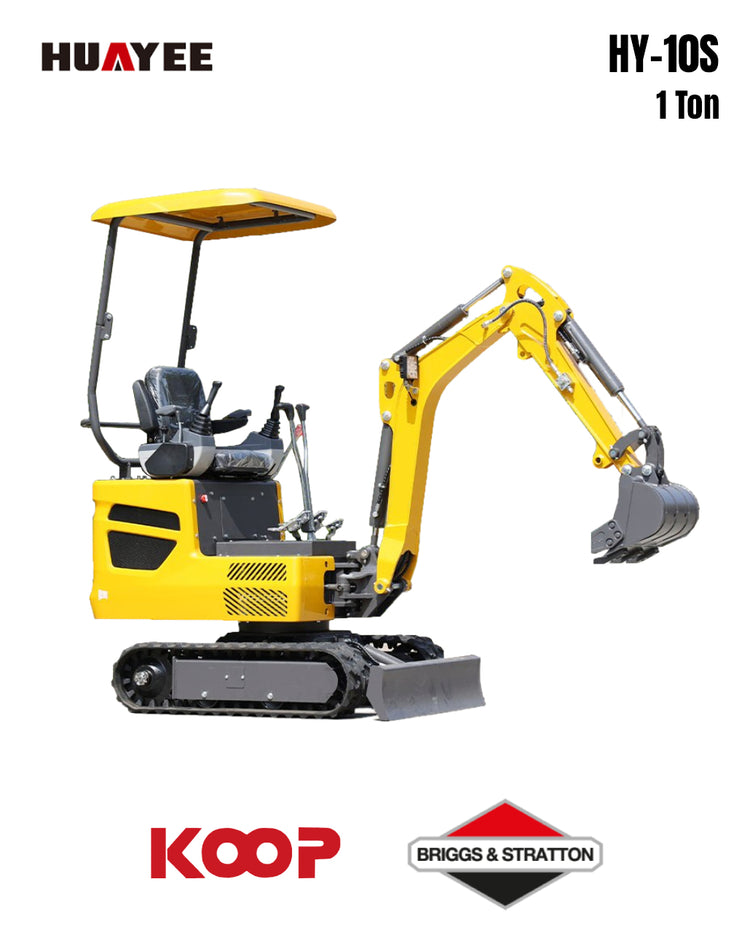

HY-10S 1 Ton Mini Excavator
At Digger World we only stock commercial-grade machines at competitive prices that don't compromise on build quality.
We are proud to be stocking the latest Huayee models that we stand behind.
The primary difference between HY10-S and HY-10F is the piloting system, with S for hydraulic side piloting and F for manual front piloting (positioning of joystick controls).
HY-10F is recommended for customers looking to save money, and HY-10S is recommended for customers who will be operating for long periods and need comfort.
Both HY-10S and HY-10F share almost identical specs but have different options due to the slightly different chassis size.

Latest Model HY-10S Features:
- Rubber Tracks

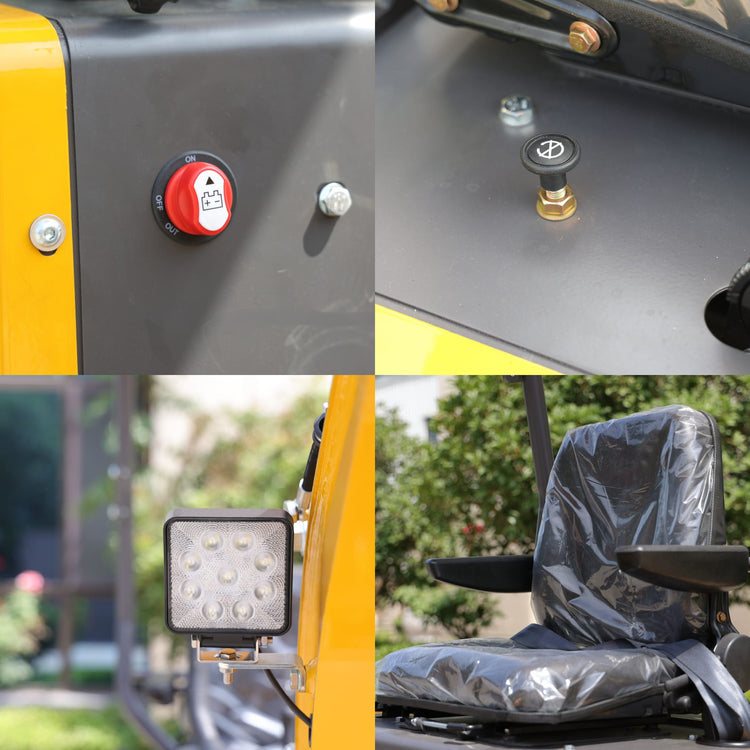

- Boom-mounted Work Light
- Heavy Duty Boom Hinge

Comes With:
- Hydraulic Side Piloting

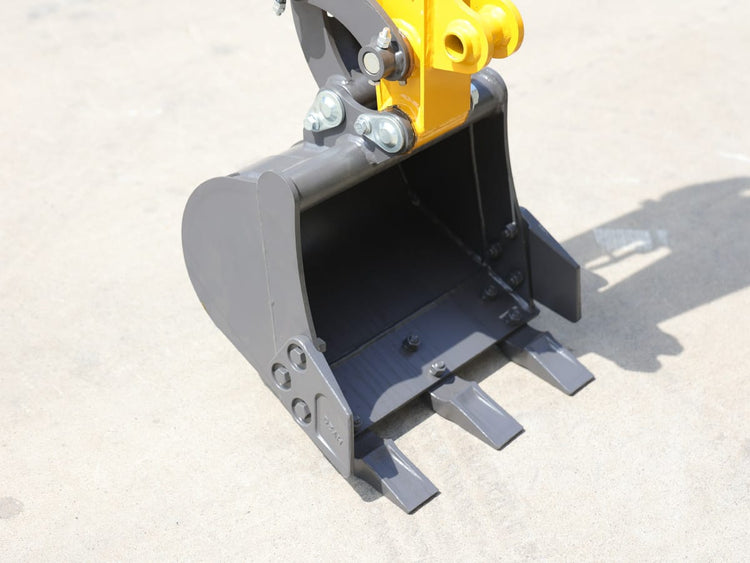

- Toothed Bucket: 400mm
- Toolbox - Basic Tools, Air Filters
- Operation & Service Manual

Optional Extras:
- Independent Boom Swing
- Expanding Tracks

Delivery Included
Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery tab for more details.

Engine
HY-10S Comes with the option of either Briggs & Stratton petrol or Koop diesel engines.
For customers concerned with noise, we recommend the Briggs & Stratton petrol, and for those looking for better fuel economy we recommend the Koop diesel. Our overall recommendation is the Briggs & Stratton petrol for smoother operation, noise and less rattling of components.
All engines can easily be serviced and supplied with parts nationwide.

Shipping Time
Huayee models are almost always in stock and can be delivered in 4-5 weeks for most metro locations in Aus & NZ.
Please contact us if you wish to check your specific location.

Warranty
All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.
Parameters
Operating Weight: 1000 kg
Bucket Capacity: 0.022m³
Chassis Width: 940mm
Chassis Ground Clearance: 400mm
Overall Height: 2310mm
Transport Length: 2345/3020mm
Track Length: 1235mm
Track Width: 180mm
Maximum Grade Ability: 30°

Engine Dimensions
Model: B&S XR2100 / Koop 192FA
Power: 13.5HP / 10HP
Volume Of Fuel Tank: 5.5L

Performance Specifications
Minimum Slewing Radius: 1490mm
Max. Digging Height: 2490mm
Max. Dumping Height: 1745mm
Max. Digging Depth: 1725mm
Max. Digging Radius: 3030mm
Max. Vertical Digging Depth: 1655mm
