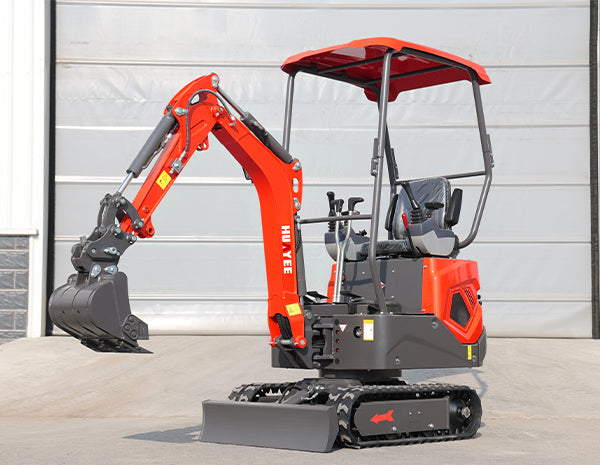

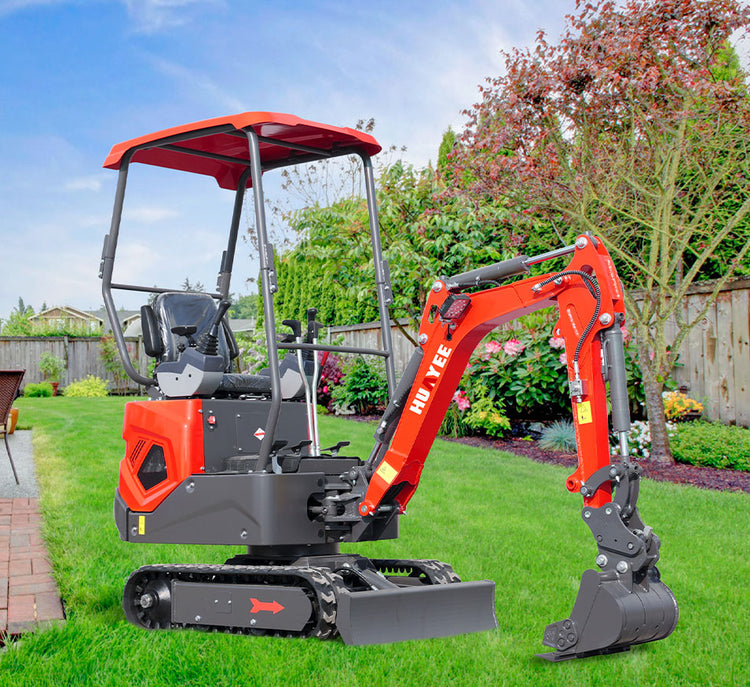

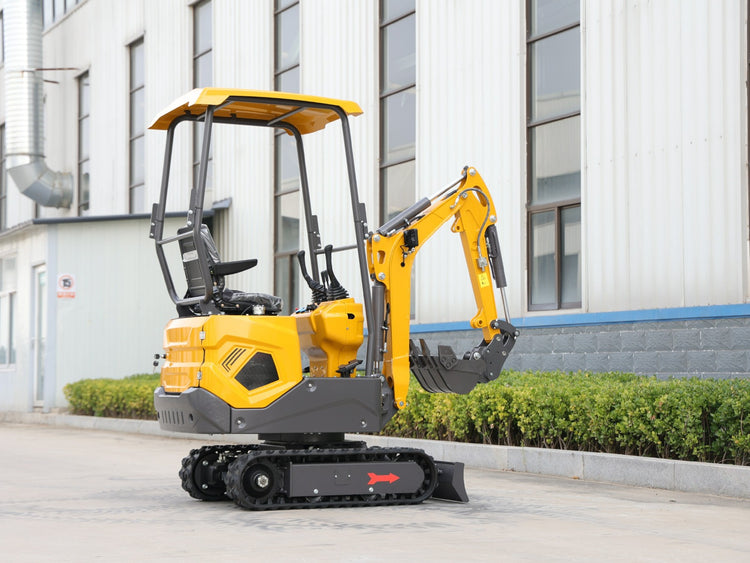

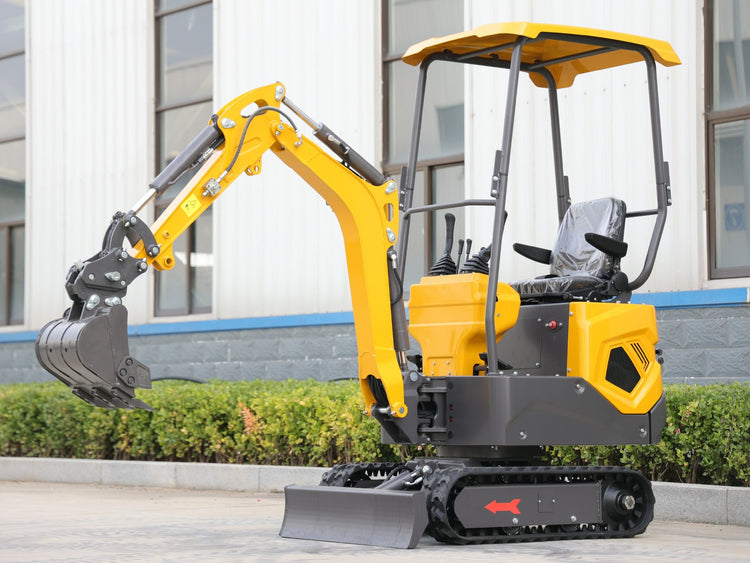

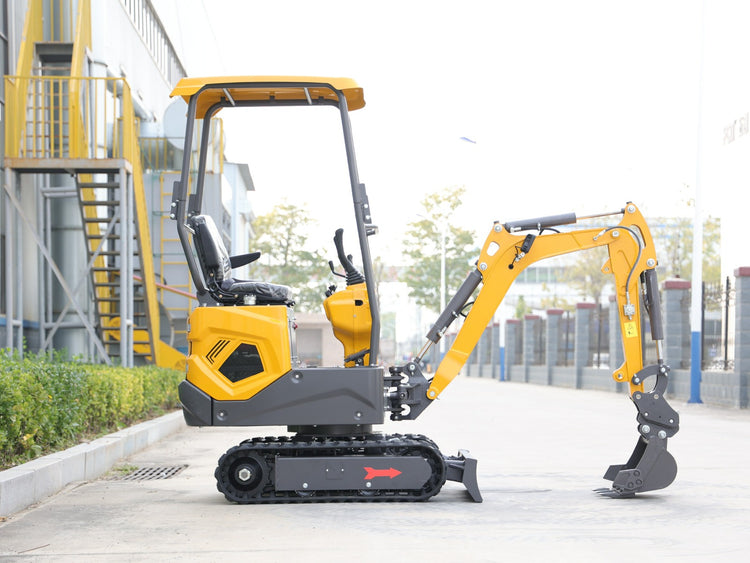

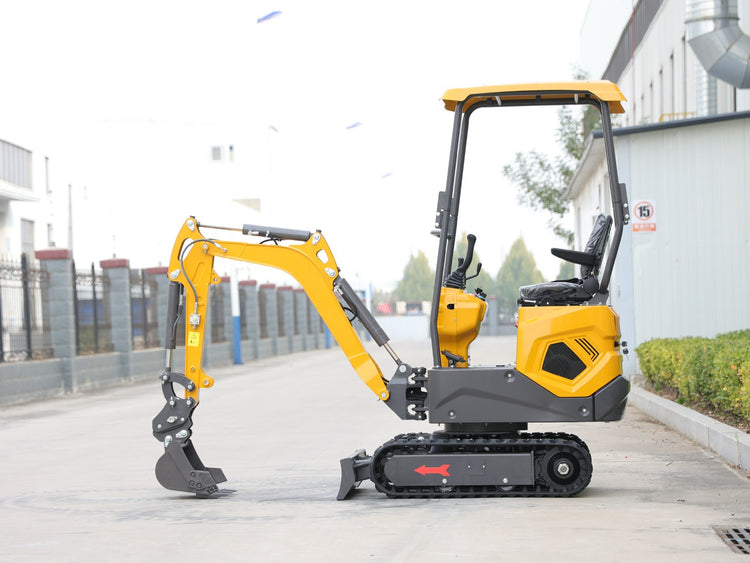

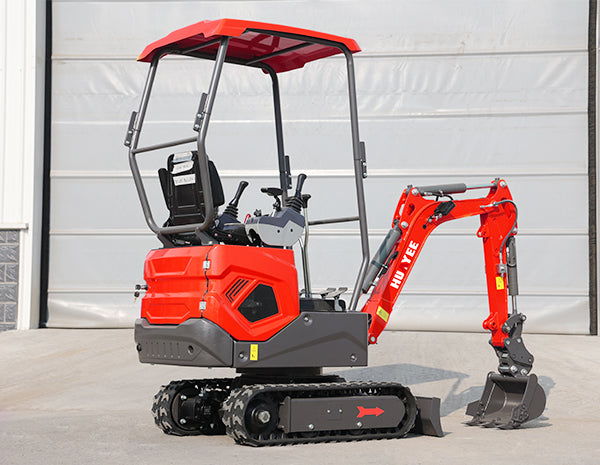

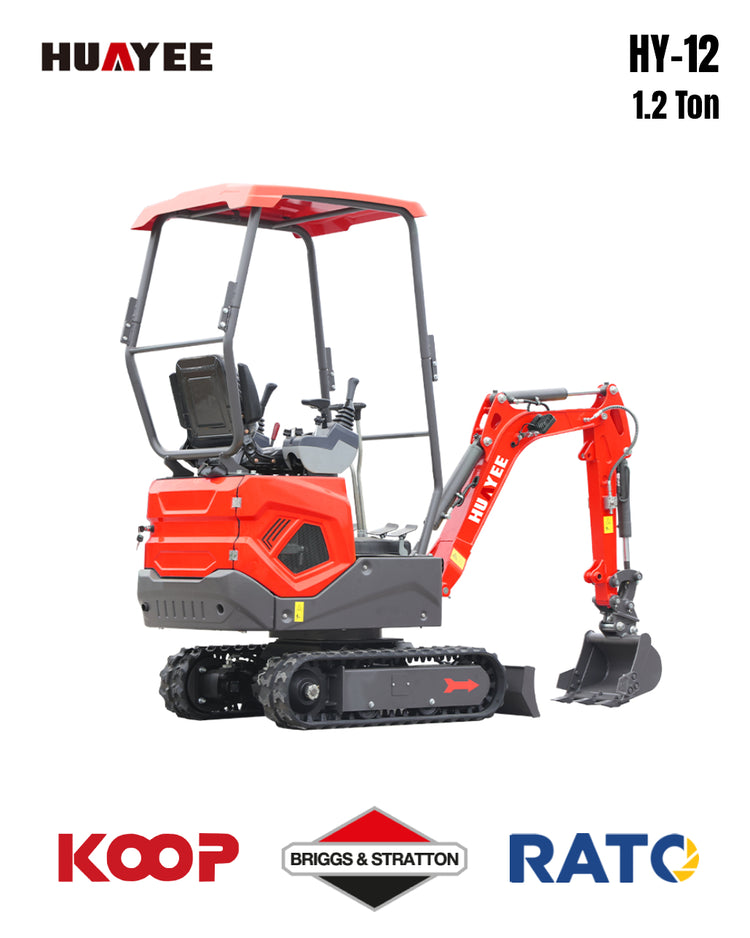

HY-12 1.2 Ton Mini Excavator
At Digger World we only stock commercial-grade machines at competitive prices that don't compromise on build quality. We are proud to be stocking the latest Huayee models that we stand behind.

Latest Model HY-12 Features:
- Independent Boom Swing
- Rubber Tracks
- Boom-mounted Work Light

Comes With:
- Toothed Bucket: 400mm
- Toolbox - Basic Tools, Air Filters
- Operation & Service Manual

Optional Extras:
- Hydraulic Side Piloting
- Expanding Tracks

Delivery Included
Delivery is the Digger World difference, we include delivery wherever we can.
If you are in our free delivery zones then you will pay nothing more than our machine prices.
See delivery tab for more details.

Engine

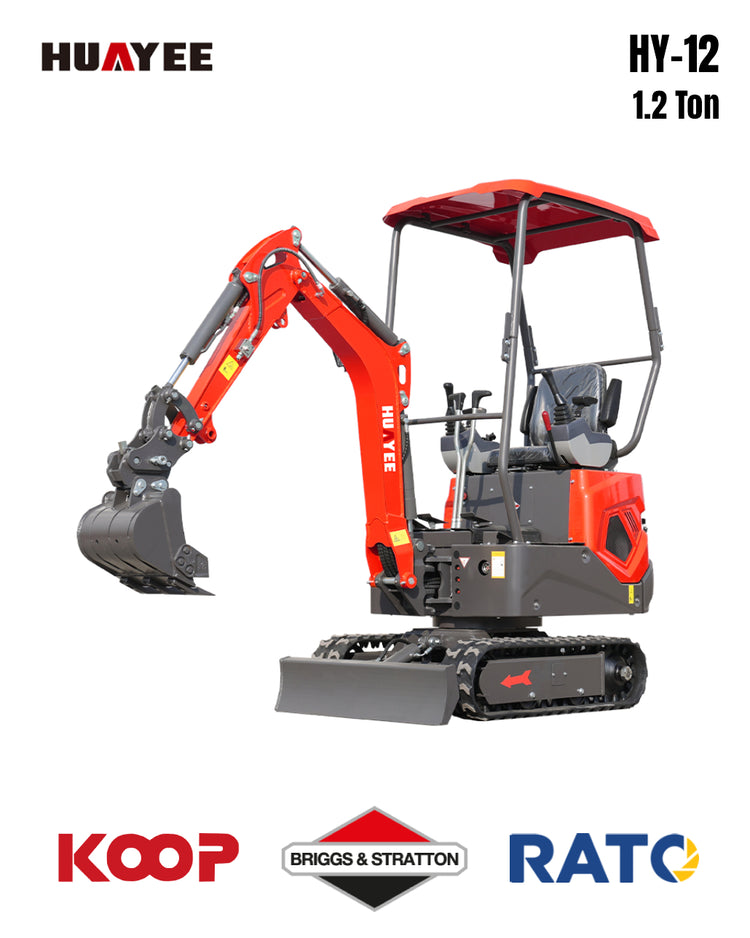

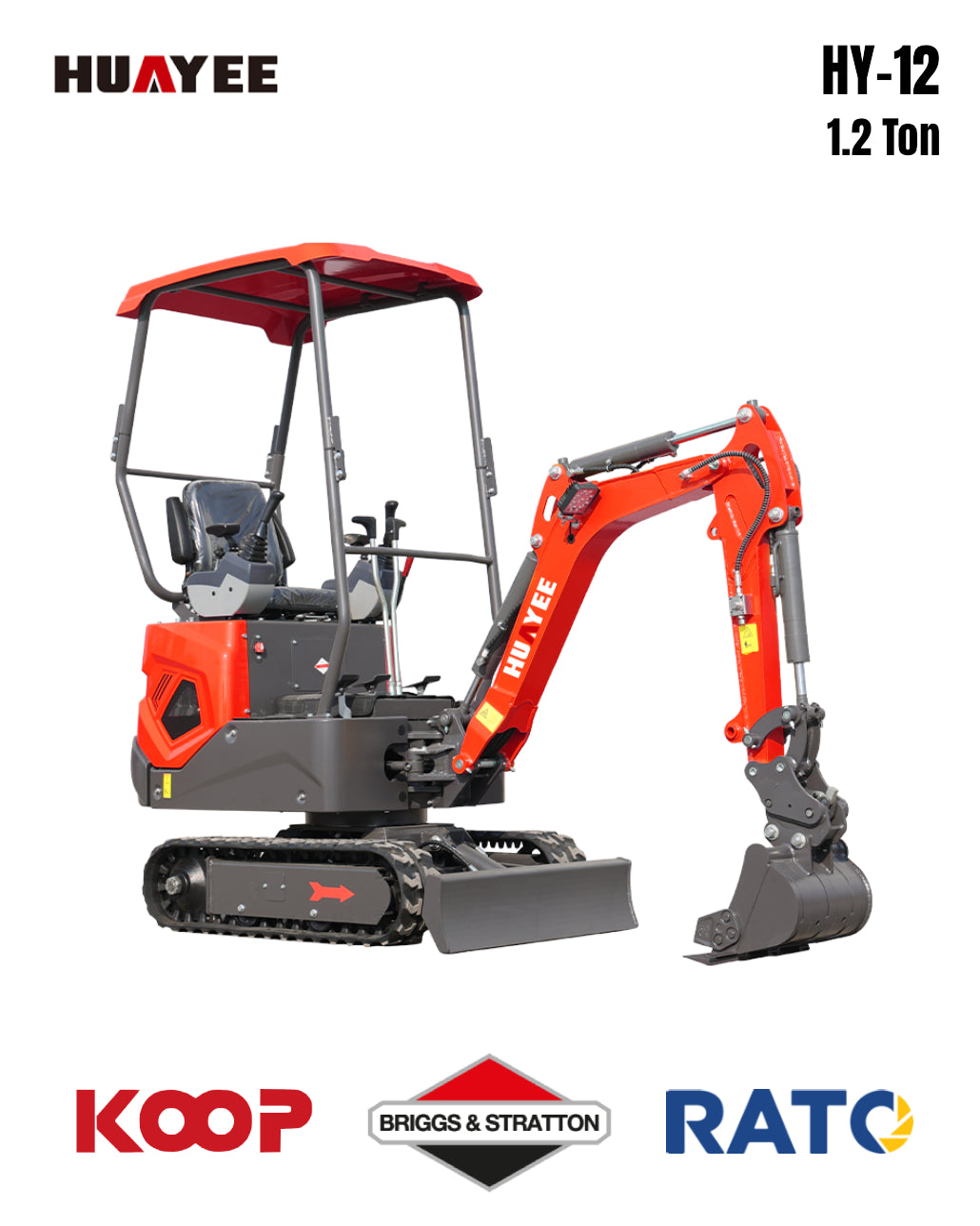

HY-12 Comes with the option of either Rato or Briggs & Stratton petrol engines, or Koop diesel engine.
For customers concerned with noise, we recommend either the Rato or Briggs & Stratton petrol engines, and for those looking for better fuel economy we recommend the Koop diesel.
All engines can easily be serviced and supplied with parts nationwide.

Shipping Time
Huayee models are almost always in stock and can be delivered in 4-5 weeks for most metro locations in Aus & NZ.
Please contact us if you wish to check your specific location.

Warranty
All Digger World machines are backed by our 12-months parts warranty and lifetime after-sale support and parts-sourcing.
Each machine comes with an operational manual with basic service instructions.
For breakdowns or any larger issues, we can point you in the direction of suitable mechanics nationwide.
Overall Size
Overall length (when transported): 2870 mm
Overall width (transport/work): 930 mm
Overall height (with/without roof): 2285(2030)mm
Bulldozer width: 937 mm
Bulldozer height: 210 mm
Track center distance: 746 mm
Standard track shoe width: 180 mm
Platform ground clearance: 405 mm
Standard Bucket Width: 400mm
Track length: 1200mm
Scope Of Work
Maximum digging height: 2490 mm
Maximum dumping height: 1745 mm
Maximum digging depth: 1725 mm
Maximum vertical digging depth: 1655 mm
Maximum digging radius: 3030 mm
Minimum turning radius: 1490 mm
Maximum digging ground distance: 2940 mm
Maximum dozing height: 170 mm
deepest dozing height: 240 mm
Basic Parameters
Operating Weight: 1200 kg
Bucket capacity: 0.022 m3
Working device form: Backhoe
Engine
Model: RATO 420 / B&S 25T2 / KOOP 192FA
Power: 15HP / 13.5HP / 10HP
Maximum torque: 25/2500  N.m/r/min
